Release Info
| Catalog ID | HVC-BS |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 21, 1984 |
| Publisher | Nintendo |
| Developer | Hudson Soft |
| Players | 1 |
| Peripherals | Family Keyboard,Famicom Controller |

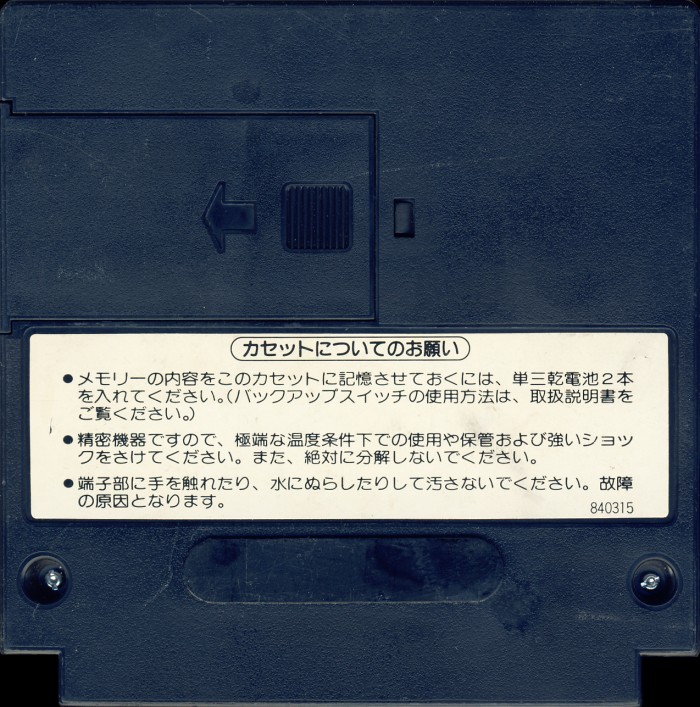

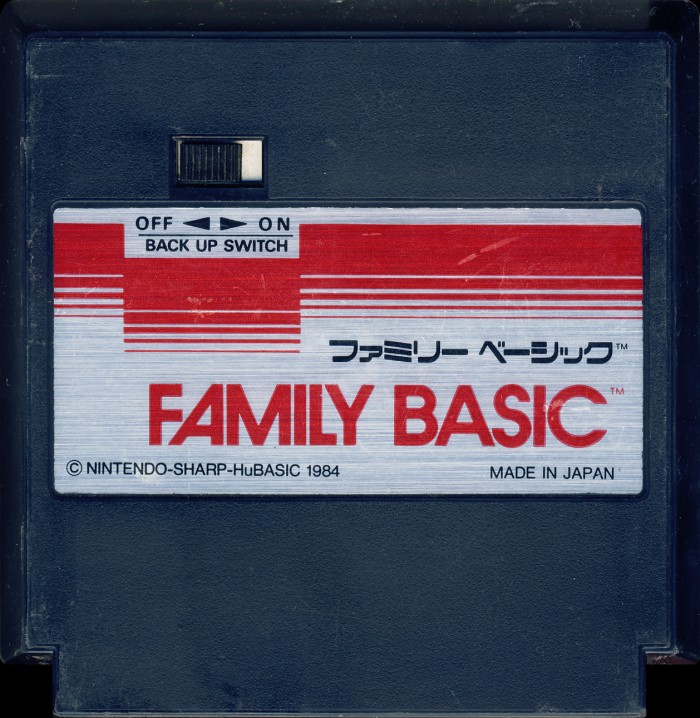

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Family Basic |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | FB-R-128-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8431 - 8442 (3) |
| Est First Run | August 1984 |
| PCB Class | HVC-FAMILYBASIC |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | Yes |
| WRAM | 2 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx20 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-FB1-1 A | 16 KB | 12B97208 | 2 |
| PRG1 | HVC-FB1-1 B | 16 KB | B099376C | 2 |
| CHR0 | HVC-FB1-0 C | 8 KB | 11848B93 | 4 |
| N/A | ROMs Combined | 40 KB | F7606810 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 WORKING RAM | Fujitsu | MB8416A-15-SK | SRAM 2 KB | SDIP-24 | 8417 G49 | 8417 | |
| IC2 PROGRAM ROM-A 128K | Ricoh | RP2D129 0531 | Mask ROM 16 KB | DIP-28 | 4H4 38 | 8435 | |
| IC3 PROGRAM ROM-B 128K | Ricoh | RP2D129 0532 | Mask ROM 16 KB | DIP-28 | 4H4 33 | 8435 | |
| IC4 LS20 | Sharp | LR74HC20 | 74-20 Series | DIP-14 | 46D 5 | 8426 | |
| IC5 CHARACTER ROM-C 64K | Ricoh | RP2D68 0047 | Mask ROM 8 KB | DIP-28 | 4J1 42 | 8436 |
