Release Info
| Catalog ID | HVC-VT |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 21, 1985 |
| Publisher | Nintendo |
| Developer | Hudson Soft |
| Players | 1 |
| Peripherals | Family Keyboard,Famicom Controller |

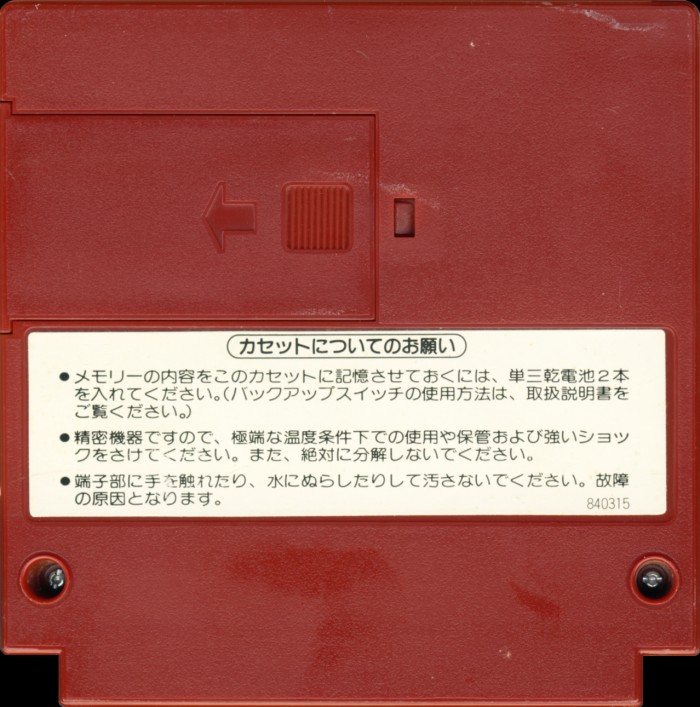

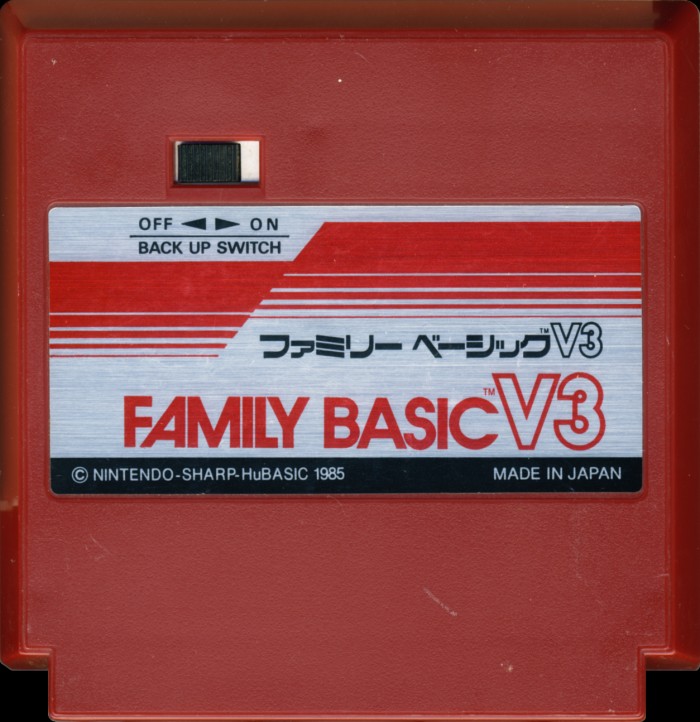

Cart Properties
| Cart Producer | |
|---|---|
| Color | Maroon |
| Form Factor | Family Basic |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 08 |

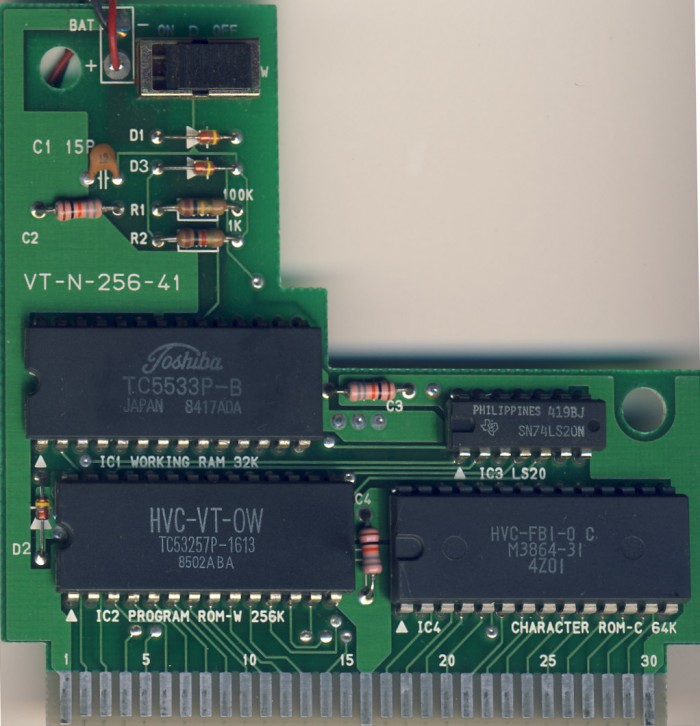

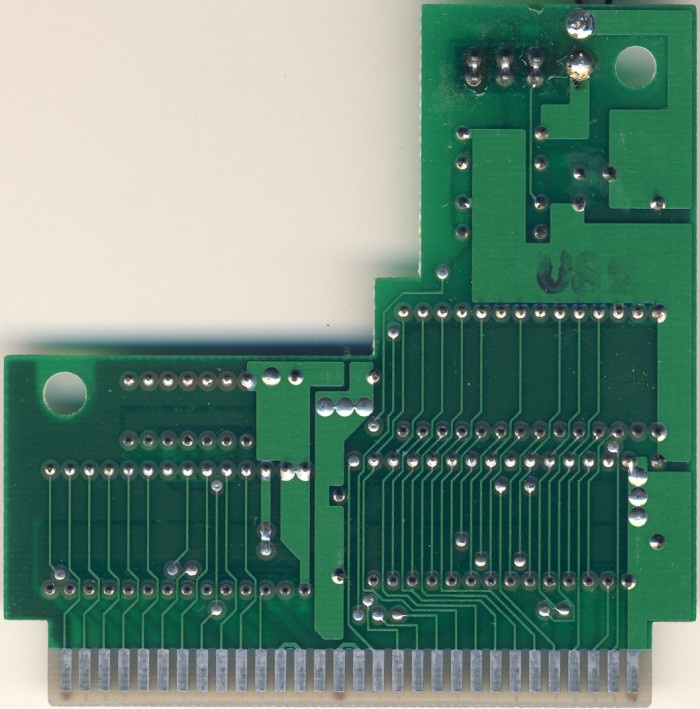

PCB Properties
| Name | VT-N-256-41 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8502 |
| Est First Run | January 1985 |
| PCB Class | HVC-FAMILYBASIC |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | Yes |
| WRAM | 4 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx20 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-VT-0W | 32 KB | 3AAEED3F | 1 |
| CHR0 | HVC-FB1-0 C | 8 KB | 11848B93 | 4 |
| N/A | ROMs Combined | 40 KB | B2530AFC | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 WORKING RAM 32K | Toshiba | TC5533P-B | SRAM 4 KB | DIP-28 | 8417 ADA | 8417 | |
| IC2 PROGRAM ROM-W 256K | Toshiba | TC53257P 1613 | Mask ROM 32 KB | DIP-28 | 8502 ABA | 8502 | |
| IC3 LS20 | Texas Instruments | SN74LS20N | 74-20 Series | DIP-14 | 419 BJ | 8419 | |
| IC4 CHARACTER ROM-C 64K | OKI | M3864 31 | Mask ROM 8 KB | DIP-28 | 4Z 01 | 8449 |
