Release Info
| Catalog ID | ATH-4T |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 12, 1991 |
| Publisher | Athena |
| Developer | Visco |
| Players | 2 |
| Peripherals | Famicom Controller |

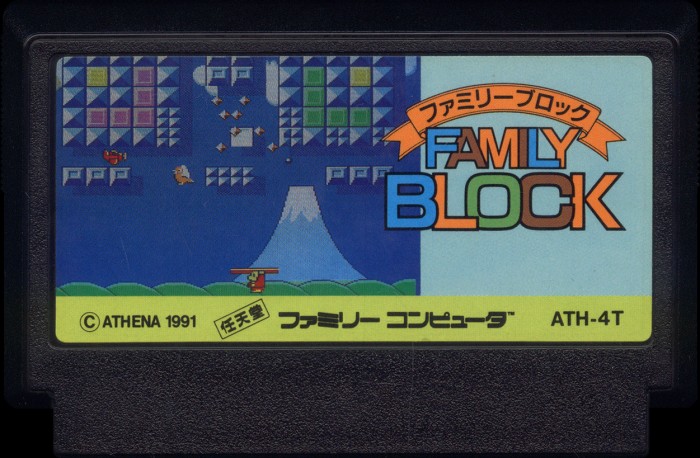

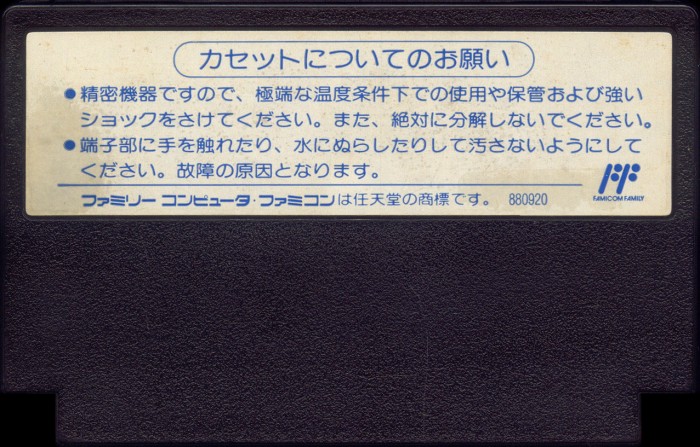

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | ATH-4T |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 12 |

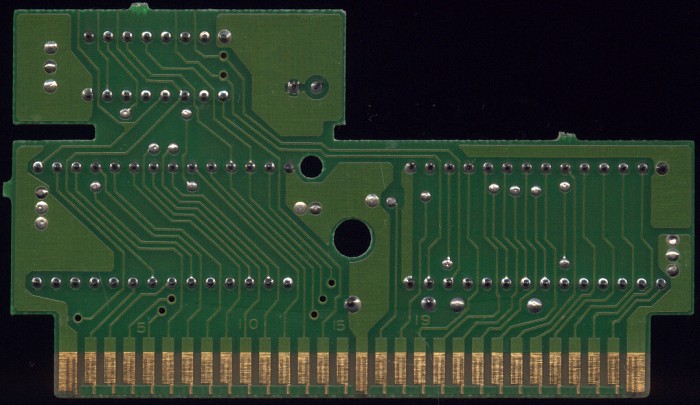

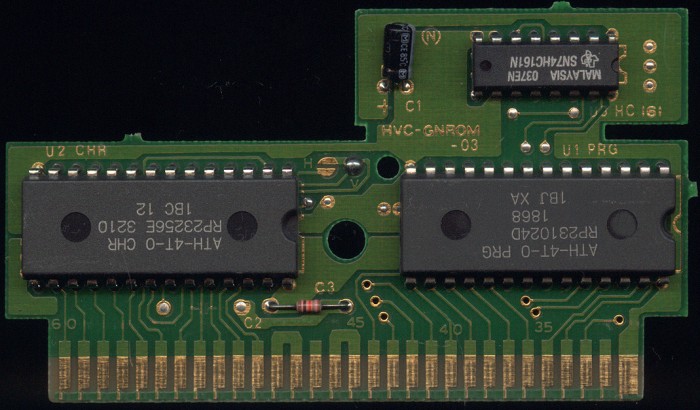

PCB Properties
| Name | HVC-GNROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9107 |
| Est First Run | February 1991 |
| PCB Class | HVC-GNROM |
| iNES Mapper | 66 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | ATH-4T-0 PRG | 128 KB | A3A6184C | 0 |
| CHR0 | ATH-4T-0 CHR | 32 KB | 22DBB006 | 0 |
| N/A | ROMs Combined | 160 KB | 0BB5B3A0 | 0 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Ricoh | RP231024D 1868 | Mask ROM 128 KB | DIP-28 | 1BJ XA | 9107 | |
| CHR ROM | Ricoh | RP23256E 3210 | Mask ROM 32 KB | DIP-28 | 1BC 12 | 9106 | |
| LS161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 037 EN | 9037 |
