Release Info
| Catalog ID | NES-VU-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 1990 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

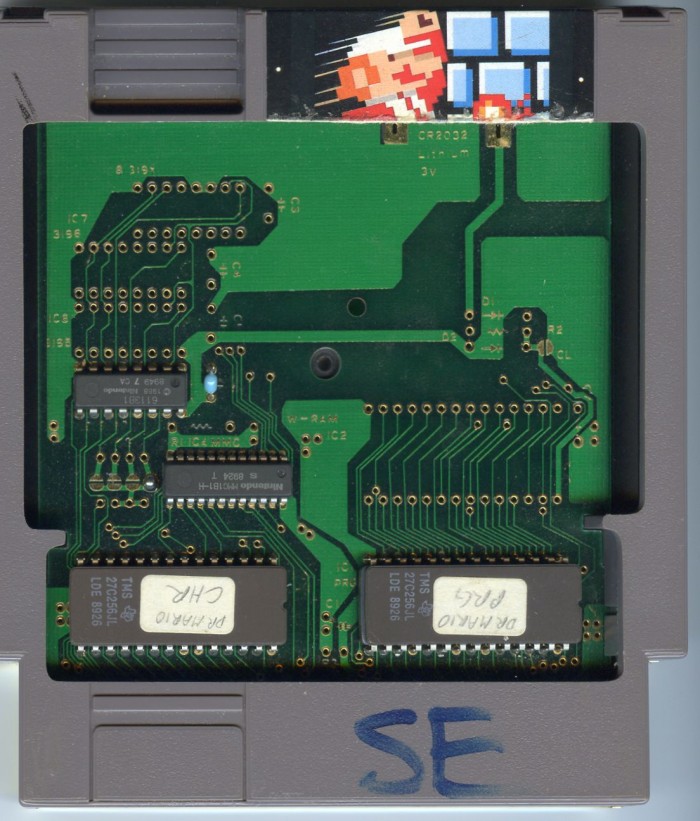

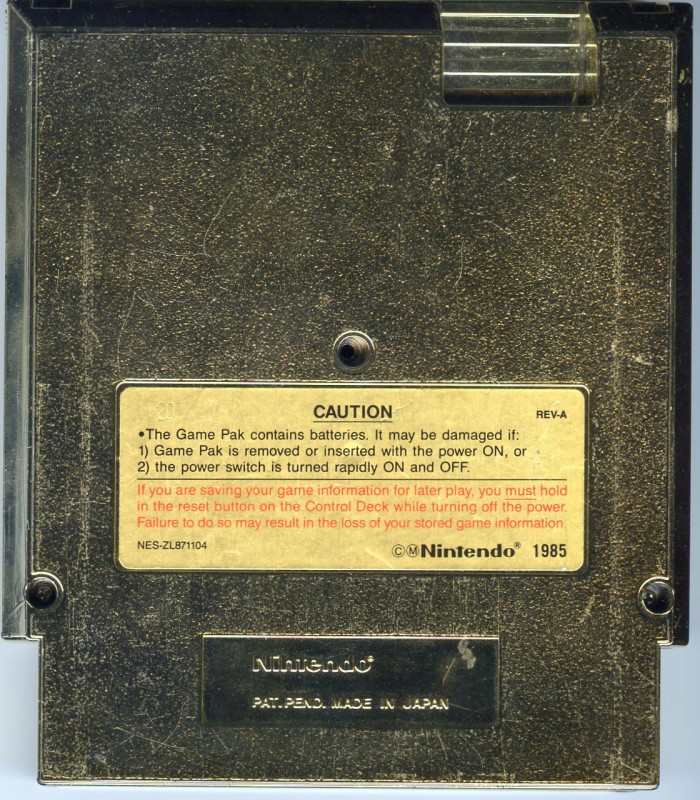

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code | 20 |

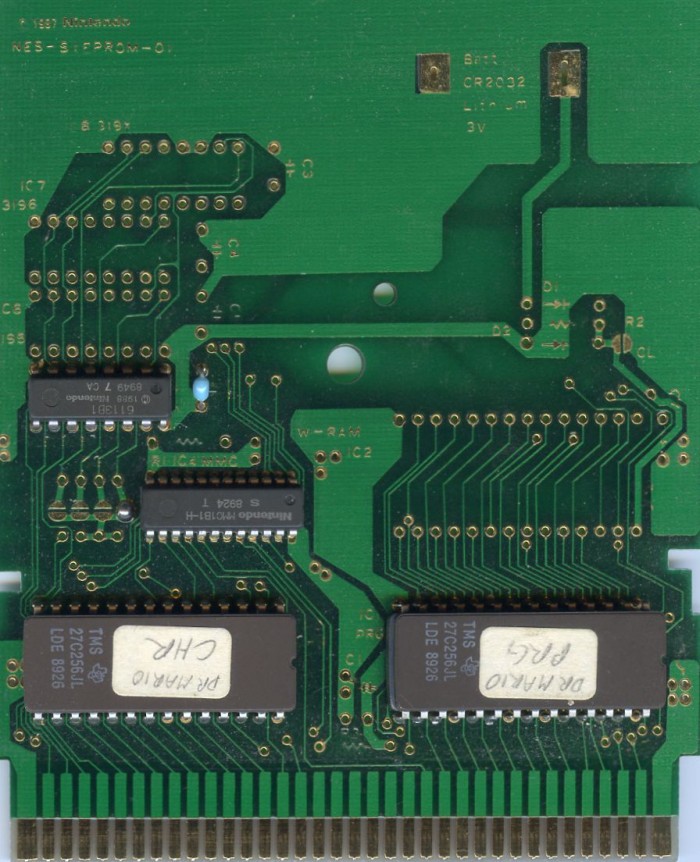

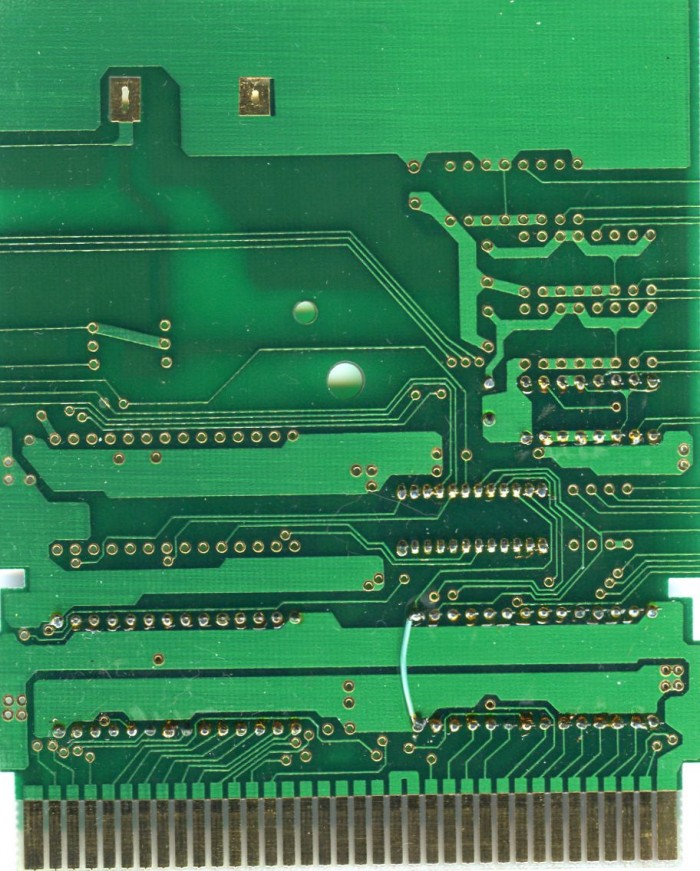

PCB Properties
| Name | NES-SIEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9032 - 9118 (6) |
| Est First Run | August 1990 |
| PCB Class | NES-SIEPROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B1-H |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | DR MARIO PRG | 32 KB | 71A3069B | 1 |
| CHR0 | DR MARIO CHR | 32 KB | CD4C755D | 1 |
| N/A | ROMs Combined | 64 KB | C49FCAB4 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG | Texas Instruments | TMS27C256JL | UV EPROM 32 KB | DIP-28 | 8926 LDE | 8926 | |
| IC3 CHR | Texas Instruments | TMS27C256JL | UV EPROM 32 KB | DIP-28 | 8926 LDE | 8926 | |
| IC4 MMC | Sharp | MMC1B1-H | Nintendo MMC1 | DIP-24 | 8924 T | 8924 | |
| IC5 3193 | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8949 7 CA | 8949 |
