Release Info
| Catalog ID | NES-VU-SCN |
|---|---|
| Region | Scandinavia (PAL-B) |
| Class | Licensed |
| Release Date | June 27, 1991 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

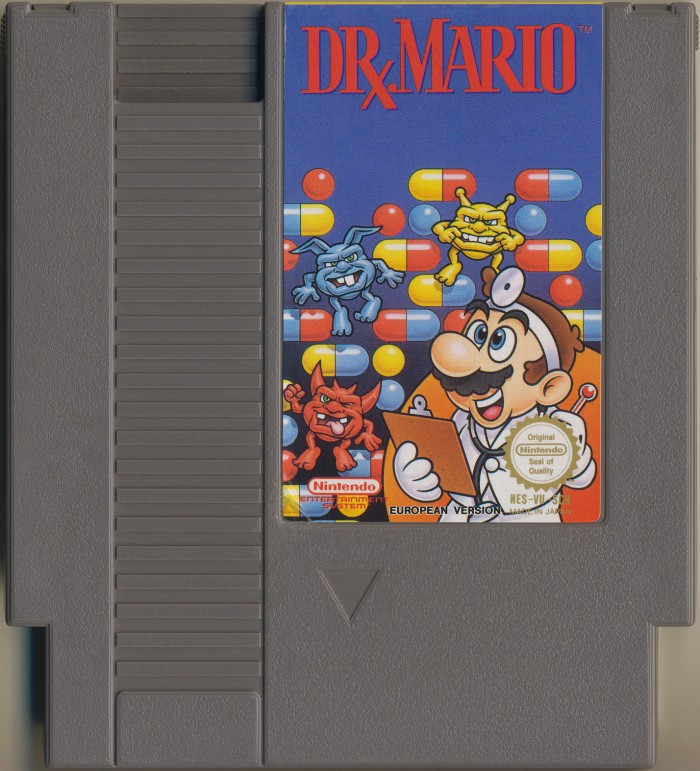

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-VU-SCN |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

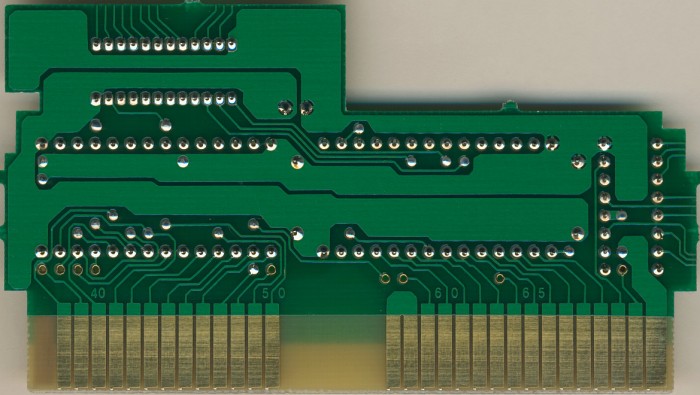

PCB Properties
| Name | NES-SEROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9111 - 9113 (2) |
| Est First Run | March 1991 |
| PCB Class | NES-SEROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-VU-0 PRG | 32 KB | 6A80DE01 | 4 |
| CHR0 | NES-VU-0 CHR | 32 KB | 064D4AB3 | 21 |
| N/A | ROMs Combined | 64 KB | 9735D267 | 4 |

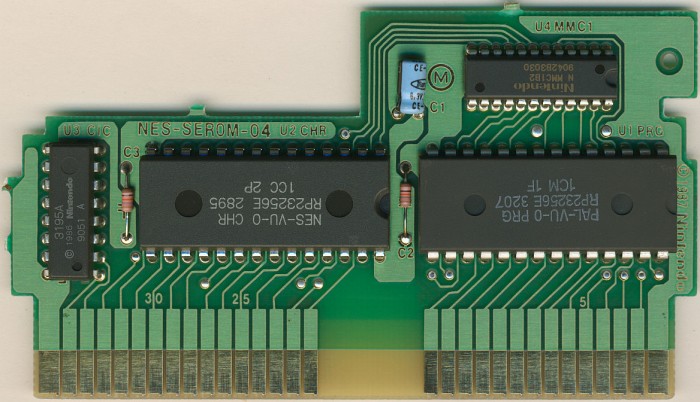

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 3207 | Mask ROM 32 KB | DIP-28 | 1CM 1F | 9111 | |
| U2 CHR | Ricoh | RP23256E 2895 | Mask ROM 32 KB | DIP-28 | 1CC 2P | 9110 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9051 A | 9051 | |
| U4 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9042 B3030 | 9042 |
