Release Info
| Catalog ID | NES-VU-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 1990 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

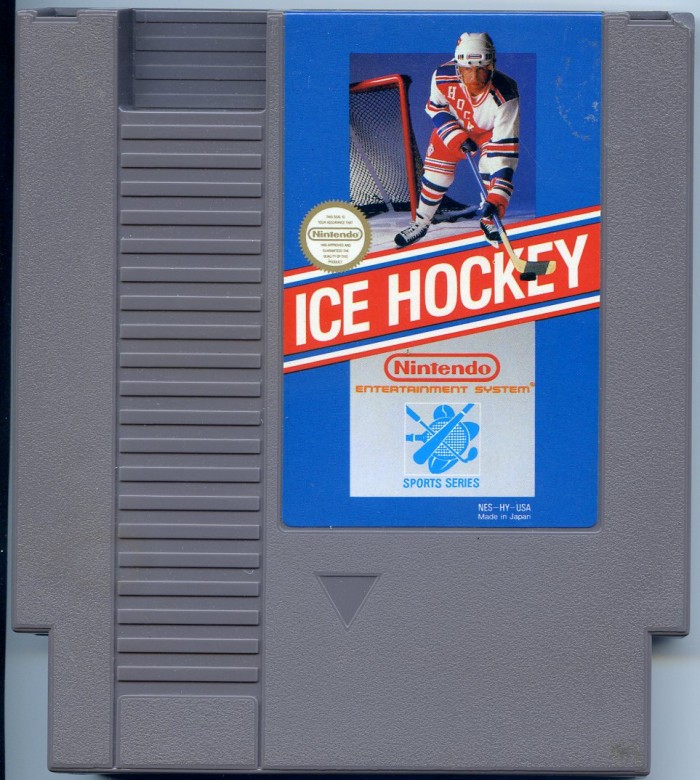

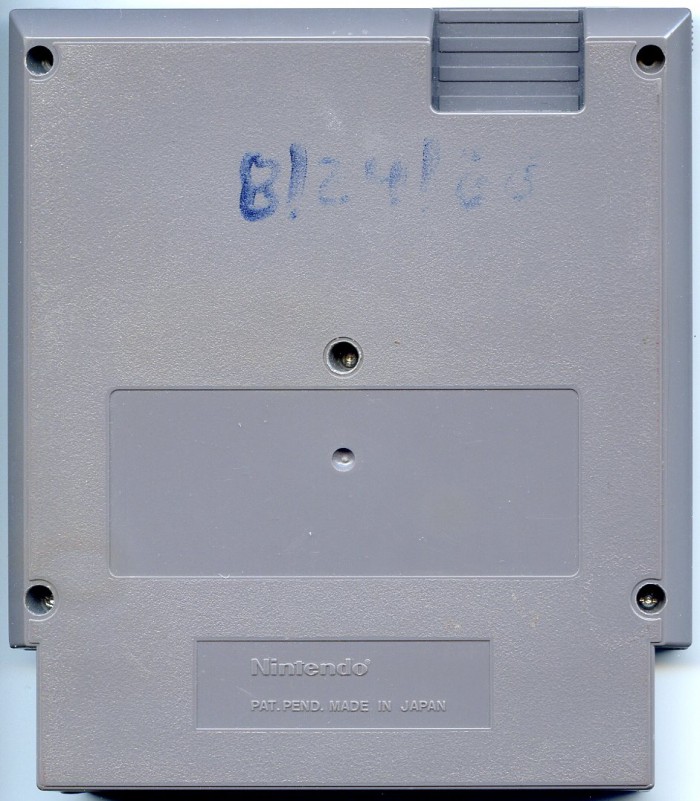

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

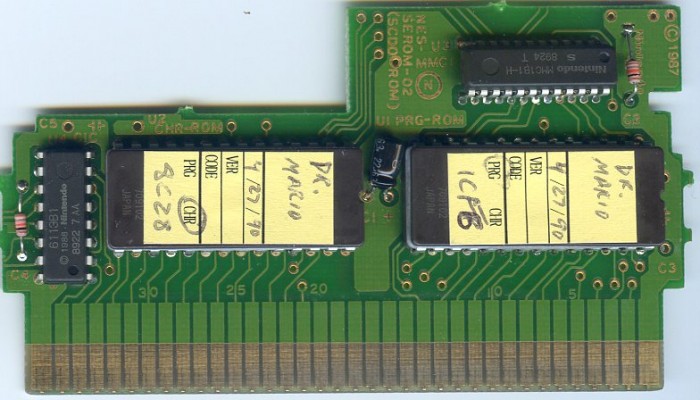

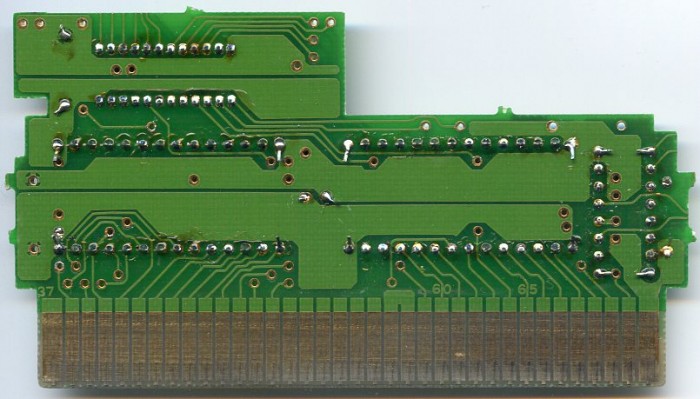

PCB Properties
| Name | NES-SEROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9032 - 9118 (6) |
| Est First Run | August 1990 |
| PCB Class | NES-SEROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B1-H |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | DR. MARIO 4/27/90 PRG 1CFB | 32 KB | A1FB8E8A | 1 |
| CHR0 | DR. MARIO 4/27/90 CHR 8C28 | 32 KB | 0059E2AB | 1 |
| N/A | ROMs Combined | 64 KB | 6FD69F34 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | __Unknown | UV EPROM 32 KB | DIP-28 | ||||
| U2 CHR-ROM | __Unknown | UV EPROM 32 KB | DIP-28 | ||||
| U3 MMC1 | Sharp | MMC1B1-H | Nintendo MMC1 | DIP-24 | 8924 T | 8924 | |
| U4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8922 7 AA | 8922 |
