Release Info
| Catalog ID | UNR-EF-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Tradewest |
| Developer | Beam Software |
| Players | 3 |
| Peripherals | NES Controller |

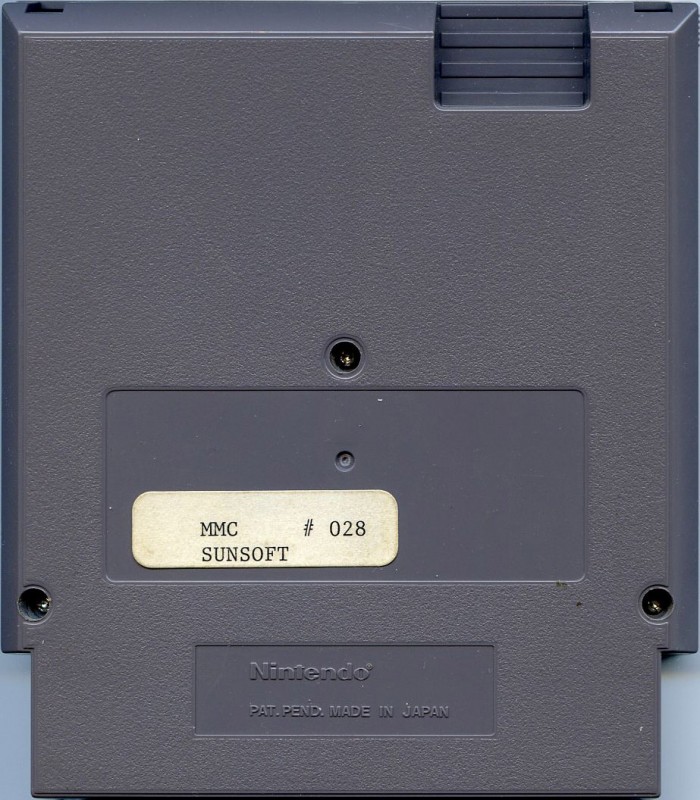

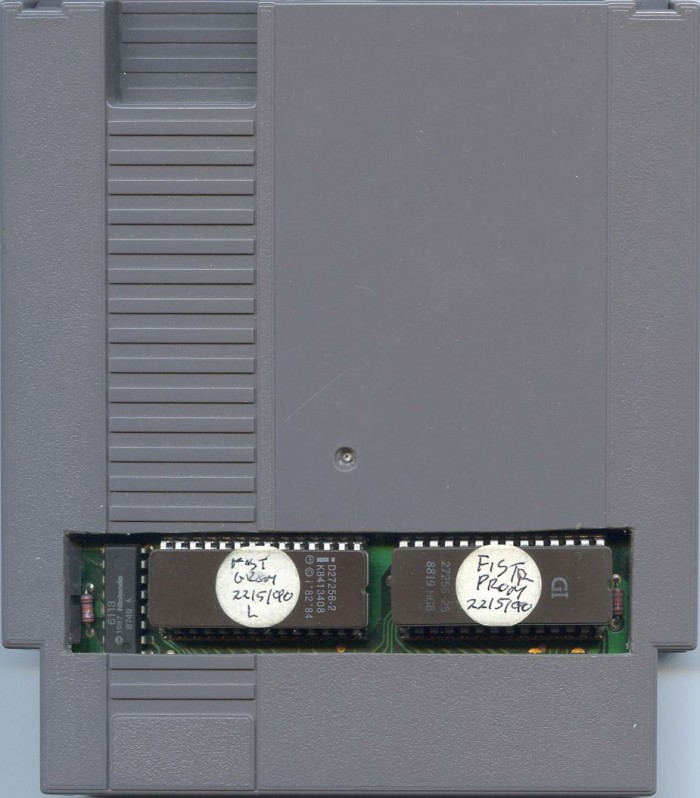

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

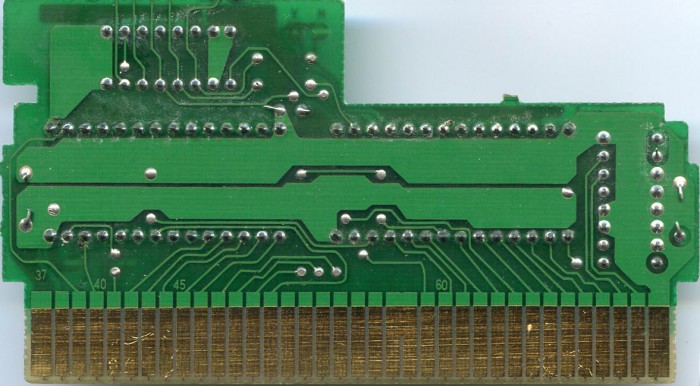

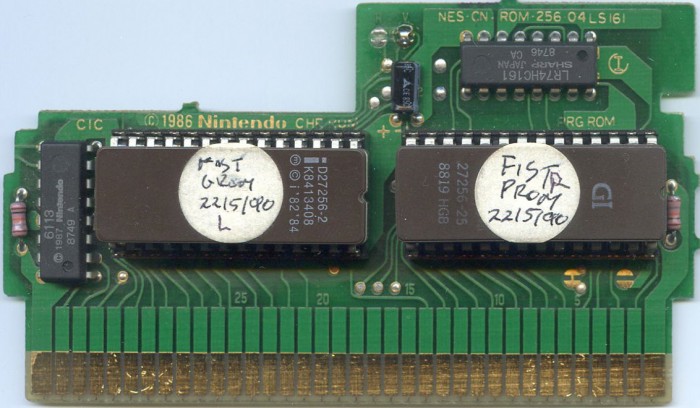

PCB Properties
| Name | NES-CN-ROM-256-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | FIST PROM 22/5/90 | 32 KB | 1C63E706 | 1 |
| CHR0 | FIST GROM 22/5/90 | 32 KB | 4A4DCC7E | 1 |
| N/A | ROMs Combined | 64 KB | 1C31DD60 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | General Instrument | 27256-25 | UV EPROM 32 KB | DIP-28 | 8819 HG8 | 8819 | |
| CHR ROM | Intel | D27256-2 | UV EPROM 32 KB | DIP-28 | 841 K | 8841 | |
| CIC | Sharp | 6113 | Nintendo CIC | DIP-16 | 8749 A | 8749 | |
| LS161 | Sharp | LR74HC161 | 74-161 Series | DIP-16 | 8746 CA | 8746 |
