Release Info
| Catalog ID | VAR-4E |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 27, 1991 |
| Publisher | Varie |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | Famicom Controller |

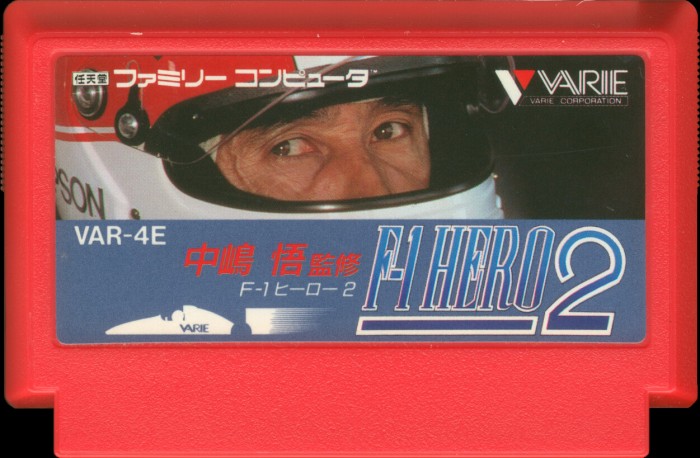

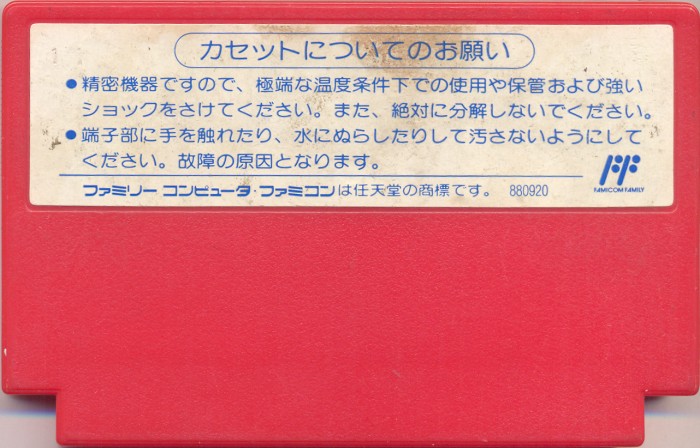

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Red |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | VAR-4E |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

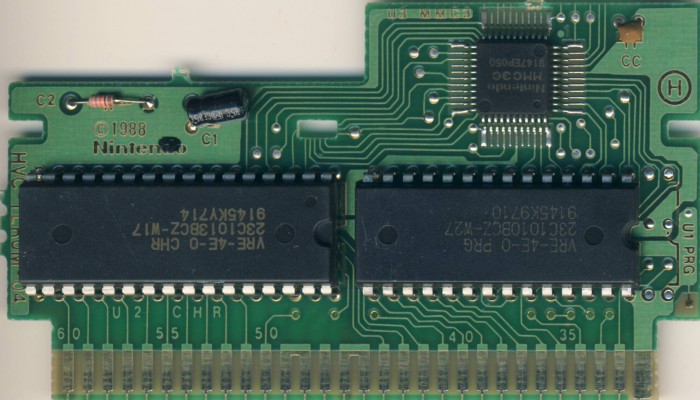

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9147 |
| Est First Run | November 1991 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | VRE-4E-0 PRG | 128 KB | B2AB361E | 1 |
| CHR0 | VRE-4E-0 CHR | 128 KB | 89AAD993 | 1 |
| N/A | ROMs Combined | 256 KB | 1C2A58FF | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | 23C1010BCZ W27 | Mask ROM 128 KB | DIP-28 | 9145 K9710 | 9145 | |
| U2 CHR | NEC | 23C1013BCZ W17 | Mask ROM 128 KB | DIP-32 | 9145 KY714 | 9145 | |
| U3 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9147 EP050 | 9147 |
