Release Info
| Catalog ID | WT-EC-6 |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1991 |
| Publisher | Wisdom Tree |
| Developer | Wisdom Tree |
| Players | 2 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | Color Dreams |
|---|---|
| Color | Black |
| Form Factor | Inset Grip |

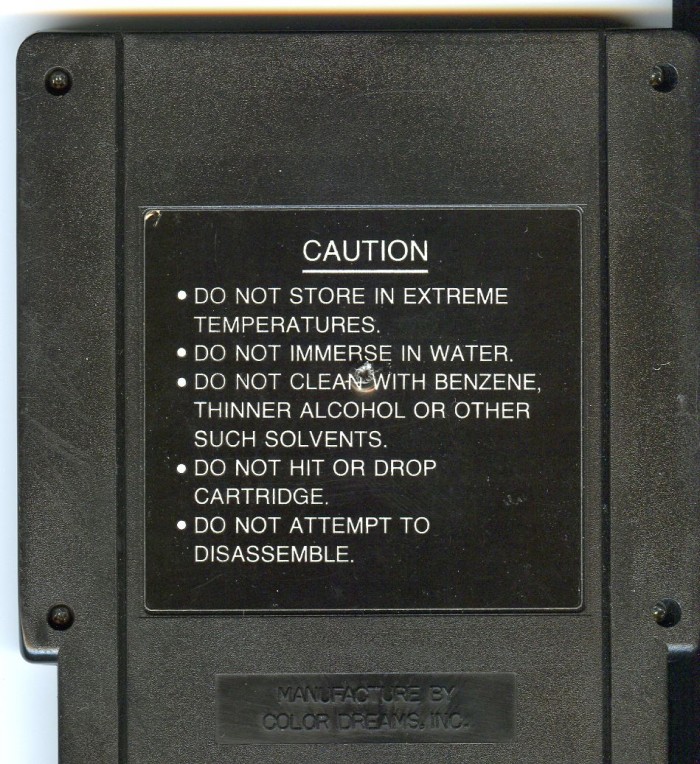

| Embossed Text | Manufacture by Color Dreams, Inc. |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | BC6 |
|---|---|
| PCB Producer | Color Dreams |
| Manufacturer | BTC |
| Mfg Range | 9143 - 9148 (2) |
| Est First Run | October 1991 |
| PCB Class | COLORDREAMS-74*377 |
| iNES Mapper | 11 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 7660 |
| Hardware | 74xx377 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | JOURNEY VER 4.0 PRG. | 128 KB | 3CED963A | 2 |
| CHR0 | JOURNEY VER 4.0 VID. | 128 KB | AB344905 | 3 |
| N/A | ROMs Combined | 256 KB | 0AB26DB6 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|
