Release Info
| Catalog ID | NES-G8-UKV |
|---|---|
| Region | United Kingdom (PAL-A) |
| Class | Licensed |
| Release Date | |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | NES Controller |

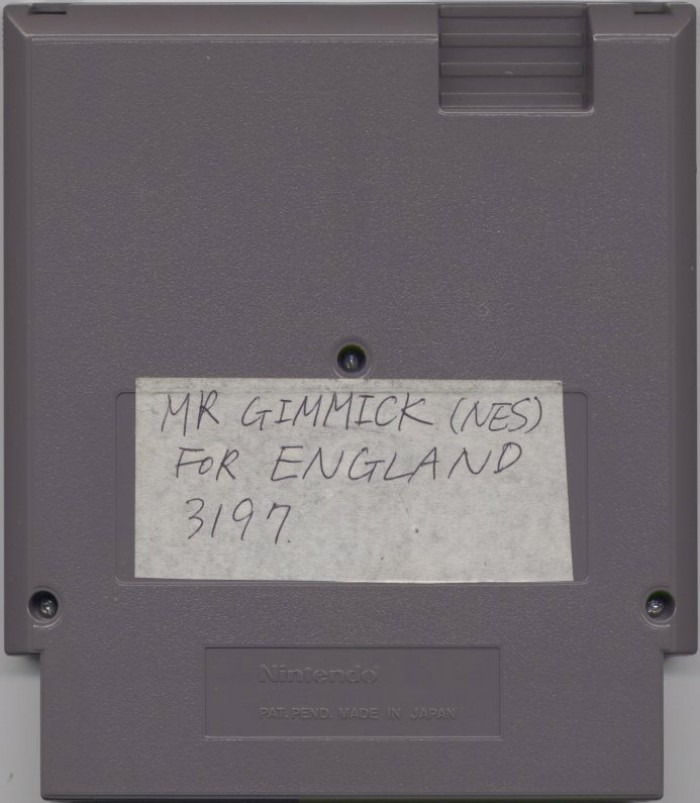

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

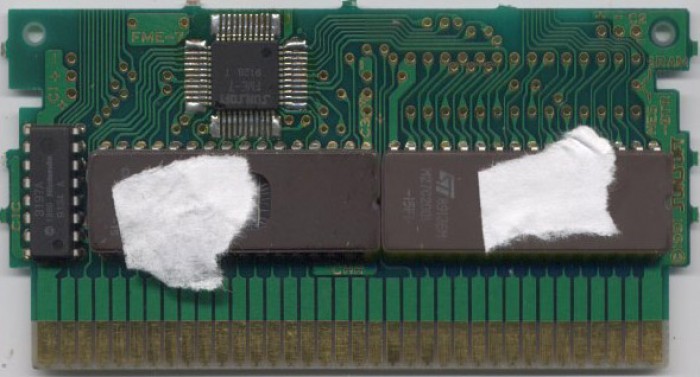

PCB Properties
| Name | NES-BTR |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-BTR |
| iNES Mapper | 69 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3197A |
| Hardware | FME-7 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 256 KB | DF496FDF | 2 |
| CHR0 | Not Present | 128 KB | F5A3935D | 2 |
| N/A | ROMs Combined | 384 KB | A713DD30 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | ST Micro | M27C2001-15F1 | UV EPROM 256 KB | DIP-32 | 9136 8 | 9136 | |
| CHR | ST Micro | M27C1001-15 | UV EPROM 128 KB | DIP-32 | |||
| CIC | Sharp | 3197A | Nintendo CIC | DIP-16 | 9134 A | 9134 | |
| FME-7 | Sharp | FME-7 | Sunsoft FME-7 | TQFP-44 | 9128 T | 9128 |
