Release Info
| Catalog ID | NES-G8-SCN |
|---|---|
| Region | Scandinavia (PAL-B) |
| Class | Licensed |
| Release Date | May 19, 1993 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | NES Controller |

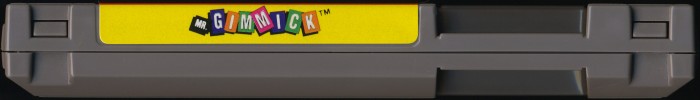

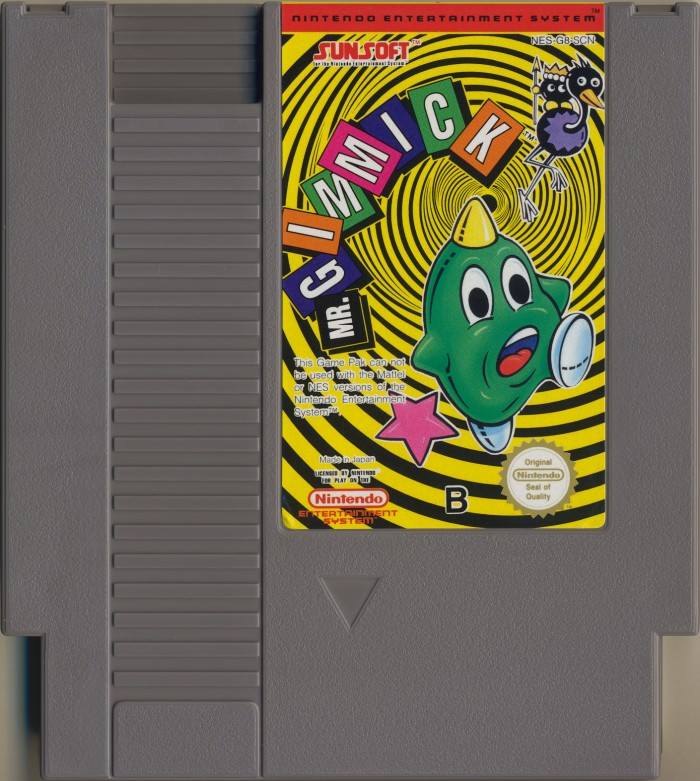

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-G8-SCN |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 08 |

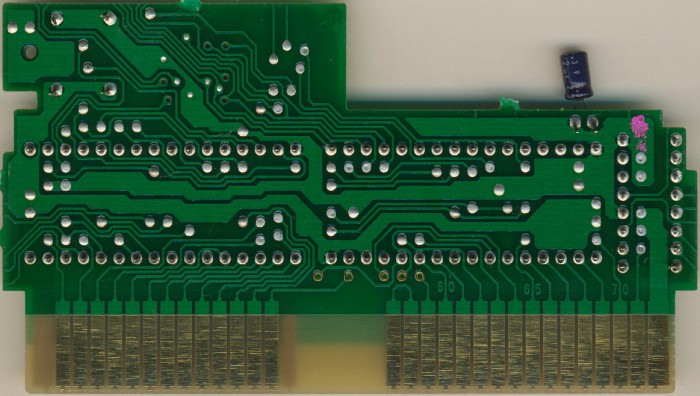

PCB Properties
| Name | NES-JLROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9316 |
| Est First Run | April 1993 |
| PCB Class | NES-JLROM |
| iNES Mapper | 69 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | FME-7 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-G8-0 PRG | 256 KB | DF496FDF | 2 |
| CHR0 | PAL-G8-0 CHR | 128 KB | F5A3935D | 2 |
| N/A | ROMs Combined | 384 KB | A713DD30 | 2 |

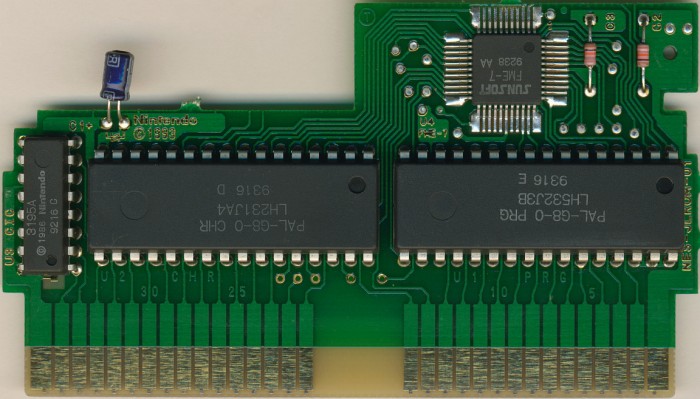

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH532J 3B | Mask ROM 256 KB | DIP-32 | 9316 E | 9316 | |
| U2 CHR | Sharp | LH231J A4 | Mask ROM 128 KB | DIP-32 | 9316 D | 9316 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9216 C | 9216 | |
| U4 FME-7 | Sharp | FME-7 | Sunsoft FME-7 | TQFP-44 | 9238 AA | 9238 |
