Release Info
| Catalog ID | TGN-017-MPM |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1990 |
| Publisher | Tengen |
| Developer | Namco |
| Players | 2 |
| Peripherals | NES Controller |

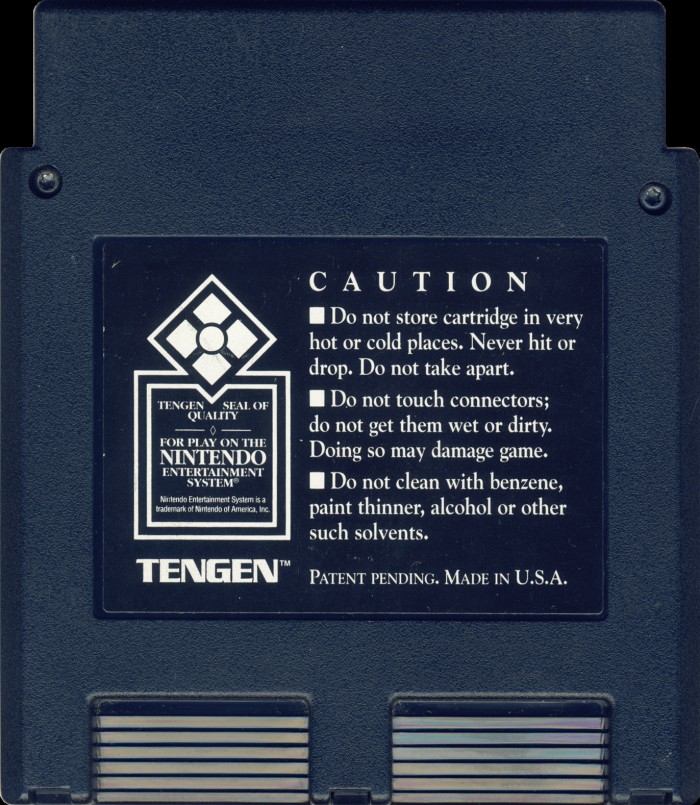

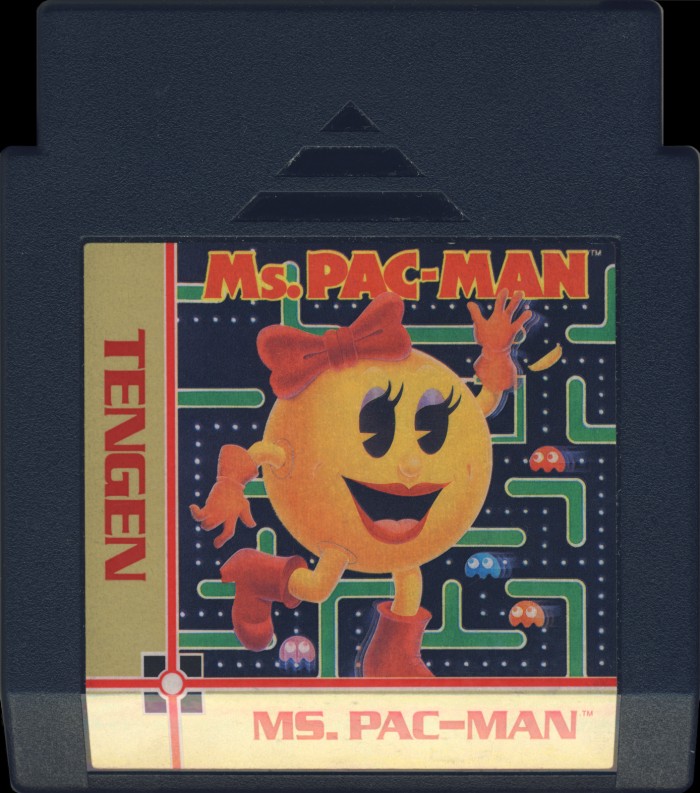

Cart Properties
| Cart Producer | Tengen |
|---|---|
| Color | Black |
| Form Factor | Original |
| Embossed Text | |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

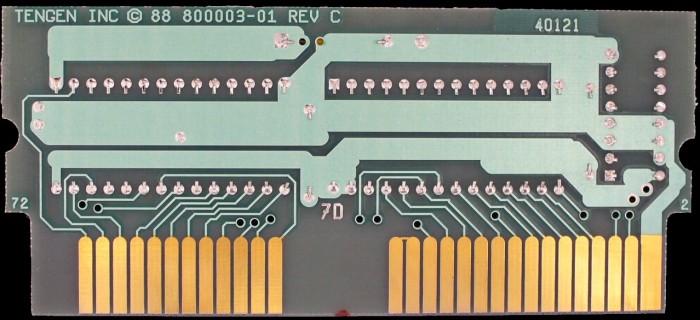

PCB Properties
| Name | 800003-01 REV C |
|---|---|
| PCB Producer | Tengen |
| Manufacturer | Key Tronic |
| Mfg Range | 8945 |
| Est First Run | November 1989 |
| PCB Class | TENGEN-800003 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 337002 |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 335017-1011 MPMPR | 32 KB | 4B2DCE64 | 1 |
| CHR0 | 335017-1012 MPMCH | 8 KB | 1F20FAD0 | 1 |
| N/A | ROMs Combined | 40 KB | 43D30C2F | 1 |

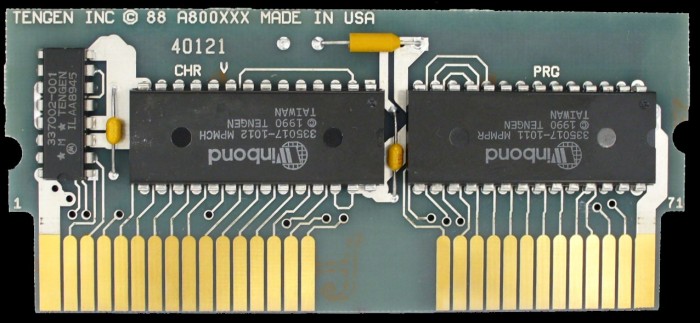

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Winbond | WR23256 | Mask ROM 32 KB | DIP-28 | |||
| CHR | Winbond | WR2364 | Mask ROM 8 KB | DIP-28 | |||
| 337002 | Motorola | 337002-001 | Tengen CIC | DIP-16 | 8945 ILAA | 8945 |
