Release Info
| Catalog ID | NES-M9-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1993 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | NES Controller |

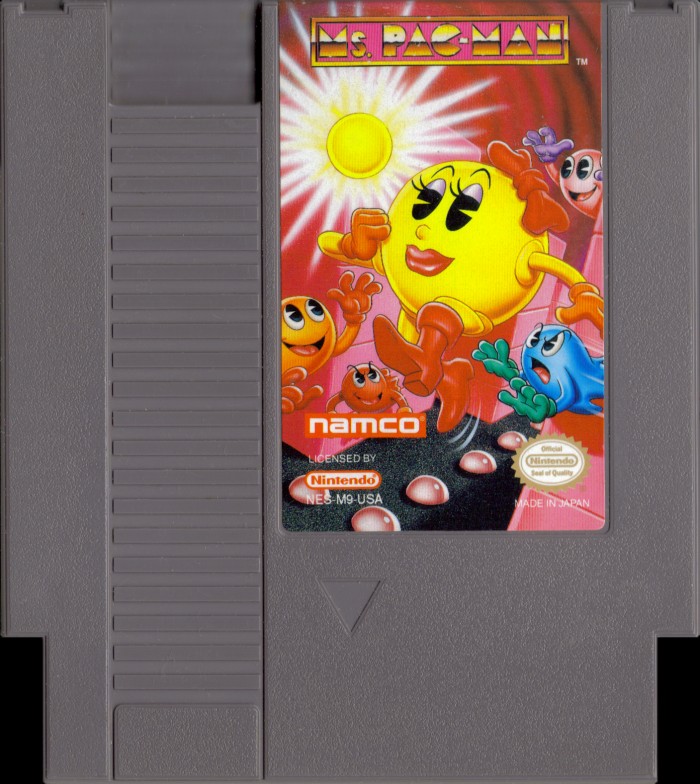

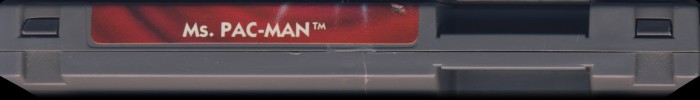

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-M9-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 12 |

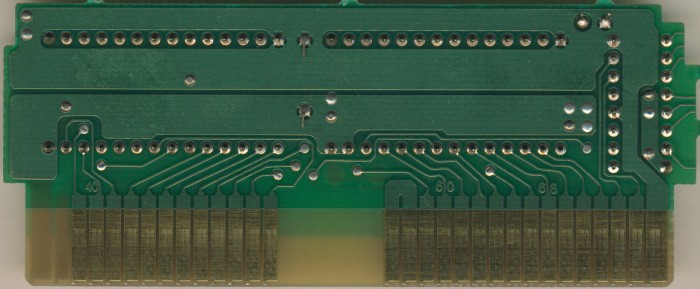

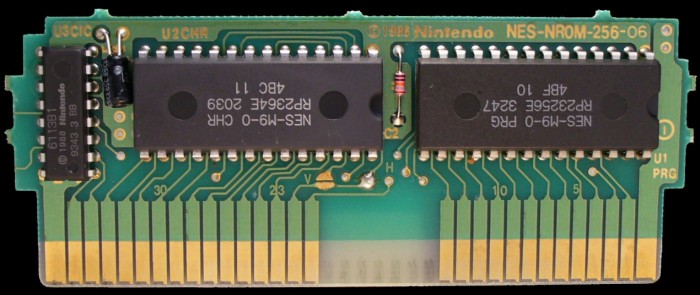

PCB Properties
| Name | NES-NROM-256-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9405 |
| Est First Run | February 1994 |
| PCB Class | NES-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-M9-0 PRG | 32 KB | 2477A571 | 1 |
| CHR0 | NES-M9-0 CHR | 8 KB | 49D90508 | 1 |
| N/A | ROMs Combined | 40 KB | B6D2D300 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 3247 | Mask ROM 32 KB | DIP-28 | 4BF 10 | 9405 | |
| U2 CHR | Ricoh | RP2364E 2039 | Mask ROM 8 KB | DIP-28 | 4BC 11 | 9405 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9343 3 BB | 9343 |
