Release Info
| Catalog ID | KOE-GG |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 25, 1993 |
| Publisher | Koei |
| Developer | Koei |
| Players | 1 |
| Peripherals | Famicom Controller |

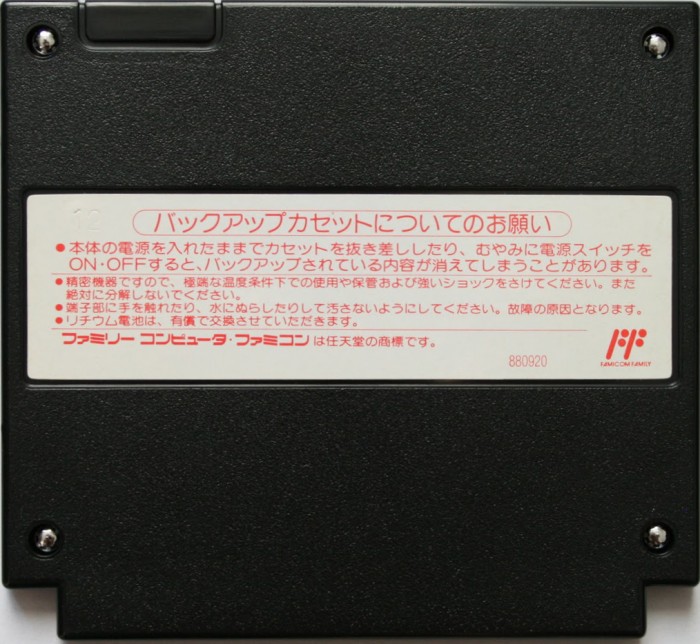

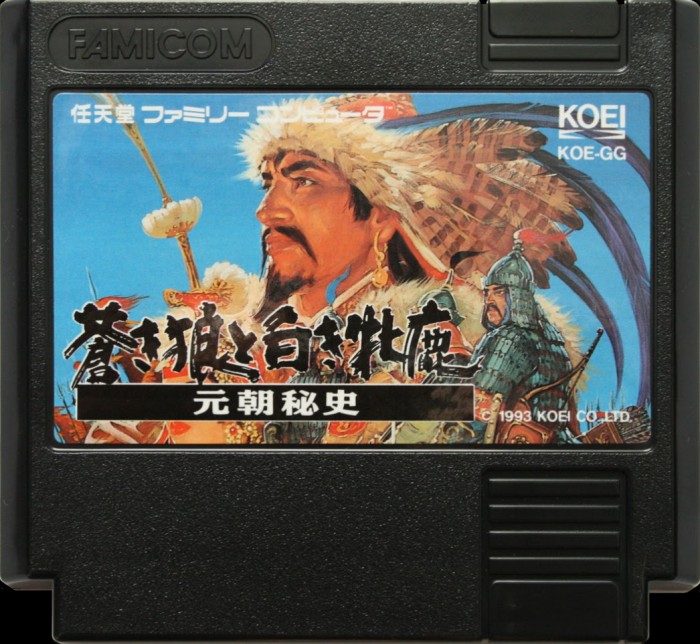

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Large w/ Famicom Logo |
| Embossed Text | |
| Front Label ID | KOE-GG |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 12 |

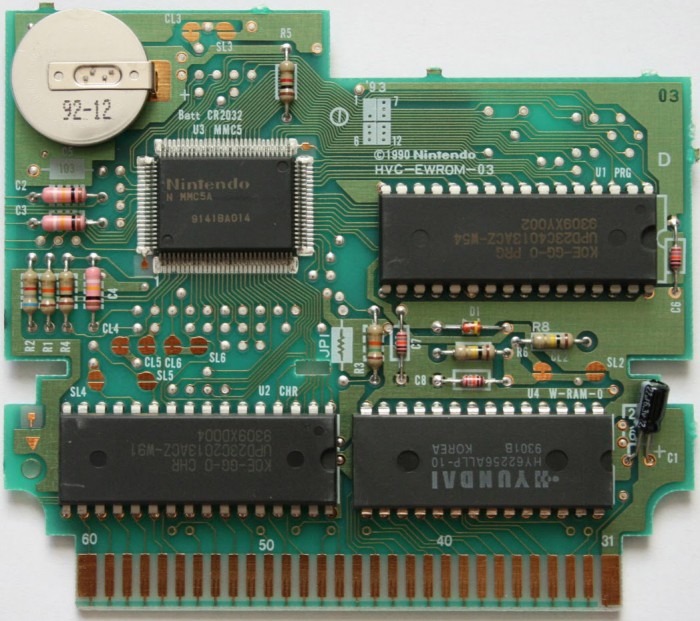

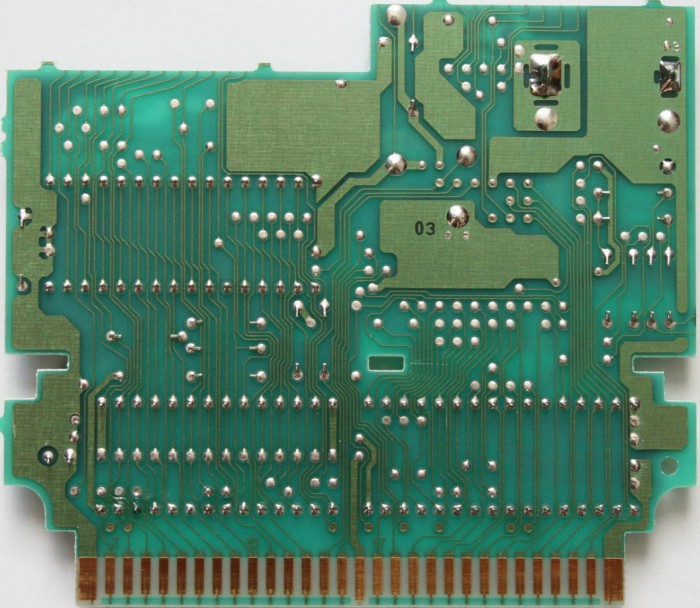

PCB Properties
| Name | HVC-EWROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9309 |
| Est First Run | March 1993 |
| PCB Class | HVC-EWROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 32 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC5A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KOE-GG-0 PRG | 512 KB | F4120E58 | 0 |
| CHR0 | KOE-GG-0 CHR | 256 KB | 28E1A2C7 | 0 |
| N/A | ROMs Combined | 768 KB | 6F4E4312 | 0 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C4013ACZ W54 | Mask ROM 512 KB | DIP-32 | 9309 XY002 | 9309 | |
| U2 CHR | NEC | UPD23C2013ACZ W91 | Mask ROM 256 KB | DIP-32 | 9309 XD004 | 9309 | |
| U3 MMC5 | NEC | MMC5A | Nintendo MMC5 | PQFP-100 | 9141 BA014 | 9141 | |
| U4 W-RAM-0 | Hyundai | HY62256ALLP-10 | SRAM 32 KB | DIP-28 | 9301 B | 9301 |
