Release Info
| Catalog ID | NES-AP-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1988 |
| Publisher | Nintendo |
| Developer | Rare |
| Players | 4 |
| Peripherals | NES Controller |

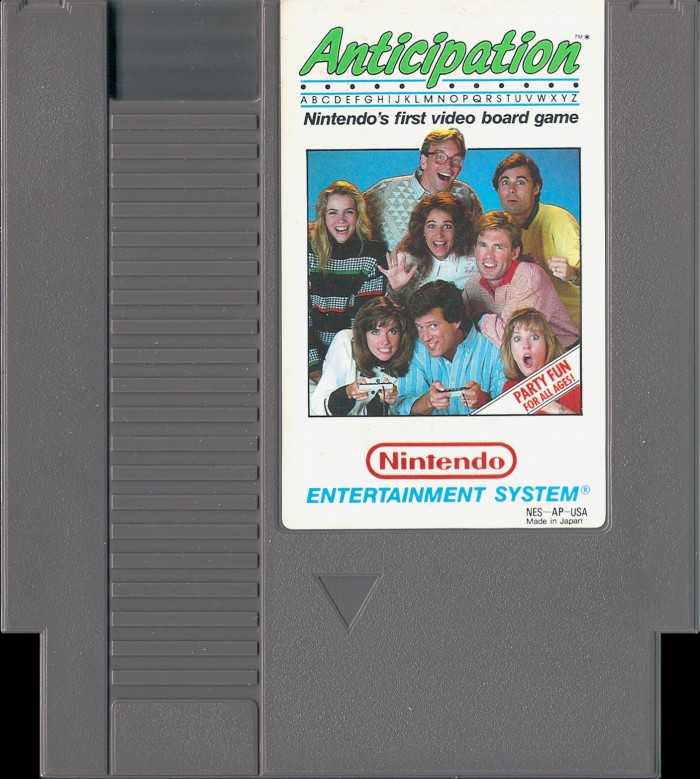

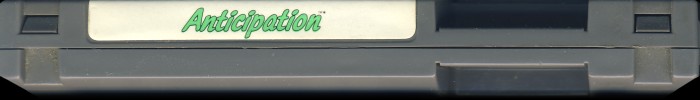

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-AP-USA |
| Seal of Quality | None |
| MfgString Present | Yes |
| 2-digit Code | 07 |

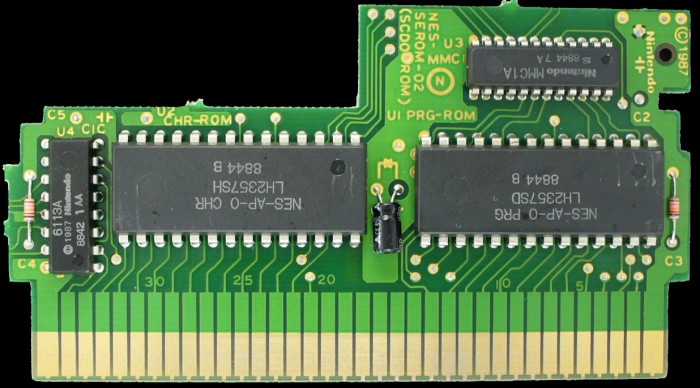

PCB Properties
| Name | NES-SEROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8844 - 8849 (2) |
| Est First Run | November 1988 |
| PCB Class | NES-SEROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-AP-0 PRG | 32 KB | 79D8C39D | 3 |
| CHR0 | NES-AP-0 CHR | 32 KB | E4E8E16E | 4 |
| N/A | ROMs Combined | 64 KB | 99A9F57E | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Sharp | LH2357 SD | Mask ROM 32 KB | DIP-28 | 8844 B | 8844 | |
| U2 CHR-ROM | Sharp | LH2357 SH | Mask ROM 32 KB | DIP-28 | 8844 B | 8844 | |
| U3 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8844 7 A | 8844 | |
| U4 CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8842 1 AA | 8842 |
