Release Info
| Catalog ID |
KOE-GX |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
April 20, 1989 |
| Publisher |
Koei |
| Developer |
Koei |
| Players |
4 |
| Peripherals |
Famicom Controller |

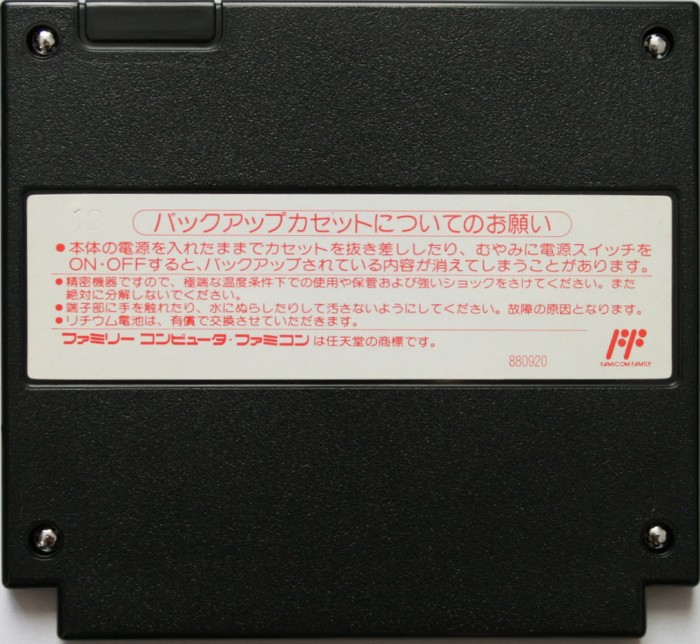

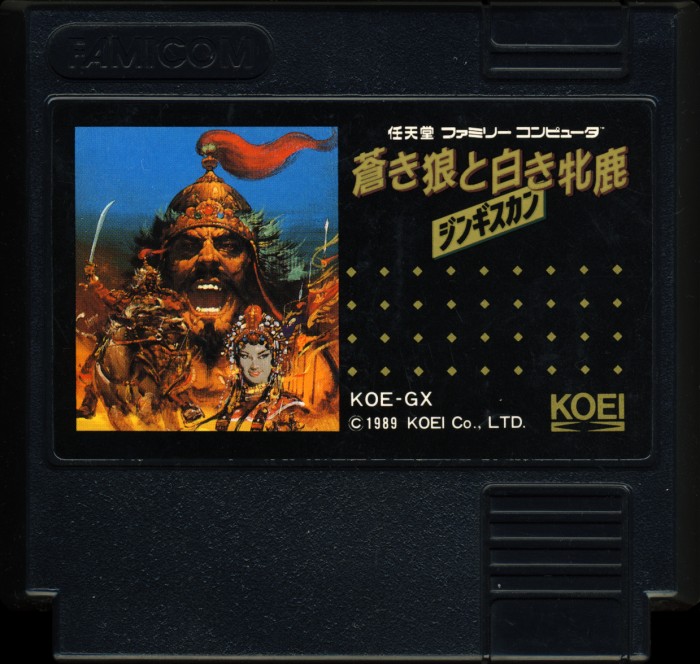

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Black |
| Form Factor |
Large w/ Famicom Logo |
| Embossed Text |
|
| Front Label ID |
KOE-GX |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
09 |
PCB Properties
| Name |
HVC-SOROM-03 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8907 |
| Est First Run |
February 1989 |
| PCB Class |
HVC-SOROM |
| iNES Mapper |
1 |
| Mirroring |
Mapper Ctrl |
| Battery present |
Yes |
| WRAM |
16 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC1A |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
KOE-GX-0 PRG |
256 KB |
FB69743A |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
Sharp |
LH5322
38
|
Mask ROM
256 KB
|
DIP-32 |
8907
D
|
8907 |
|
| U2 W-RAM |
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
8905
MX
|
8905 |
|
| U3 |
Sharp |
LH5264T-L
|
SRAM
8 KB
|
DIP-28 |
8907
5 Y
|
8907 |
|
| U4 CHR |
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
8905
MX
|
8905 |
|
| U5 MMC1 |
Sharp |
MMC1A
|
Nintendo MMC1
|
DIP-24 |
8906
1 A
|
8906 |
|
Additional Images
PCB Images
