Release Info
| Catalog ID | FT-08 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 28, 1987 |
| Publisher | Bandai |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | Family Trainer Mat |

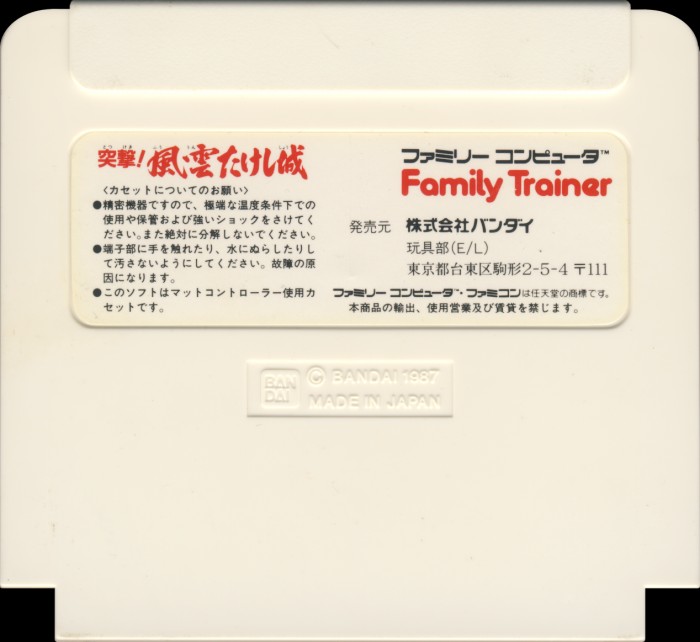

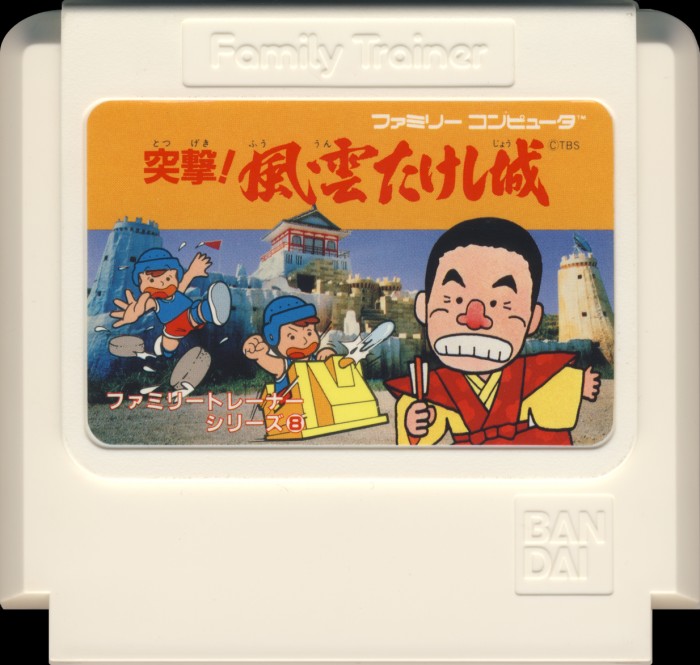

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | White |
| Form Factor | Large |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

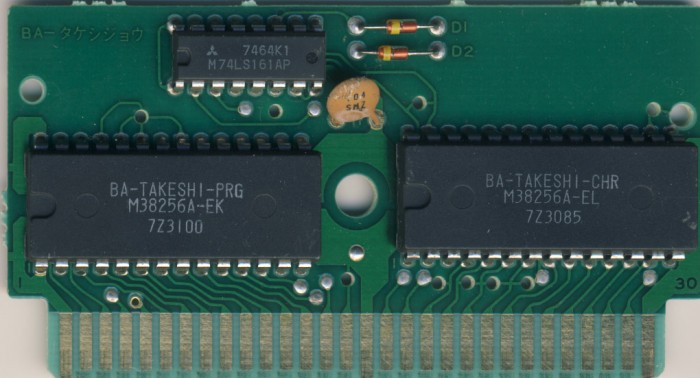

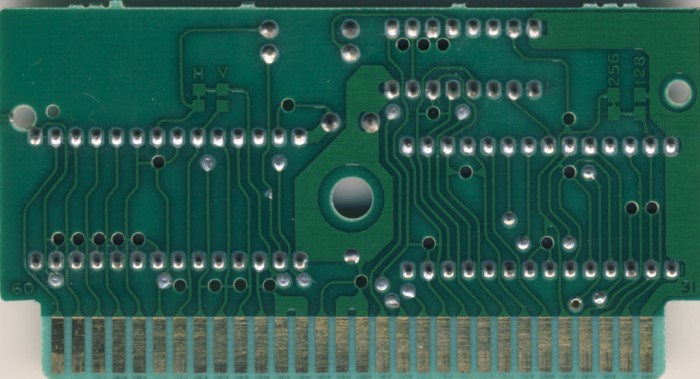

PCB Properties
| Name | BA-タケシジヨウ |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8749 |
| Est First Run | December 1987 |
| PCB Class | BANDAI-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BA-TAKESHI-PRG | 32 KB | 59794F2D | 1 |
| CHR0 | BA-TAKESHI-CHR | 32 KB | 5B5A3616 | 1 |
| N/A | ROMs Combined | 64 KB | 8A12A7D9 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| OKI | M38256A EK | Mask ROM 32 KB | DIP-28 | 7Z 3100 | 8749 | ||
| OKI | M38256A EL | Mask ROM 32 KB | DIP-28 | 7Z 3085 | 8749 | ||
| Mitsubishi | M74LS161AP | 74-161 Series | DIP-16 | 746 4K1 | 8746 |
