Release Info
| Catalog ID | FT-09 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 20, 1988 |
| Publisher | Bandai |
| Developer | |
| Players | 1 |
| Peripherals | Family Trainer Mat |

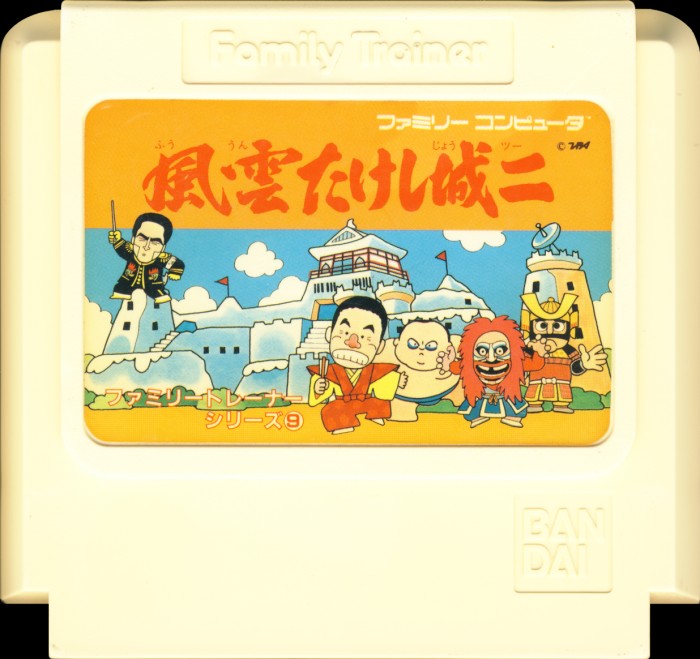

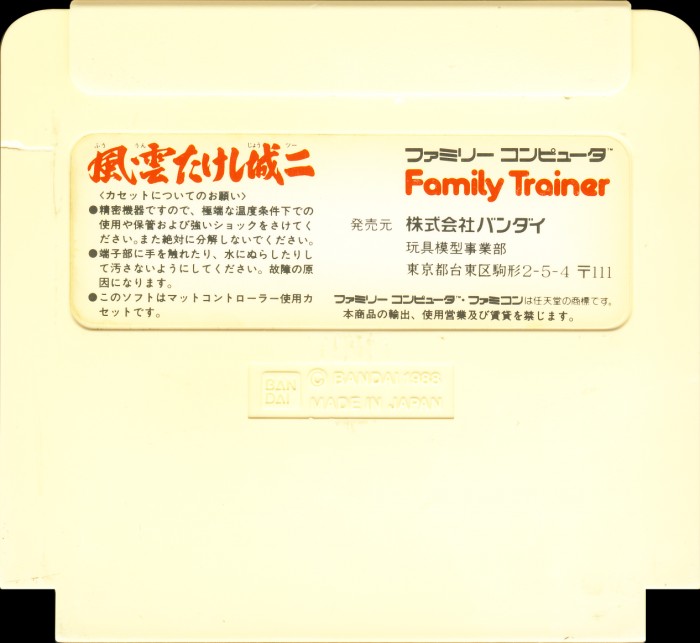

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Light Yellow |
| Form Factor | Large |
| Embossed Text | © Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

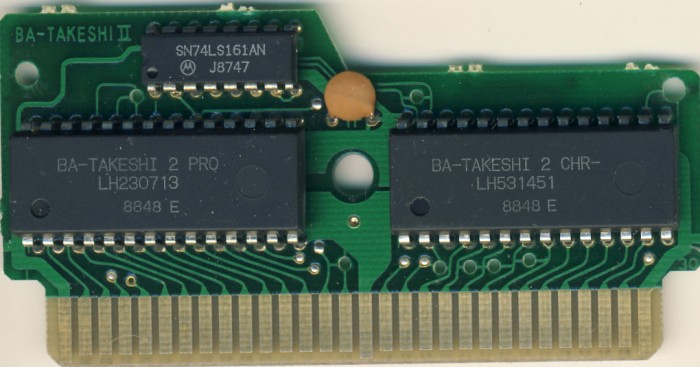

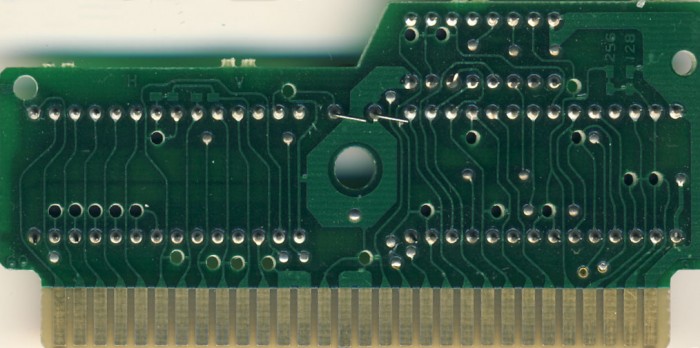

PCB Properties
| Name | BA-TAKESHI II |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8848 |
| Est First Run | December 1988 |
| PCB Class | BANDAI-GNROM |
| iNES Mapper | 66 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BA-TAKESHI 2 PRO | 128 KB | EE11FE78 | 1 |
| CHR0 | BA-TAKESHI 2 CHR- | 32 KB | B49317CF | 1 |
| N/A | ROMs Combined | 160 KB | 5CD5FDA4 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2307 13 | Mask ROM 128 KB | DIP-28 | 8848 E | 8848 | ||
| Sharp | LH5314 51 | Mask ROM 64 KB | DIP-28 | 8848 E | 8848 | ||
| Motorola | SN74LS161AN | 74-161 Series | DIP-16 | 8747 J | 8747 |
