Release Info
| Catalog ID | FT-07 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 27, 1987 |
| Publisher | Bandai |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | Family Trainer Mat |

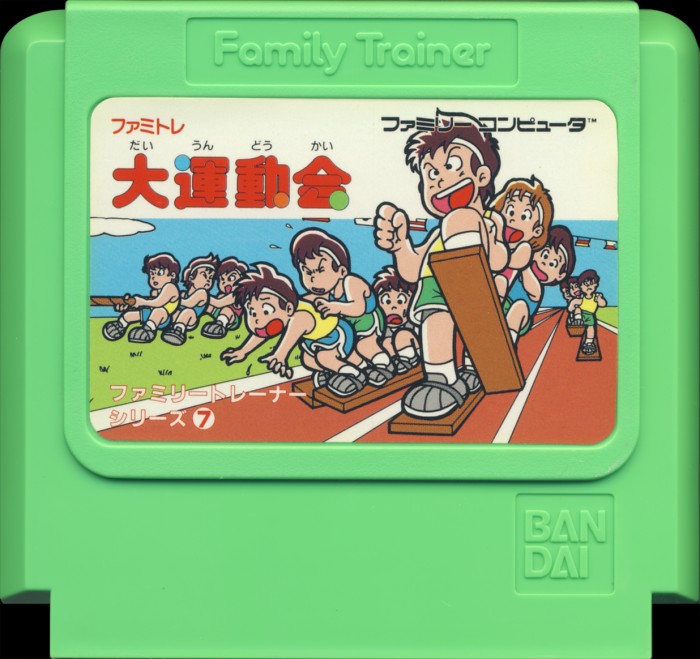

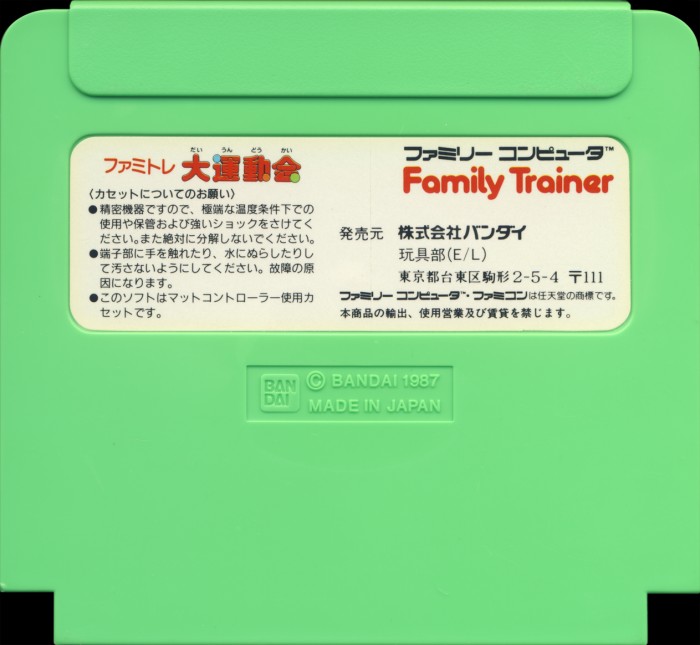

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Light Green |
| Form Factor | Large |
| Embossed Text | © Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

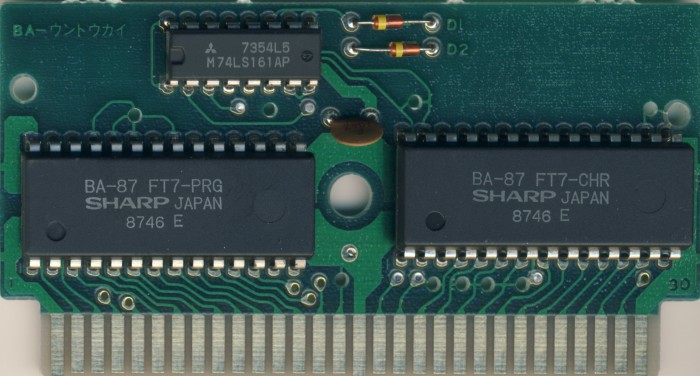

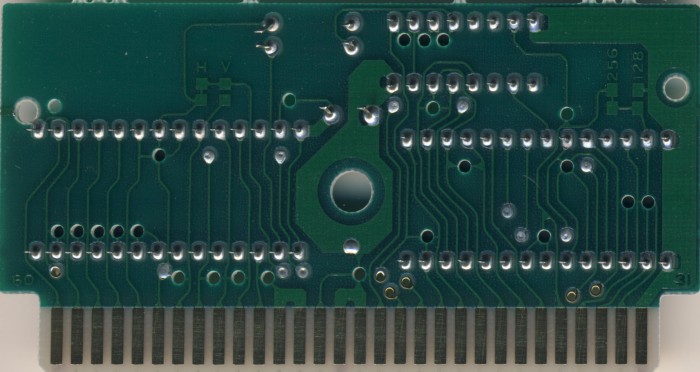

PCB Properties
| Name | BA-ウンドウカイ |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8746 |
| Est First Run | November 1987 |
| PCB Class | BANDAI-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BA-87 FT7-PRG | 32 KB | CA26A0F1 | 1 |
| CHR0 | BA-87 FT7-CHR | 32 KB | 64E5D76F | 1 |
| N/A | ROMs Combined | 64 KB | 6CCA1C1F | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2355 | Mask ROM 32 KB | DIP-28 | 8746 E | 8746 | ||
| Sharp | LH2355 | Mask ROM 32 KB | DIP-28 | 8746 E | 8746 | ||
| Mitsubishi | M74LS161AP | 74-161 Series | DIP-16 | 735 4L5 | 8735 |
