Release Info
| Catalog ID | FT-05 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | July 31, 1987 |
| Publisher | Bandai |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | Family Trainer Mat |

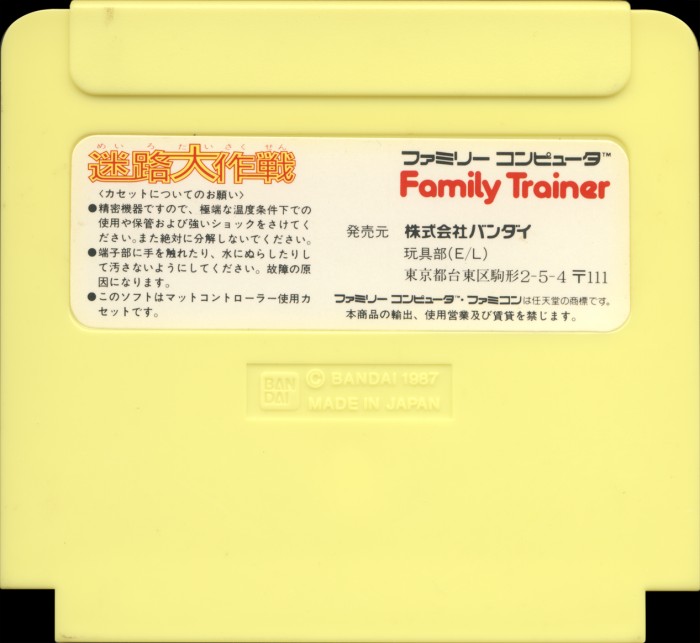

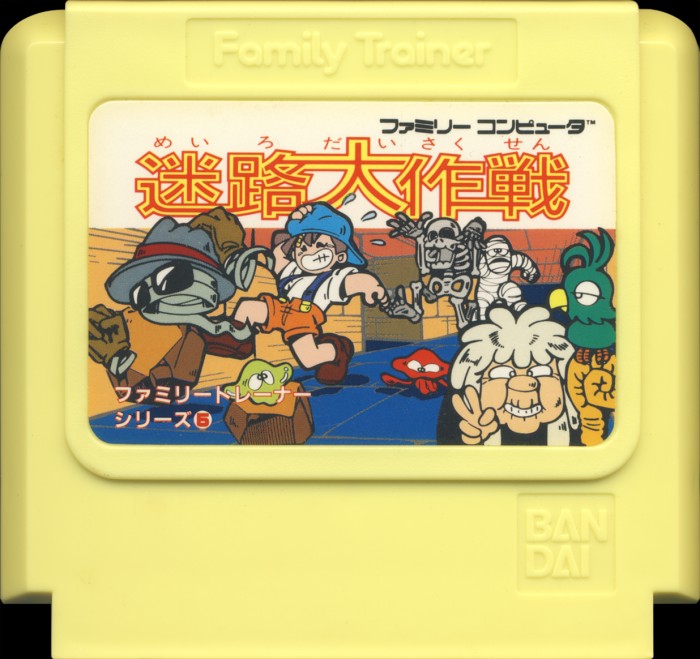

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Yellow |
| Form Factor | Large |
| Embossed Text | © Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

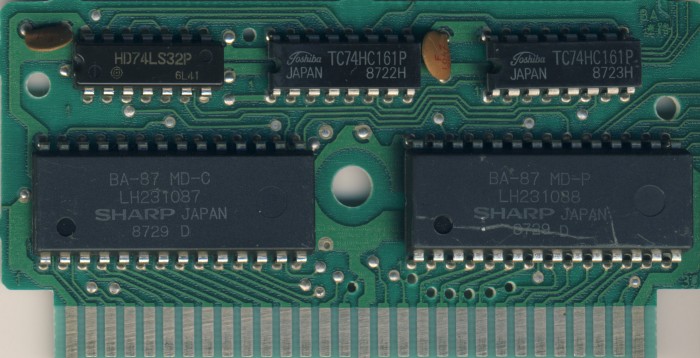

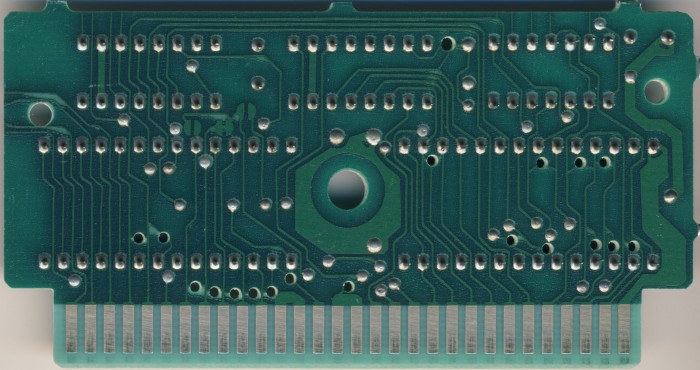

PCB Properties
| Name | BA 迷路 |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8729 |
| Est First Run | July 1987 |
| PCB Class | BANDAI-74*161/161/32 |
| iNES Mapper | 70 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BA-87 MD-C | 128 KB | AD3DF455 | 1 |
| CHR0 | BA-87 MD-P | 128 KB | EE89A6B0 | 1 |
| N/A | ROMs Combined | 256 KB | 370CEB65 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2310 87 | Mask ROM 128 KB | DIP-28 | 8729 D | 8729 | ||
| Sharp | LH2310 88 | Mask ROM 128 KB | DIP-28 | 8729 D | 8729 | ||
| Hitachi | HD74LS32P | 74-32 Series | DIP-14 | 6L4 1 | 8648 | ||
| Toshiba | TC74HC161P | 74-161 Series | DIP-16 | 8722 H | 8722 | ||
| Toshiba | TC74HC161P | 74-161 Series | DIP-16 | 8723 H | 8723 |
