Release Info
| Catalog ID | FT-04 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | May 28, 1987 |
| Publisher | Bandai |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | Family Trainer Mat |

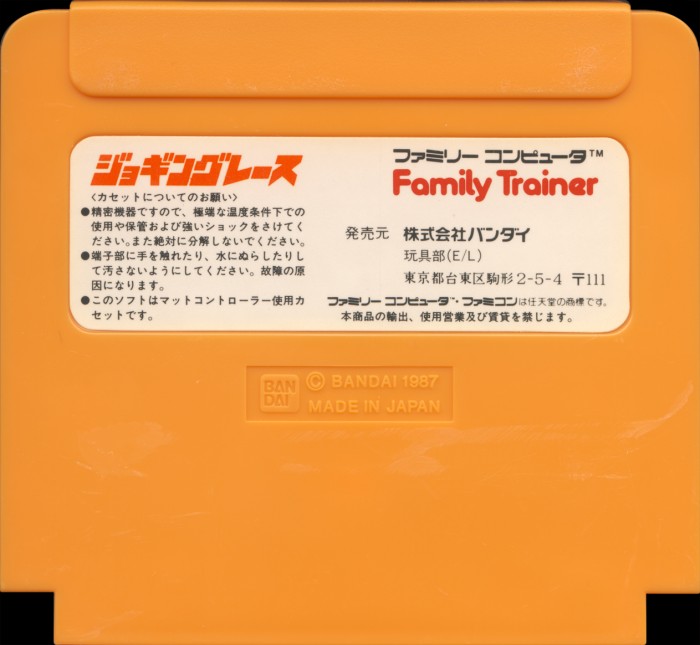

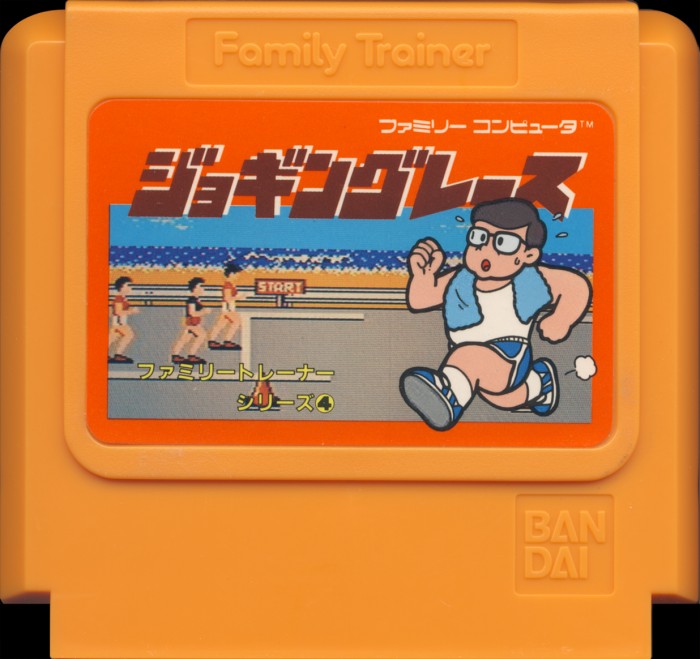

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Orange |
| Form Factor | Large |
| Embossed Text | © Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

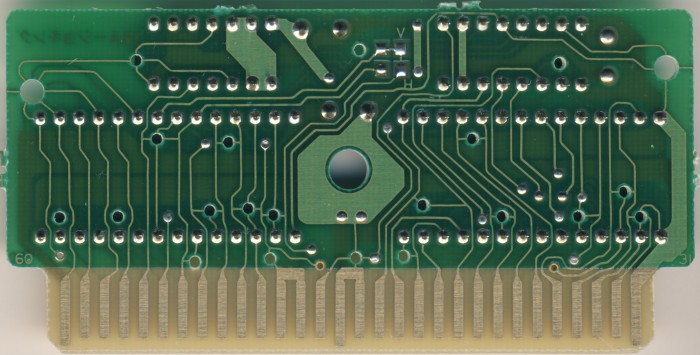

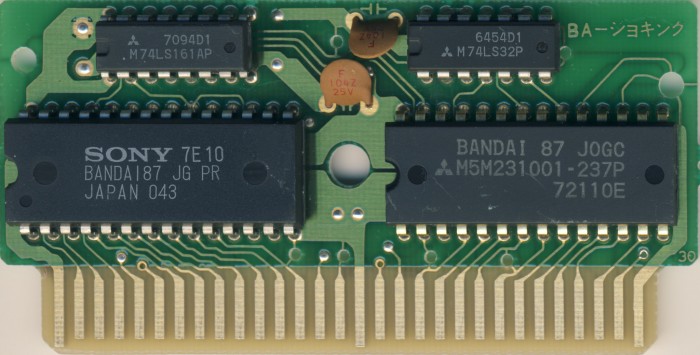

PCB Properties
| Name | BA-ジョギング |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8721 |
| Est First Run | May 1987 |
| PCB Class | BANDAI-74*161/32 |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI87 JG PR | 32 KB | 7E704A14 | 1 |
| CHR0 | BANDAI 87 JOGC | 128 KB | F2DC2EFD | 1 |
| N/A | ROMs Combined | 160 KB | 2F128512 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sony | CXK38256 | Mask ROM 32 KB | DIP-28 | 7E 10 | 8719 | ||
| Mitsubishi | M5M231001 237P | Mask ROM 128 KB | DIP-28 | 721 10E | 8721 | ||
| Mitsubishi | M74LS161AP | 74-161 Series | DIP-16 | 709 4D1 | 8709 | ||
| Mitsubishi | M74LS32P | 74-32 Series | DIP-14 | 645 4D1 | 8645 |
