Release Info
| Catalog ID | FT-03 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | February 26, 1987 |
| Publisher | Bandai |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | Family Trainer Mat |

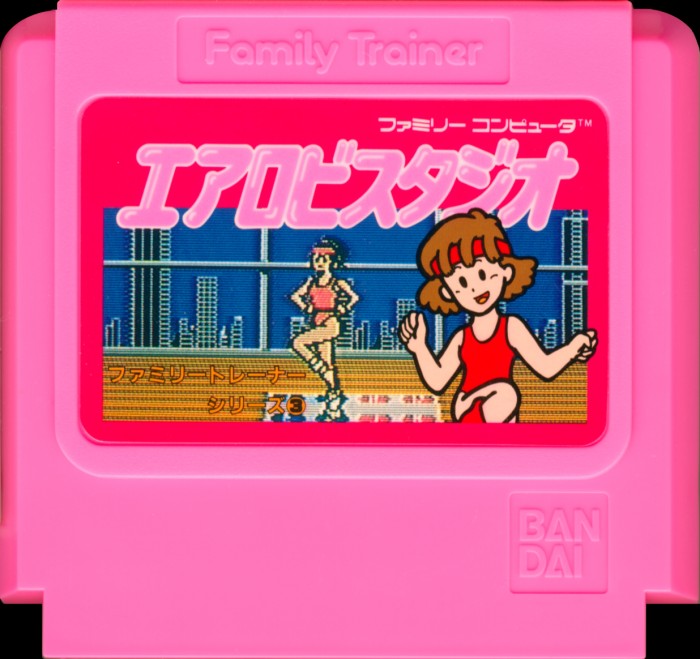

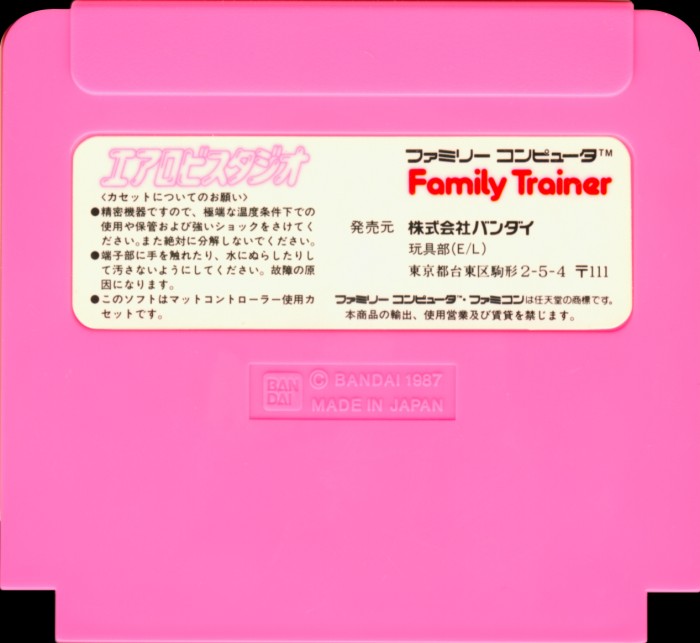

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Pink |
| Form Factor | Large |
| Embossed Text | © Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

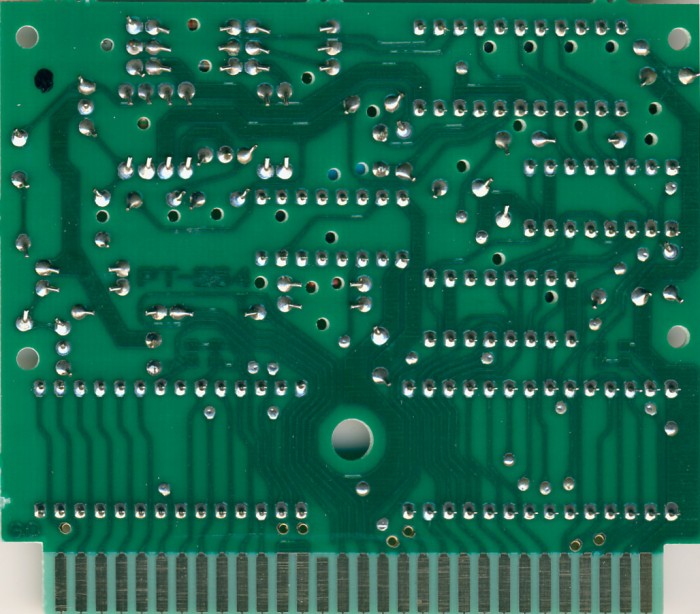

PCB Properties
| Name | BA-エアロビ |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8705 - 8705 (2) |
| Est First Run | February 1987 |
| PCB Class | BANDAI-PT-554 |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx161, 74xx161, M50805 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BA 87 AEROB PR | 32 KB | F8DA2506 | 2 |
| CHR0 | BA 87 AEROB CH | 32 KB | FF1D2BFD | 2 |
| N/A | ROMs Combined | 64 KB | 29DE87AF | 2 |

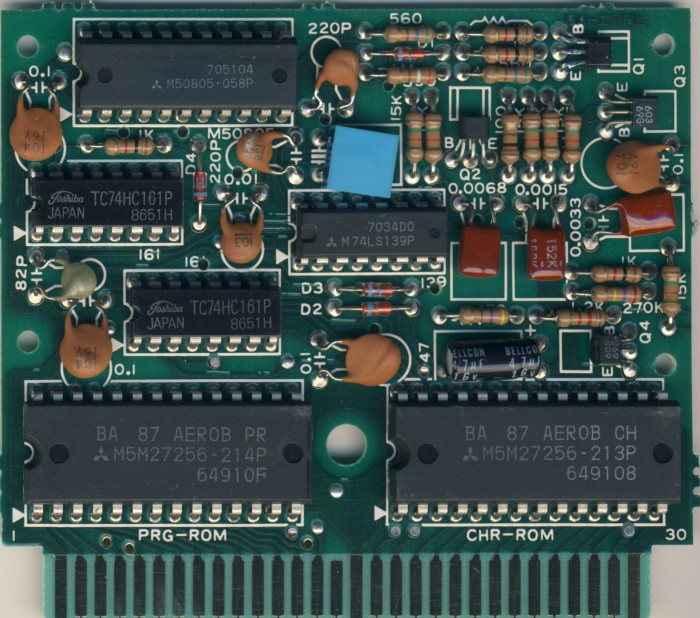

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG-ROM | Mitsubishi | M5M27256 214P | PROM 32 KB | DIP-28 | 649 10F | 8649 | |
| CHR-ROM | Mitsubishi | M5M27256 213P | PROM 32 KB | DIP-28 | 649 108 | 8649 | |
| 161 | Toshiba | TC74HC161P | 74-161 Series | DIP-16 | 8651 H | 8651 | |
| 161 | Toshiba | TC74HC161P | 74-161 Series | DIP-16 | 8651 H | 8651 | |
| 139 | Mitsubishi | M74LS139P | 74-139 Series | DIP-16 | 703 4D0 | 8703 | |
| M50805 | Mitsubishi | M50805 058P | Sound Decoder/ROM | DIP-22 | 705 104 | 8705 |
