Release Info
| Catalog ID | KON-RV102 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | February 26, 1993 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RV102 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

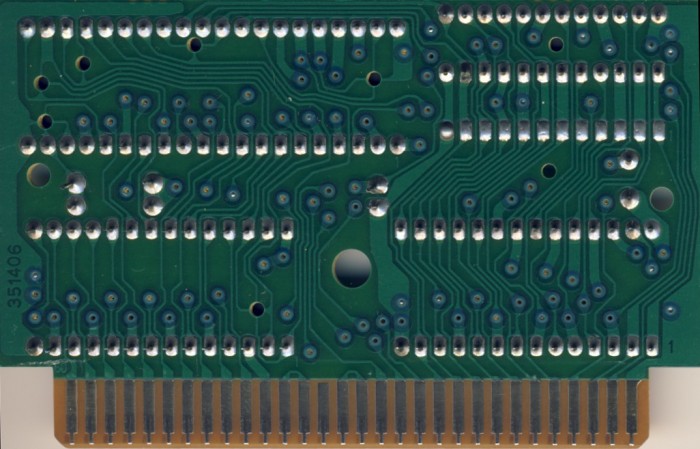

PCB Properties
| Name | 351406 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 9307 |
| Est First Run | February 1993 |
| PCB Class | KONAMI-VRC-4 |
| iNES Mapper | 25 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | VRC4 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RV102J00P | 128 KB | 0BBD85FF | 1 |
| CHR0 | RV102J00C | 128 KB | B8168EFA | 1 |
| N/A | ROMs Combined | 256 KB | 6DC28B5A | 1 |

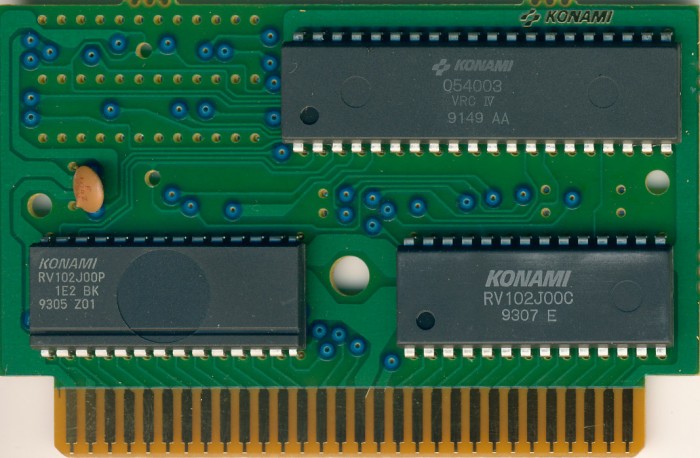

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 9305 Z01 | 9305 | ||
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 9307 E | 9307 | ||
| Sharp | 054003 VRC IV | Konami VRC IV | DIP-40 | 9149 AA | 9149 |
