Release Info
| Catalog ID | JF-14 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | September 22, 1987 |
| Publisher | Jaleco |
| Developer | Atlus |
| Players | 1 |
| Peripherals | Famicom Controller |

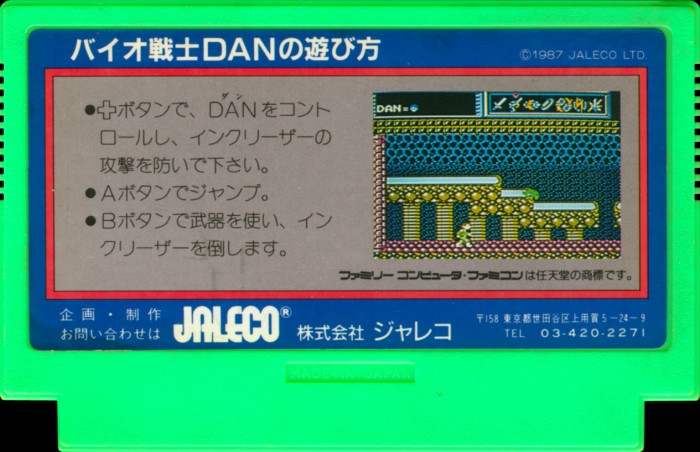

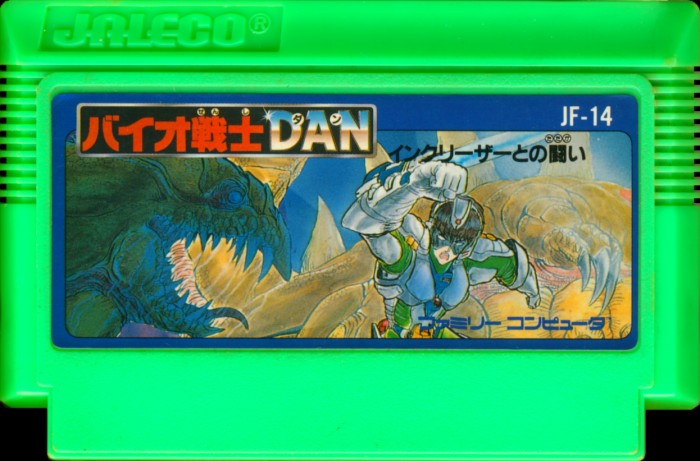

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Bright Green |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | JF-14 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

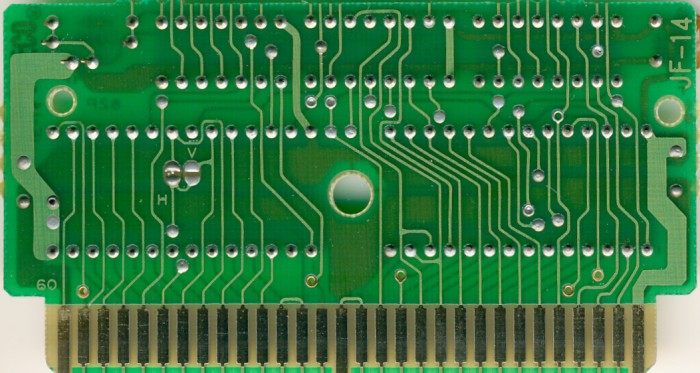

PCB Properties
| Name | JF-14 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8735 |
| Est First Run | September 1987 |
| PCB Class | JALECO-JF-14 |
| iNES Mapper | 140 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx174, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | FA6580E6 | 1 |
| CHR0 | Not Present | 128 KB | ABA17DF7 | 1 |
| N/A | ROMs Combined | 256 KB | EC40E71B | 1 |

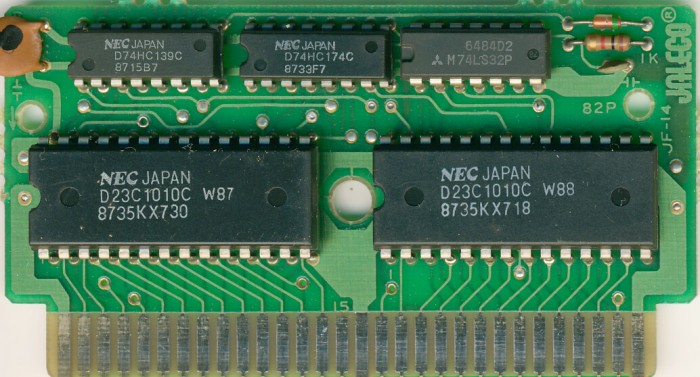

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | D23C1010C W87 | Mask ROM 128 KB | DIP-28 | 8735 KX730 | 8735 | ||
| NEC | D23C1010C W88 | Mask ROM 128 KB | DIP-28 | 8735 KX718 | 8735 | ||
| NEC | D74HC139C | 74-139 Series | DIP-16 | 8715 B7 | 8715 | ||
| NEC | D74HC174C | 74-174 Series | DIP-16 | 8733 F7 | 8733 | ||
| Mitsubishi | M74LS32P | 74-32 Series | DIP-14 | 648 4D2 | 8648 |
