Release Info
| Catalog ID | HFC-BI |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 19, 1985 |
| Publisher | Hudson Soft |
| Developer | Hudson Soft |
| Players | 1 |
| Peripherals | Famicom Controller |

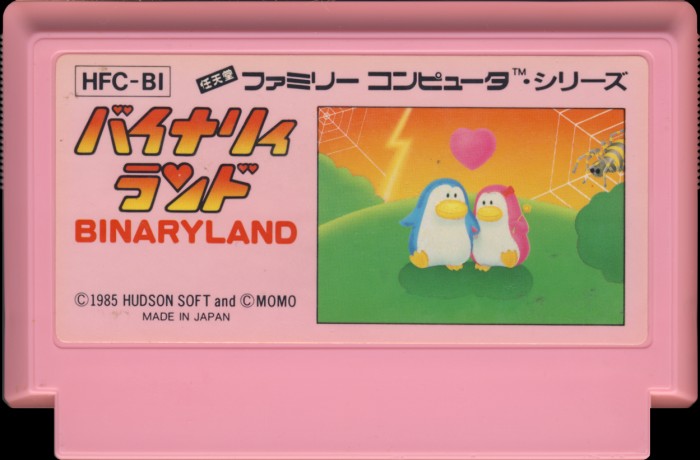

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Pink |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HFC-BI |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

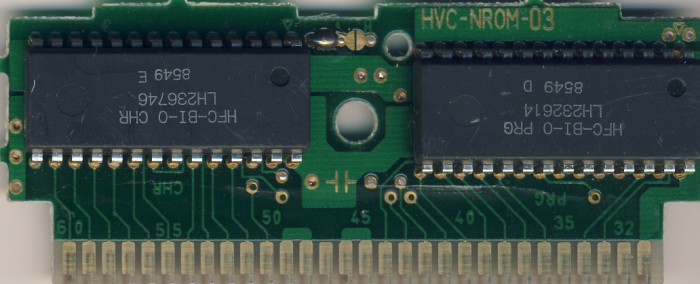

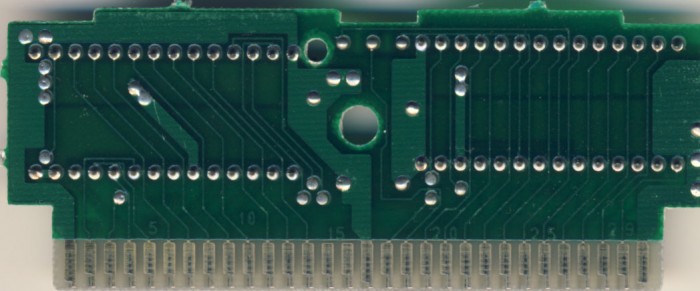

PCB Properties
| Name | HVC-NROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8549 |
| Est First Run | December 1985 |
| PCB Class | HVC-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HFC-BI-0 PRG | 16 KB | 0C5C353A | 1 |
| CHR0 | HFC-BI-0 CHR | 8 KB | DC79323C | 1 |
| N/A | ROMs Combined | 24 KB | F5F435B1 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2326 14 | Mask ROM 16 KB | DIP-28 | 8549 D | 8549 | |
| CHR | Sharp | LH2367 46 | Mask ROM 8 KB | DIP-28 | 8549 E | 8549 |
