Release Info
| Catalog ID | BAP-GC |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 25, 1992 |
| Publisher | Banpresto |
| Developer | Arc System Works |
| Players | 1 |
| Peripherals | Famicom Controller |

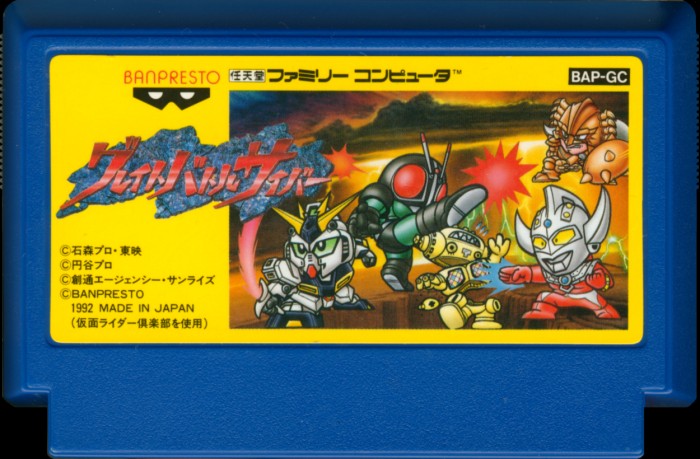

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | BAP-GC |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 12 |

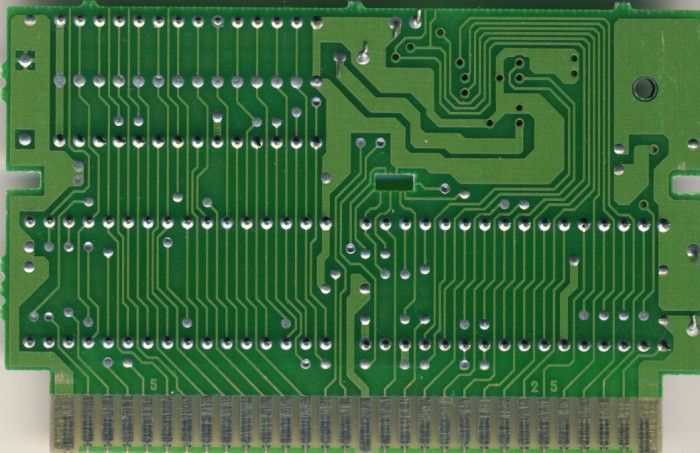

PCB Properties
| Name | HVC-TSROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9249 |
| Est First Run | December 1992 |
| PCB Class | HVC-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BAP-GC-0 PRG | 128 KB | 37A4552F | 1 |
| CHR0 | BAP-GC-0 CHR | 256 KB | C2AC0271 | 1 |
| N/A | ROMs Combined | 384 KB | 1D89610E | 1 |

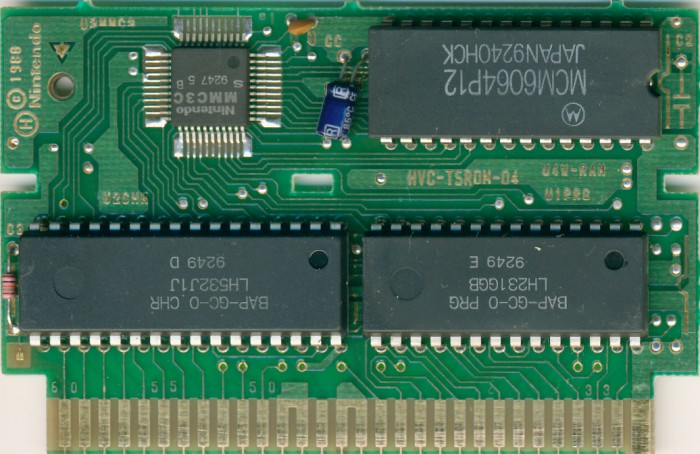

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G GB | Mask ROM 128 KB | DIP-28 | 9249 E | 9249 | |
| U2 CHR | Sharp | LH532J 1J | Mask ROM 256 KB | DIP-32 | 9249 D | 9249 | |
| U3 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9247 5 B | 9247 | |
| U4 W-RAM | Motorola | MCM6064P12 | SRAM 8 KB | DIP-28 | 9240 HCK | 9240 |
