Release Info
| Catalog ID | VIS-5E |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 7, 1990 |
| Publisher | Visco |
| Developer | Pixel |
| Players | 2 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Grey |
| Form Factor | Small |
| Embossed Text | |

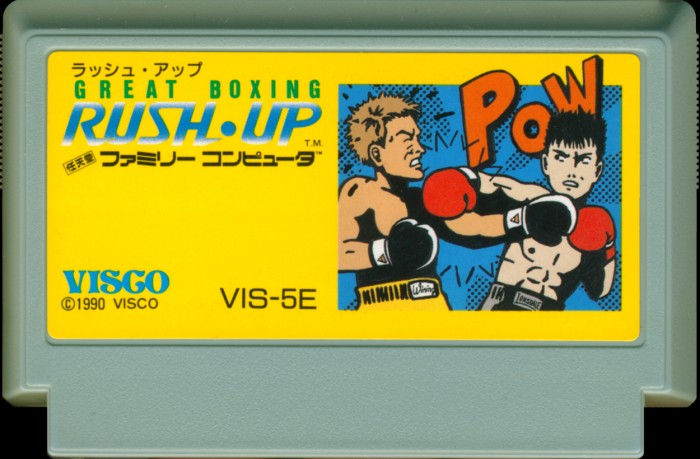

| Front Label ID | VIS-5E |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |
PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9046 |
| Est First Run | November 1990 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | VIS-5E-0 PRG | 128 KB | 68ECB923 | 1 |
| CHR0 | VIS-5E-0 CHR | 128 KB | 80746717 | 1 |
| N/A | ROMs Combined | 256 KB | 175EDA0B | 1 |

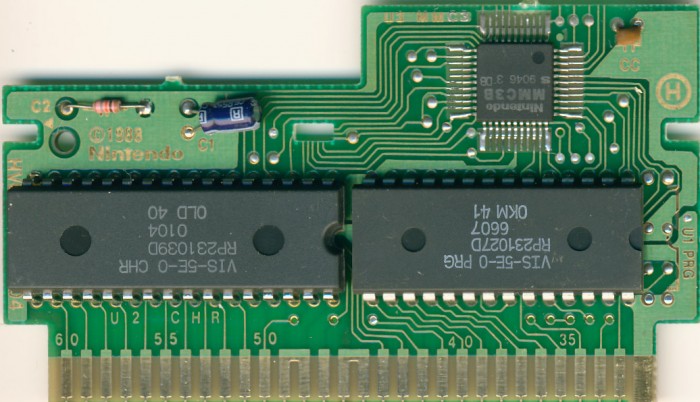

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6607 | Mask ROM 128 KB | DIP-28 | 0KM 41 | 9042 | |
| U2 CHR | Ricoh | RP231039D 0104 | Mask ROM 128 KB | DIP-32 | 0LD 40 | 9045 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9046 3 DB | 9046 |
