Release Info
| Catalog ID | KON-RC832 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 16, 1988 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | Famicom Controller |

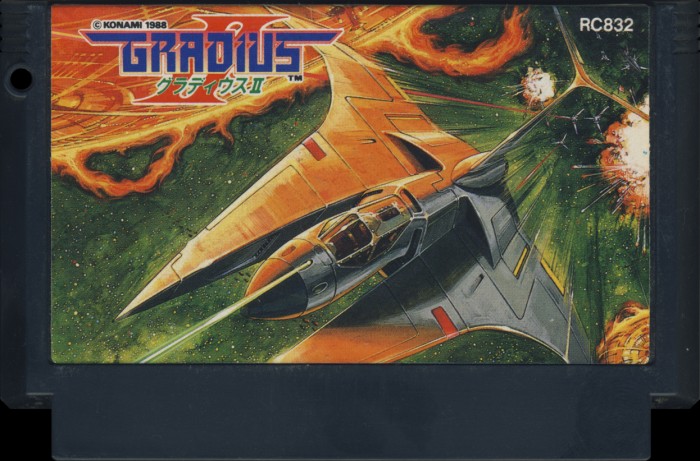

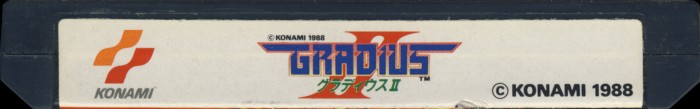

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC832 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

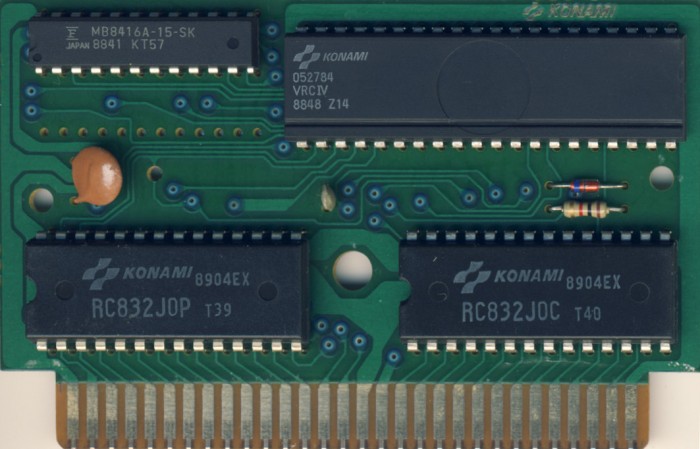

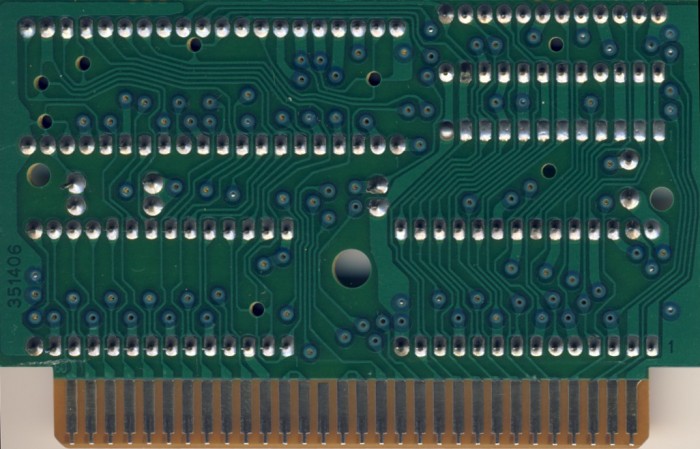

PCB Properties
| Name | 351406 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8848 - 8919 (4) |
| Est First Run | December 1988 |
| PCB Class | KONAMI-VRC-4 |
| iNES Mapper | 25 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 2 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | VRC4 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC832J0P | 128 KB | C71D4CE7 | 4 |
| CHR0 | RC832J0C | 128 KB | 537B6F6A | 4 |
| N/A | ROMs Combined | 256 KB | 5ADBF660 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8904 EX | 8904 | ||
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8904 EX | 8904 | ||
| Fujitsu | MB8416A-15-SK | SRAM 2 KB | SDIP-24 | 8841 KT57 | 8841 | ||
| Fujitsu | 052784 VRC IV | Konami VRC IV | DIP-40 | 8848 Z14 | 8848 |
