Release Info
| Catalog ID | DTF-5J (38) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 19, 1991 |
| Publisher | Taito |
| Developer | TAD |
| Players | 2 |
| Peripherals | Famicom Controller |

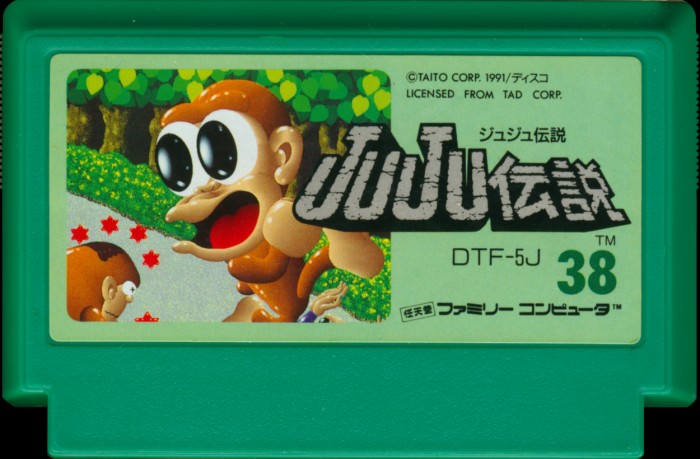

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | DTF-5J |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

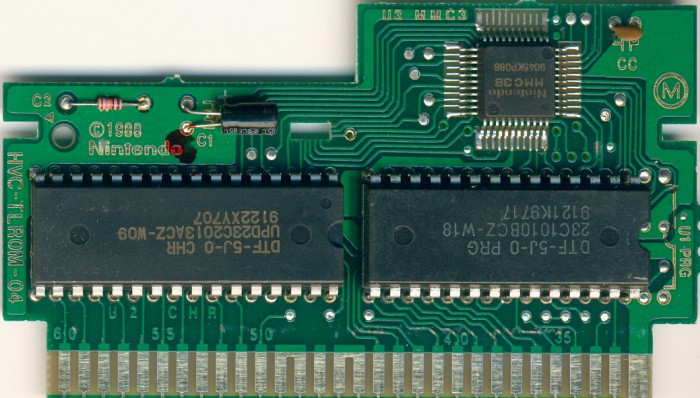

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9122 |
| Est First Run | June 1991 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | DTF-5J-0 PRG | 128 KB | 0BAF01D0 | 1 |
| CHR0 | DTF-5J-0 CHR | 256 KB | 2BCA59C8 | 1 |
| N/A | ROMs Combined | 384 KB | CCAF543A | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | 23C1010BCZ W18 | Mask ROM 128 KB | DIP-28 | 9121 K9717 | 9121 | |
| U2 CHR | NEC | UPD23C2013ACZ W09 | Mask ROM 256 KB | DIP-32 | 9122 XY707 | 9122 | |
| U3 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9045 KP086 | 9045 |
