Release Info
| Catalog ID | HAL-JO |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 1, 1988 |
| Publisher | HAL Laboratory |
| Developer | HAL Laboratory |
| Players | 1 |
| Peripherals | Famicom Controller |

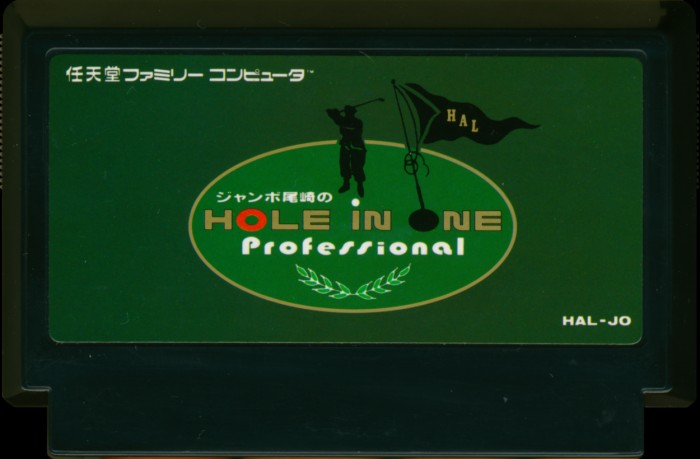

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HAL-JO |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

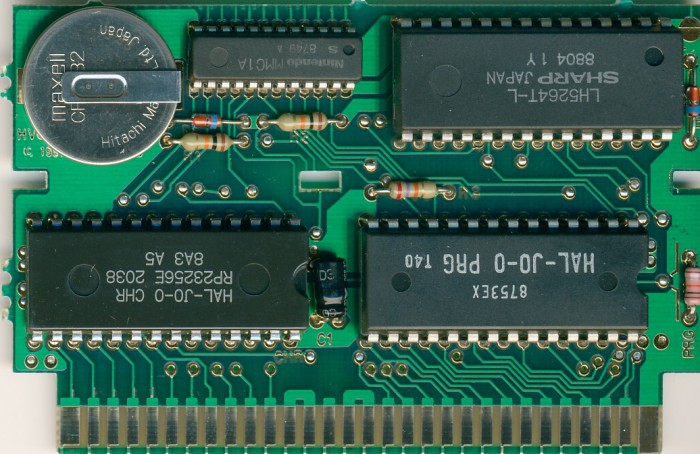

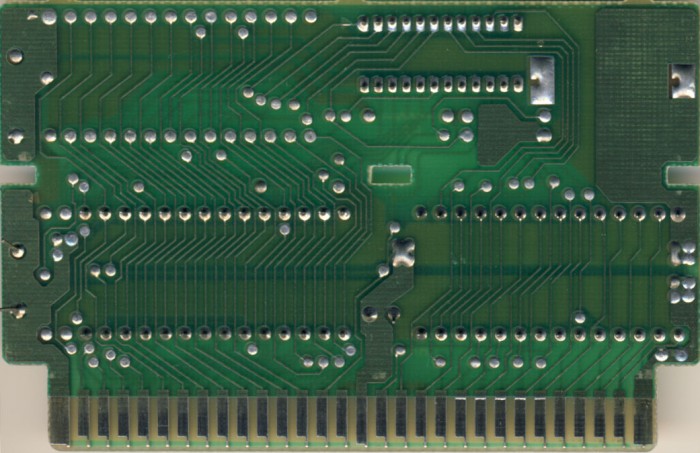

PCB Properties
| Name | HVC-SJROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8804 |
| Est First Run | January 1988 |
| PCB Class | HVC-SJROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HAL-JO-0 PRG | 128 KB | FB26FF02 | 1 |
| CHR0 | HAL-JO-0 CHR | 32 KB | 45B925A9 | 1 |
| N/A | ROMs Combined | 160 KB | 8DCD9486 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8753 EX | 8753 | |
| CHR | Ricoh | RP23256E 2038 | Mask ROM 32 KB | DIP-28 | 8A3 A5 | 8803 | |
| MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8749 A | 8749 | |
| W-RAM | Sharp | LH5264T-L | SRAM 8 KB | DIP-28 | 8804 1 Y | 8804 |
