Release Info
| Catalog ID | HVC-JM |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | May 21, 1993 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

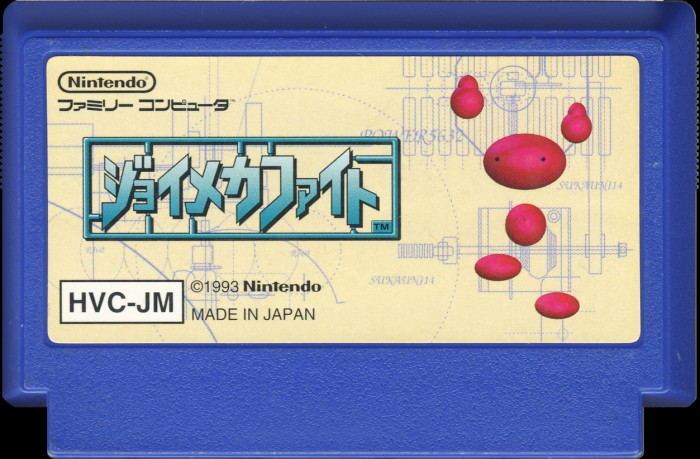

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-JM |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |
PCB Properties
| Name | HVC-TKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9317 - 9318 (2) |
| Est First Run | April 1993 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-JM-0 PRG | 256 KB | 6DAAA704 | 2 |
| CHR0 | HVC-JM-0 CHR | 256 KB | F15EC6E5 | 2 |
| N/A | ROMs Combined | 512 KB | 708EA2BE | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH532J 3S | Mask ROM 256 KB | DIP-32 | 9318 E | 9318 | |
| U2 CHR | Sharp | LH532J 3Y | Mask ROM 256 KB | DIP-32 | 9318 D | 9318 | |
| U3 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9312 EP003 | 9312 | |
| U4 W-RAM | Motorola | MCM60L64P12 | SRAM 8 KB | DIP-28 | 9301 HCK | 9301 |
