Release Info
| Catalog ID | BAP-X6 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 8, 1990 |
| Publisher | Banpresto |
| Developer | |
| Players | 1 |
| Peripherals | Famicom Controller |

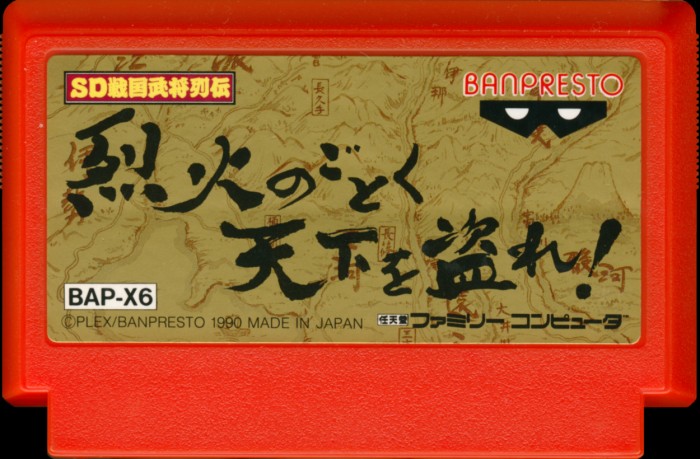

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Red |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | BAP-X6 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

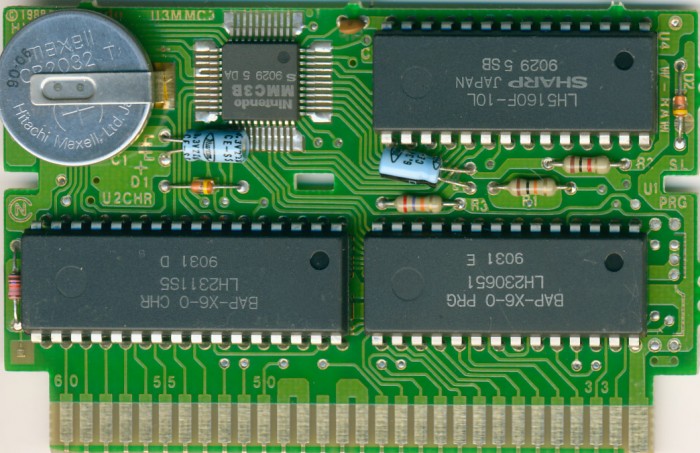

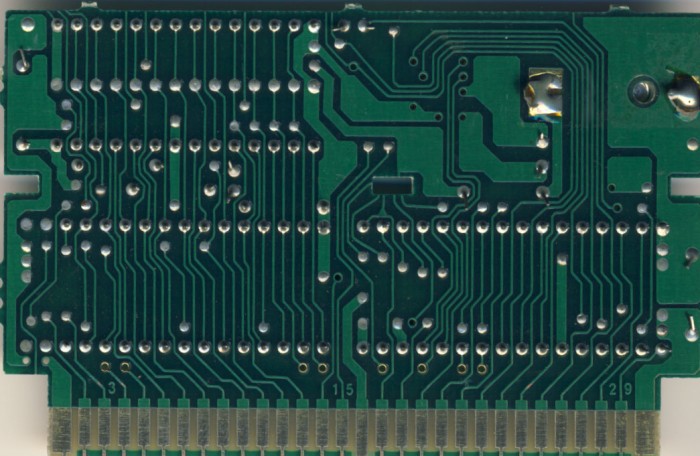

PCB Properties
| Name | HVC-TKROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9031 |
| Est First Run | August 1990 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BAP-X6-0 PRG | 128 KB | 1C3A73F0 | 1 |
| CHR0 | BAP-X6-0 CHR | 128 KB | 6F24F4A5 | 1 |
| N/A | ROMs Combined | 256 KB | 8D26FDEA | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2306 51 | Mask ROM 128 KB | DIP-28 | 9031 E | 9031 | |
| U2 CHR | Sharp | LH2311 S5 | Mask ROM 128 KB | DIP-32 | 9031 D | 9031 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9029 5 DA | 9029 | |
| U4 W-RAM | Sharp | LH5160F-10L | SRAM 8 KB | DIP-28 | 9029 5 SB | 9029 |
