Release Info
| Catalog ID | TFC-SKB-6400-39 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 2, 1991 |
| Publisher | Taito |
| Developer | NMK |
| Players | 1 |
| Peripherals | Famicom Controller |

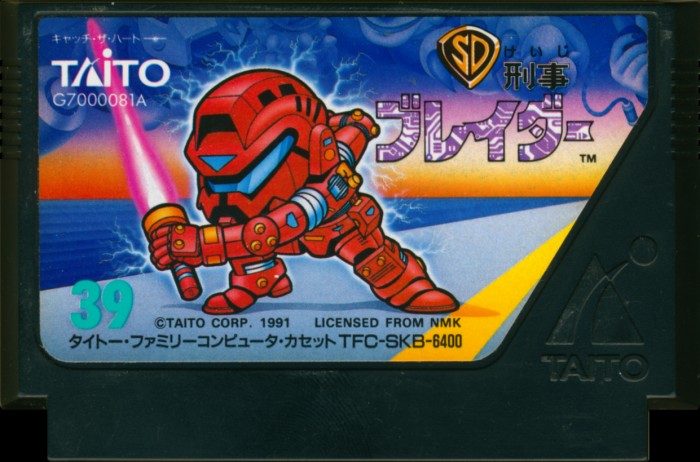

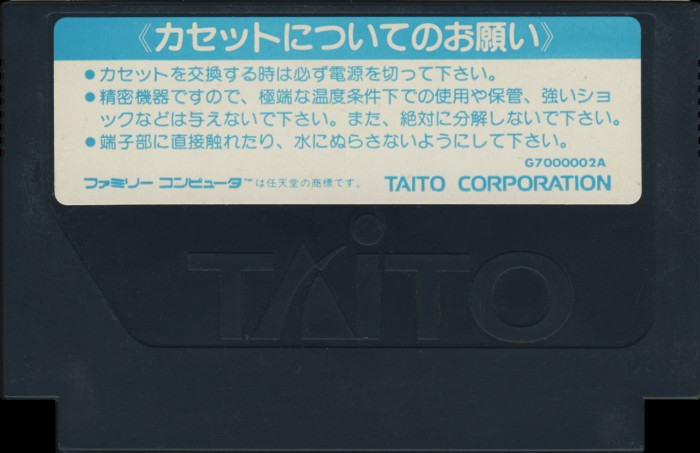

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Beveled Label / Logo 3 |
| Embossed Text | |
| Front Label ID | TFC-SKB-6400 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

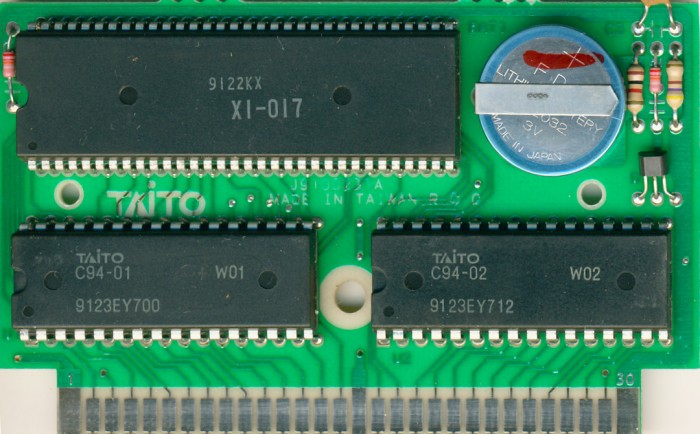

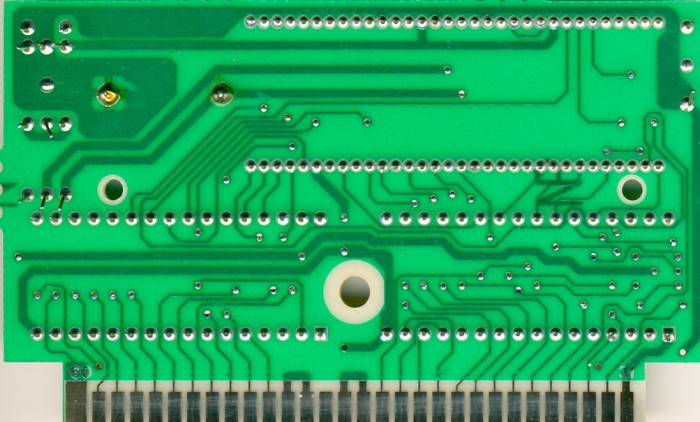

PCB Properties
| Name | J9100231A |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 9123 |
| Est First Run | June 1991 |
| PCB Class | TAITO-X1-017 |
| iNES Mapper | 82 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | X1-017 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | C94-01 | 128 KB | EE711AFB | 1 |
| CHR0 | C94-02 | 128 KB | 1E234045 | 1 |
| N/A | ROMs Combined | 256 KB | 05F04EAC | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 9123 EY700 | 9123 | |
| U2 | NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 9123 EY712 | 9123 | |
| U3 | NEC | X1-017 | Taito X1-017 | DIP-64 | 9122 KX | 9122 |
