Release Info
| Catalog ID | CDR-ST-81024 |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1991 |
| Publisher | Color Dreams |
| Developer | Color Dreams |
| Players | 1 |
| Peripherals | NES Controller |

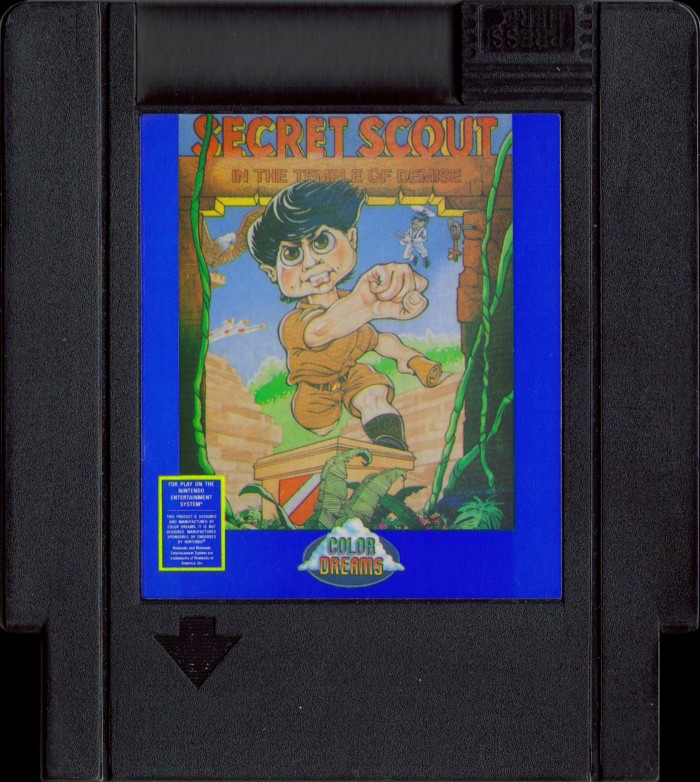

Cart Properties
| Cart Producer | Color Dreams |
|---|---|
| Color | Black |
| Form Factor | Inset Grip |

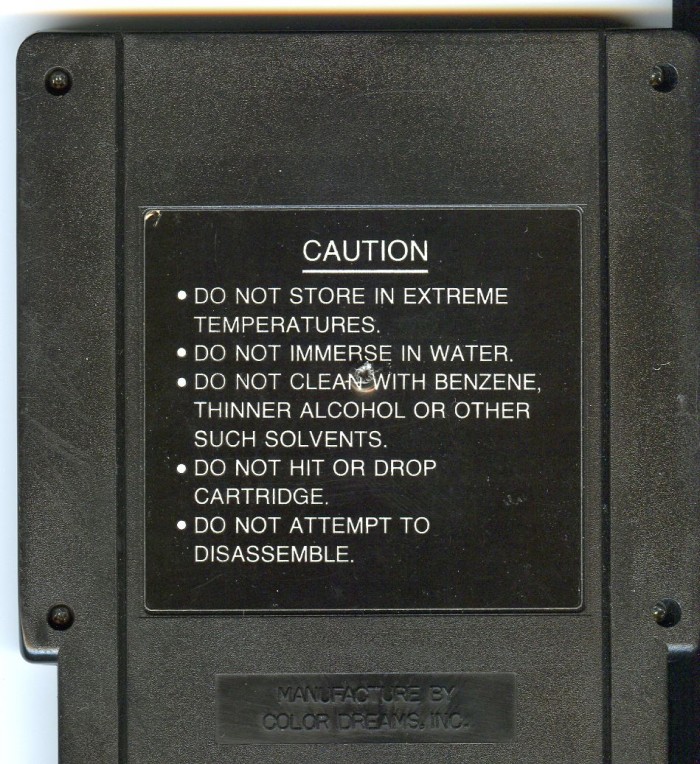

| Embossed Text | Manufacture by Color Dreams, Inc. |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

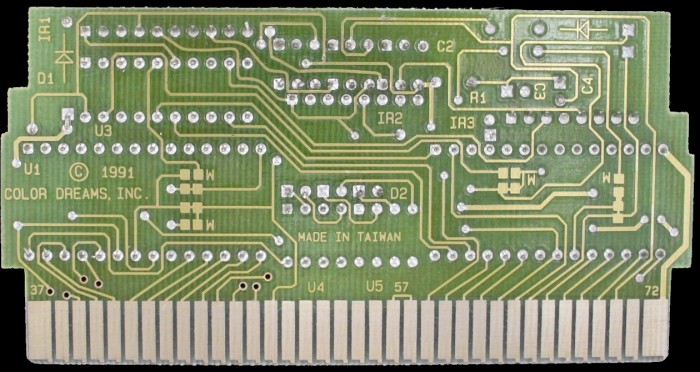

PCB Properties
| Name | UNK-COLORDREAMS-REVC |
|---|---|
| PCB Producer | Color Dreams |
| Manufacturer | BTC |
| Mfg Range | 9141 |
| Est First Run | October 1991 |
| PCB Class | COLORDREAMS-74*377 |
| iNES Mapper | 11 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 7660 |
| Hardware | 74xx377 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SECRET SCOUT 512K PRG | 64 KB | 50734772 | 1 |
| CHR0 | SECRET SCOUT 512K VID. | 64 KB | C1DE9C94 | 1 |
| N/A | ROMs Combined | 128 KB | 973BBF75 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | IMP | IM23512 | Mask ROM 64 KB | DIP-28 | 9134 JWF | 9134 | |
| U2 | IMP | IM23512 | Mask ROM 64 KB | DIP-28 | 9134 JGF | 9134 | |
| U3 | Signetics | 74LS377N | 74-377 Series | DIP-20 | 9118 VD | 9118 | FJP5881 |
| U4 | Teledyne | TC7660CPA | 7660 DC Charge Pump | DIP-8 | 9141 EH | 9141 |
