Release Info
| Catalog ID | UNR-S4-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Vic Tokai |
| Developer | Vic Tokai |
| Players | 1 |
| Peripherals | NES Controller |

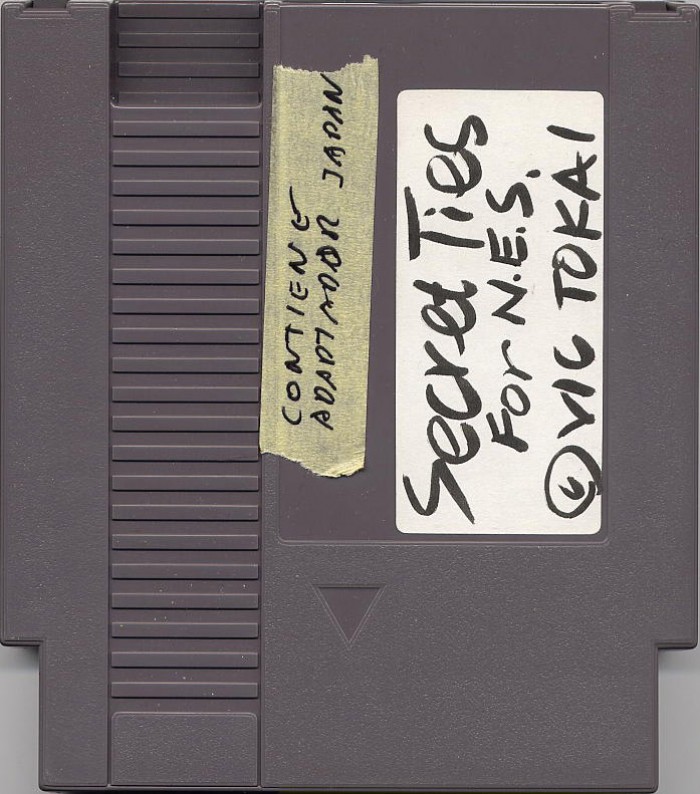

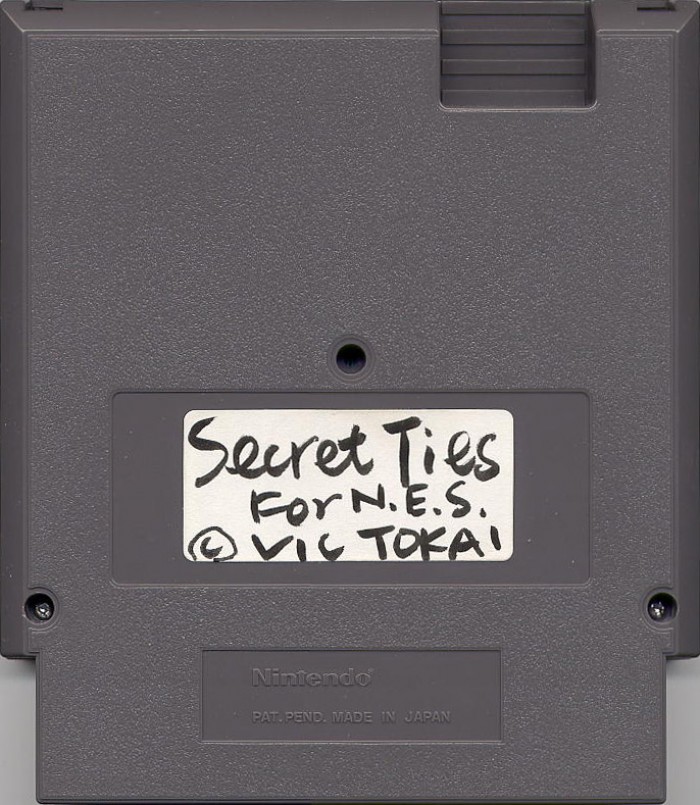

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

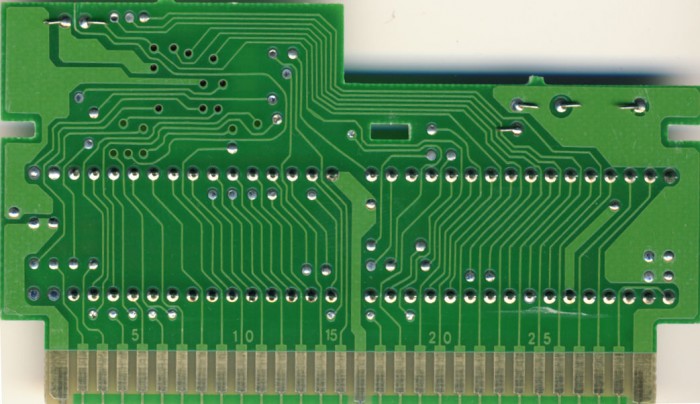

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SECRET TIES PRG | 128 KB | D9F58221 | 1 |
| CHR0 | SECRET TIES CHR | 128 KB | 0E7E78DA | 1 |
| N/A | ROMs Combined | 256 KB | B4801882 | 1 |

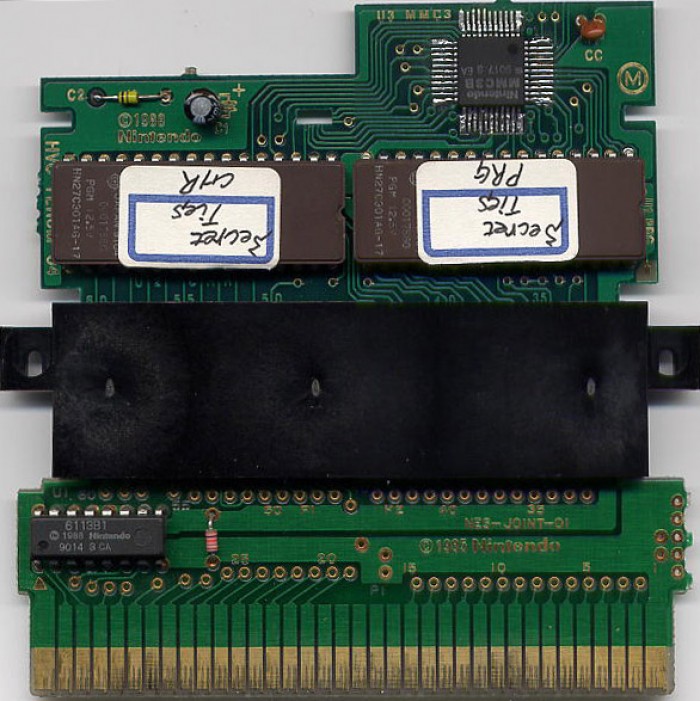

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Hitachi | HN27C301AG-17 | UV EPROM 128 KB | DIP-32 | |||
| U1 | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9014 3 CA | 9014 | |
| U2 CHR | Hitachi | HN27C301AG-17 | UV EPROM 128 KB | DIP-32 | 9104 | 9104 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9017 3 EA | 9017 |
