Release Info
| Catalog ID |
SFL-NS |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
May 26, 1989 |
| Publisher |
Sofel |
| Developer |
Sofel |
| Players |
2 |
| Peripherals |
Famicom Controller |

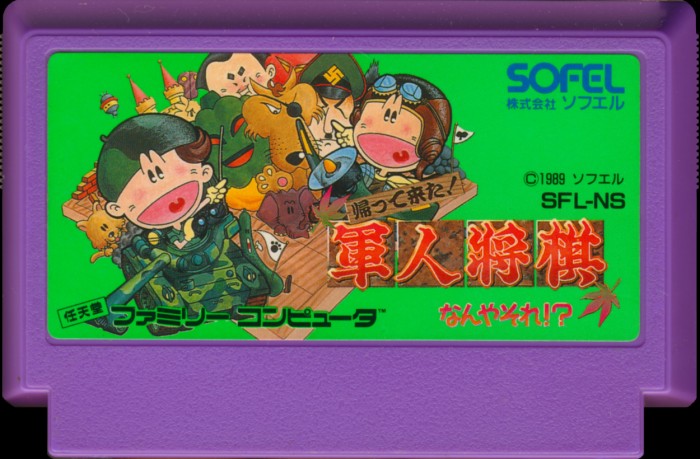

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Violet |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
SFL-NS |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-SGROM-03 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8919 |
| Est First Run |
May 1989 |
| PCB Class |
HVC-SGROM |
| iNES Mapper |
1 |
| Mirroring |
Mapper Ctrl |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC1A |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
SFL-NS-0 PRG |
128 KB |
E74AA15A |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
Sharp |
LH2307
1L
|
Mask ROM
128 KB
|
DIP-28 |
8919
E
|
8919 |
|
| U2 CHR |
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
8916
M5
|
8916 |
|
| U3 MMC1 |
Sharp |
MMC1A
|
Nintendo MMC1
|
DIP-24 |
8918
3 A
|
8918 |
|
Additional Images
PCB Images
