Release Info
| Catalog ID | NES-3K-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | January 1991 |
| Publisher | HAL Laboratory |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | NES Controller |

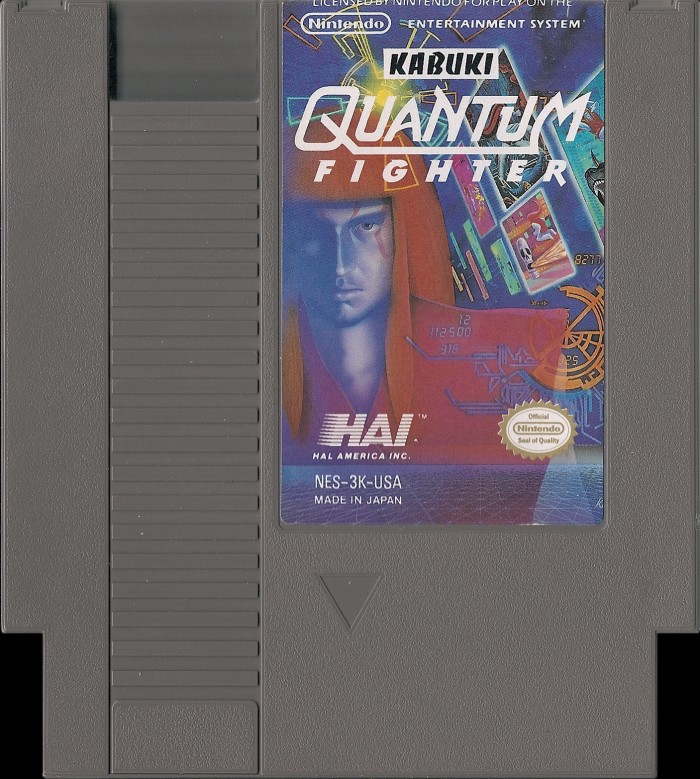

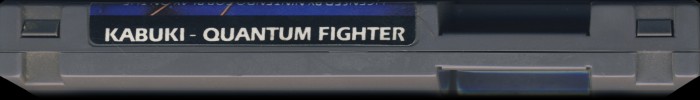

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-3K-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 07 |

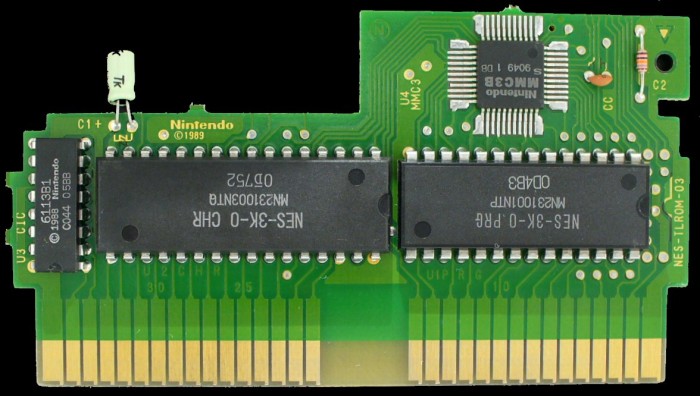

PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9050 |
| Est First Run | December 1990 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-3K-0 PRG | 128 KB | BFE0E37F | 1 |
| CHR0 | NES-3K-0 CHR | 128 KB | 7F91AAFA | 1 |
| N/A | ROMs Combined | 256 KB | 7474AC92 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NTP | Mask ROM 128 KB | DIP-28 | 0D4 B3 | 9050 | |
| U2 CHR | Panasonic | MN231003 NTQ | Mask ROM 128 KB | DIP-32 | 0 52 | 9049 | |
| U3 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 044 C | 9044 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9049 1 DB | 9049 |
