Release Info
| Catalog ID | NAT-JL |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 10, 1990 |
| Publisher | Natsume |
| Developer | Natsume |
| Players | 2 |
| Peripherals | Famicom Controller |

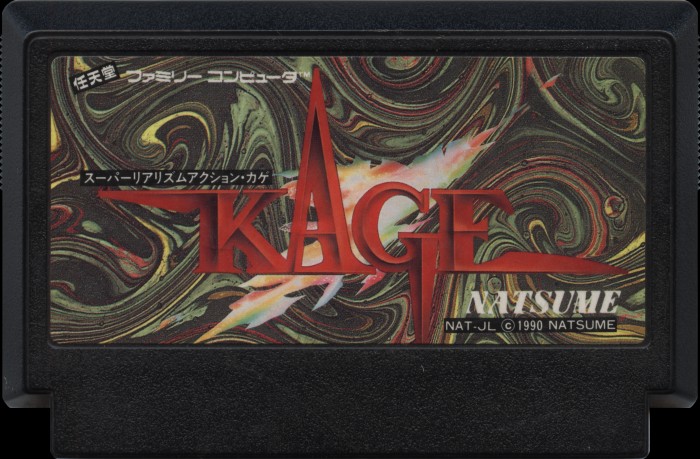

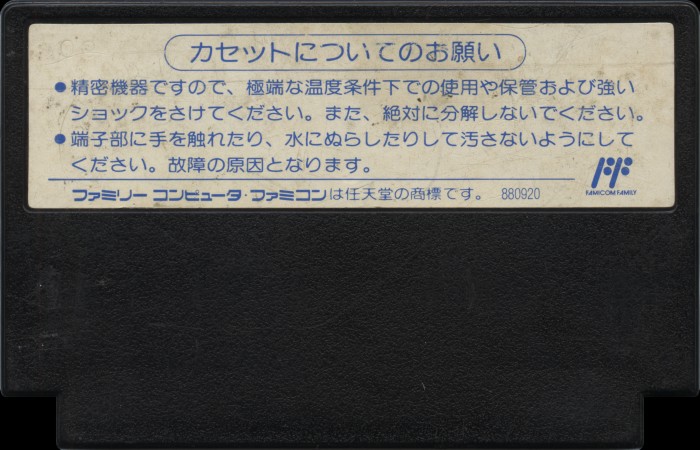

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | NAT-JL |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

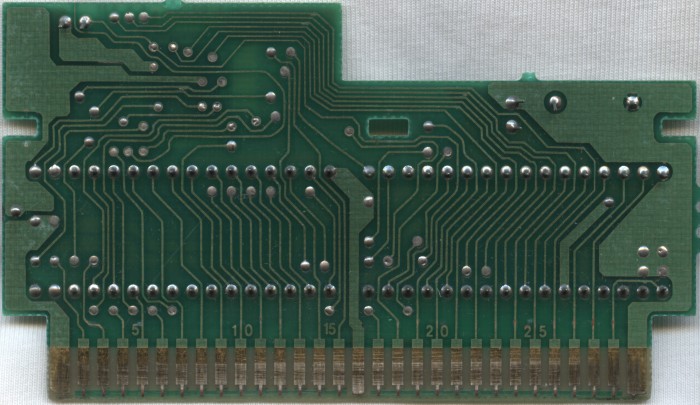

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9024 |
| Est First Run | June 1990 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAT-JL-0 PRG | 128 KB | 21490E20 | 0 |
| CHR0 | NAT-JL-0 CHR | 128 KB | 98944590 | 0 |
| N/A | ROMs Combined | 256 KB | 98977591 | 0 |

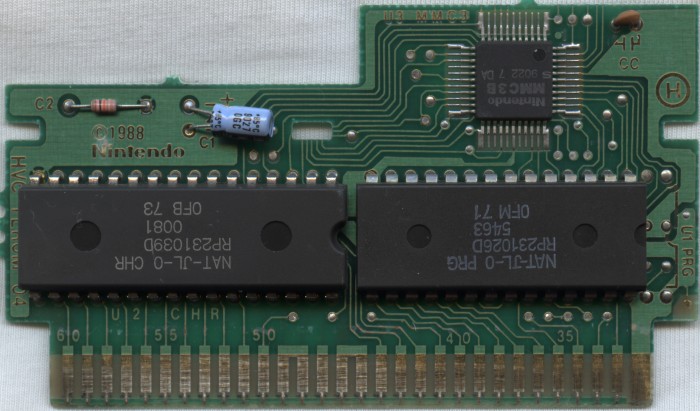

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5463 | Mask ROM 128 KB | DIP-28 | 0FM 71 | 9024 | |
| U2 CHR | Ricoh | RP231039D 0081 | Mask ROM 128 KB | DIP-32 | 0FB 73 | 9023 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9022 7 DA | 9022 |
