Release Info
| Catalog ID | TGN-001-RB |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1987 |
| Publisher | Tengen |
| Developer | Namco |
| Players | 2 |
| Peripherals | NES Controller |

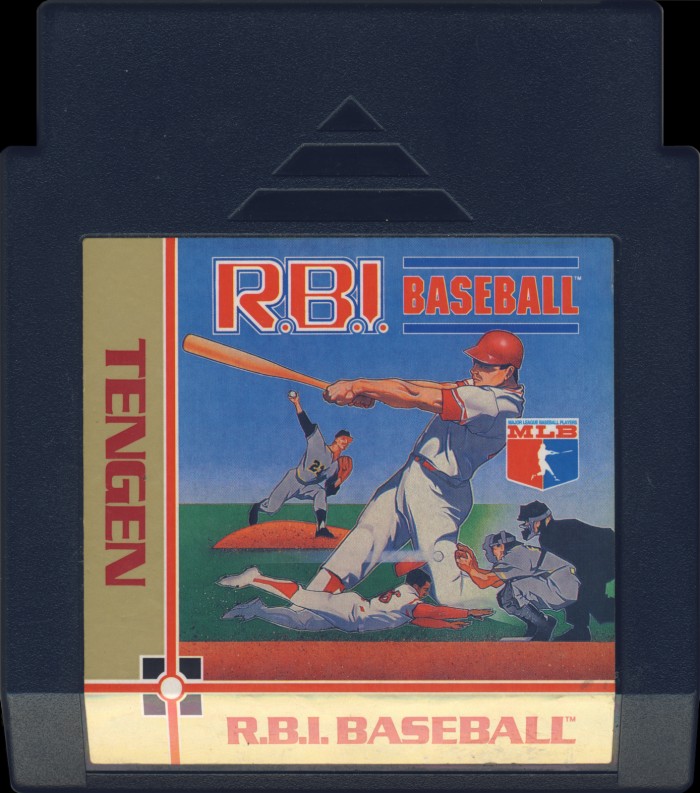

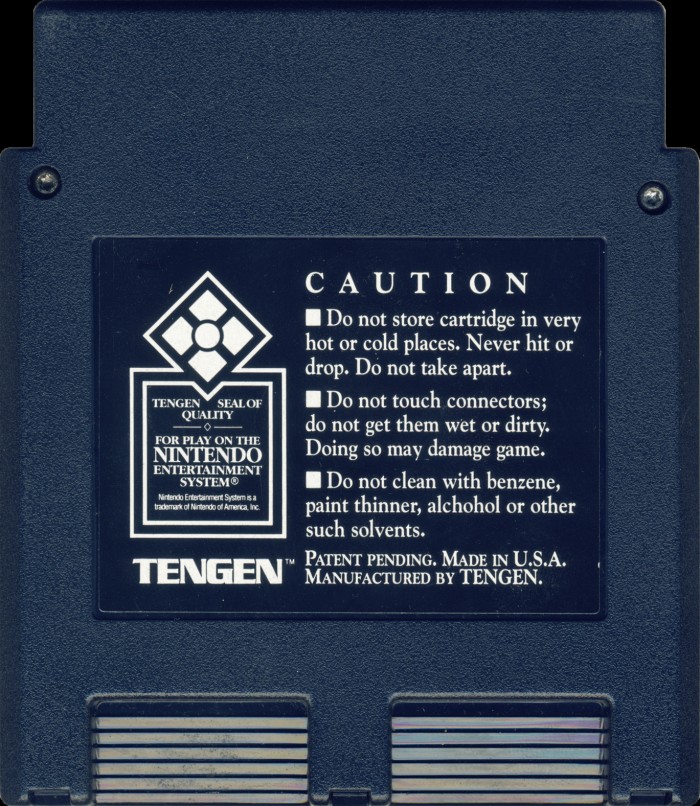

Cart Properties
| Cart Producer | Tengen |
|---|---|
| Color | Black |
| Form Factor | Original |
| Embossed Text | |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

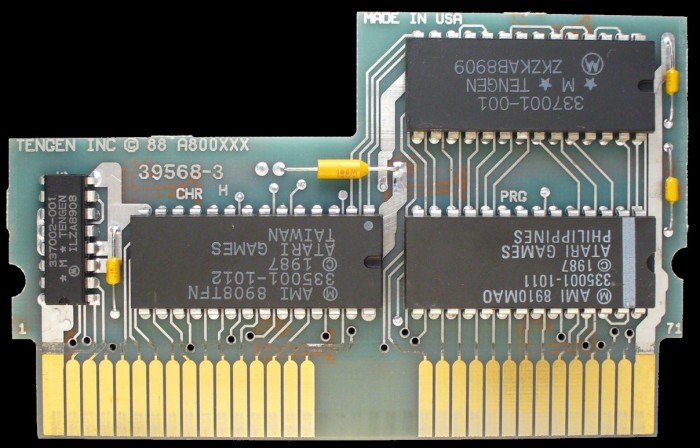

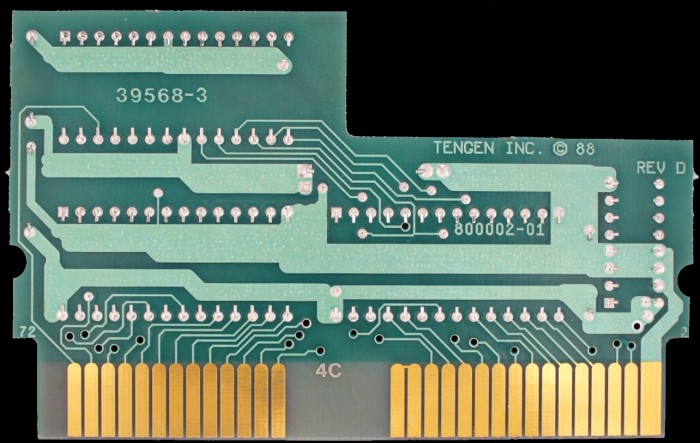

PCB Properties
| Name | 800002-01 REV D |
|---|---|
| PCB Producer | Tengen |
| Manufacturer | Key Tronic |
| Mfg Range | 8902 - 8916 (3) |
| Est First Run | January 1989 |
| PCB Class | TENGEN-800002 |
| iNES Mapper | 206 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 337002 |
| Hardware | 337001 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 335001-1011 | 64 KB | 203D32B5 | 4 |
| CHR0 | 335001-1012 | 32 KB | C36B03AE | 7 |
| N/A | ROMs Combined | 96 KB | 2E326A1D | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | AMI | AM23512 | Mask ROM 64 KB | DIP-28 | 8910 MAO | 8910 | |
| CHR | AMI | AM23256 | Mask ROM 32 KB | DIP-28 | 8908 TFN | 8908 | |
| 337002 | Motorola | 337002-001 | Tengen CIC | DIP-16 | 8908 ILZA | 8908 | |
| 337001 | Motorola | 337001-001 | Tengen MIMIC-1 | DIP-28 | 8909 ZKZKAB | 8909 |
