Release Info
| Catalog ID | NAM-QT-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | June 27, 1989 |
| Publisher | Namco |
| Developer | Game Freak |
| Players | 2 |
| Peripherals | Famicom Controller |

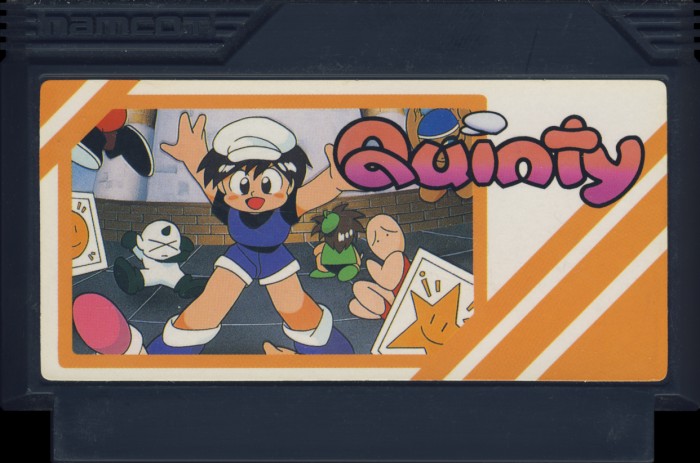

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

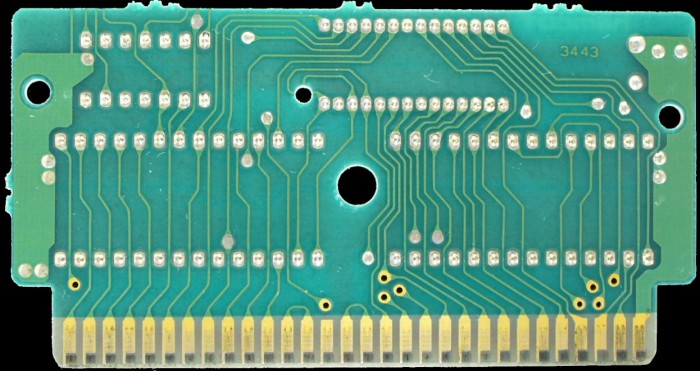

PCB Properties
| Name | 3443 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8922 - 8923 (2) |
| Est First Run | June 1989 |
| PCB Class | NAMCOT-3443 |
| iNES Mapper | 88 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 118, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT QT PRG | 128 KB | D9803A35 | 2 |
| CHR0 | NAMCOT QT CHR | 128 KB | D275F70D | 2 |
| N/A | ROMs Combined | 256 KB | 13DA2122 | 2 |

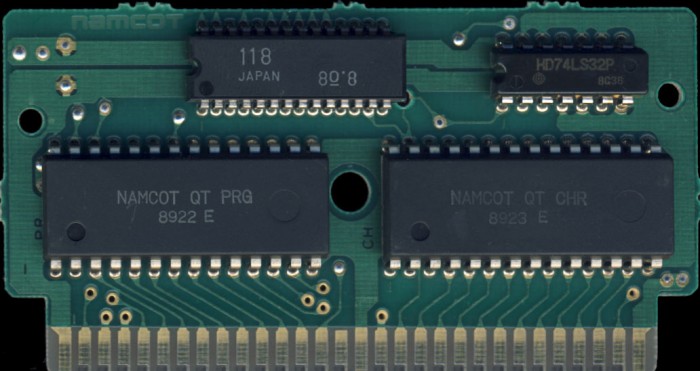

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8922 E | 8922 | |
| CH | Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8923 E | 8923 | |
| Panasonic | 118 | Namcot 118 | DIP-28 | 8 | 8843 | ||
| Hitachi | HD74LS32P | 74-32 Series | DIP-14 | 8G3 6 | 8829 |
