Release Info
| Catalog ID | NES-RS-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | 1988 |
| Publisher | Tengen |
| Developer | Namco |
| Players | 2 |
| Peripherals | NES Controller |

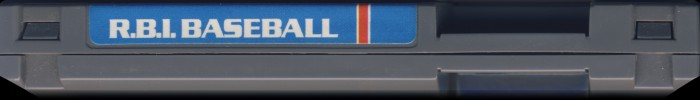

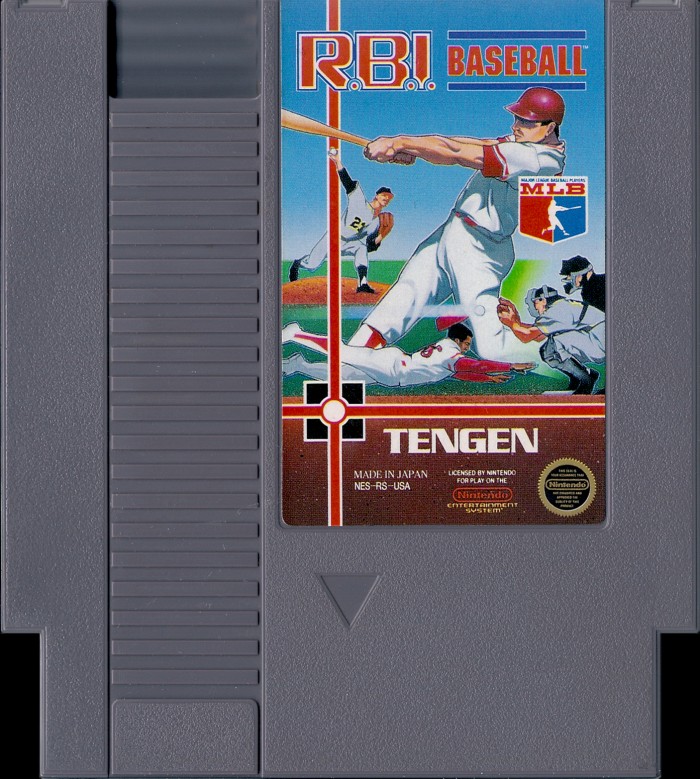

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-RS-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 11 |

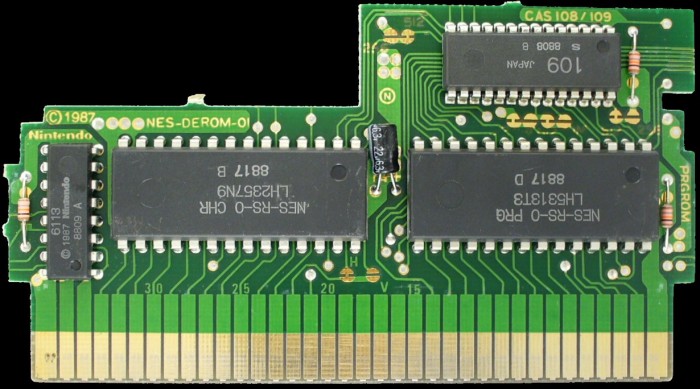

PCB Properties
| Name | NES-DEROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8817 |
| Est First Run | April 1988 |
| PCB Class | NES-DEROM |
| iNES Mapper | 206 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113 |
| Hardware | 109 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-RS-0 PRG | 64 KB | 42607A97 | 3 |
| CHR0 | NES-RS-0 CHR | 32 KB | C36B03AE | 7 |
| N/A | ROMs Combined | 96 KB | 3C5C81D4 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH5313 T3 | Mask ROM 64 KB | DIP-28 | 8817 D | 8817 | |
| CHR ROM | Sharp | LH2357 N9 | Mask ROM 32 KB | DIP-28 | 8817 B | 8817 | |
| CIC | Sharp | 6113 | Nintendo CIC | DIP-16 | 8809 A | 8809 | |
| CAS 108/109 | Sharp | 109 | Namcot 109 | DIP-28 | 8808 B | 8808 |
