Release Info
| Catalog ID | NAM-DN-5800 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | July 14, 1989 |
| Publisher | Namco |
| Developer | Data East |
| Players | 2 |
| Peripherals | Famicom Controller |

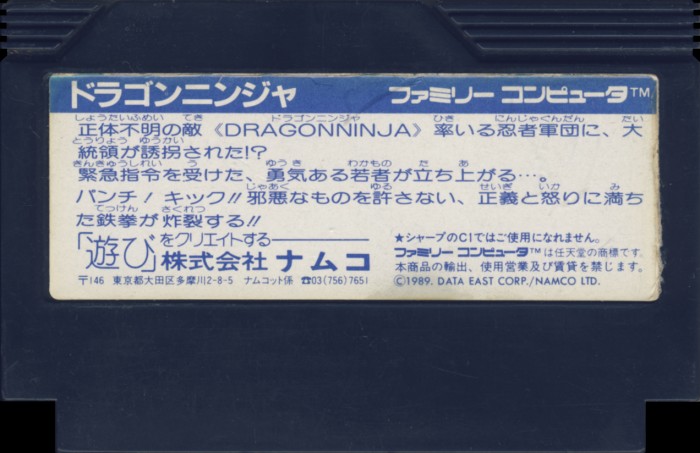

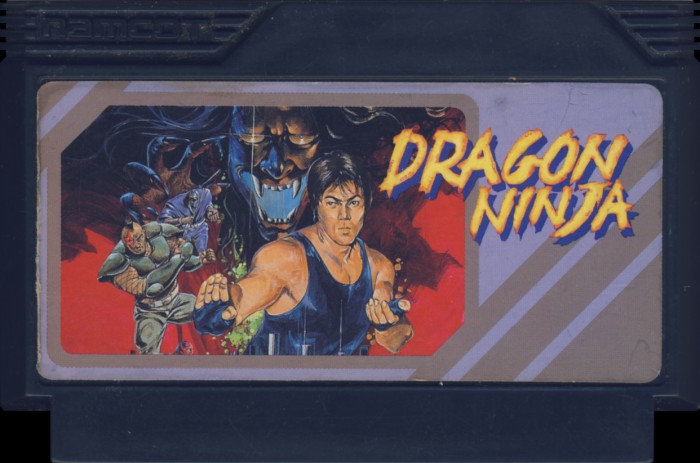

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties

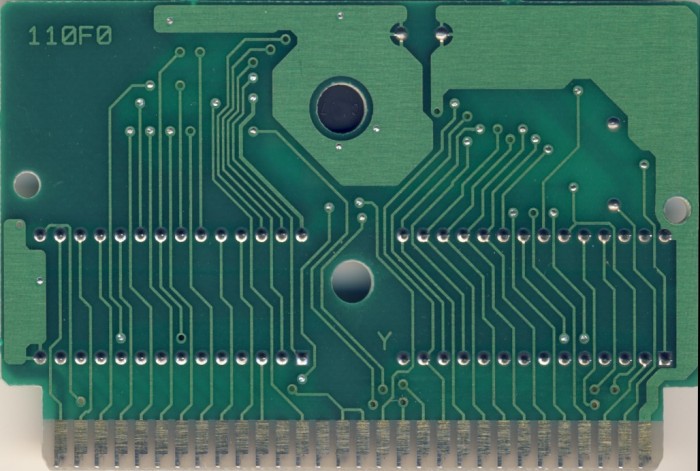

| Name | 110F0 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8923 |
| Est First Run | June 1989 |
| PCB Class | NAMCOT-163 |
| iNES Mapper | 19 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 163 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOTDNPR | 128 KB | FBA98643 | 1 |
| CHR0 | NAMCOTDNCH | 128 KB | 1C4518A4 | 1 |
| N/A | ROMs Combined | 256 KB | 2A7D3ADF | 1 |

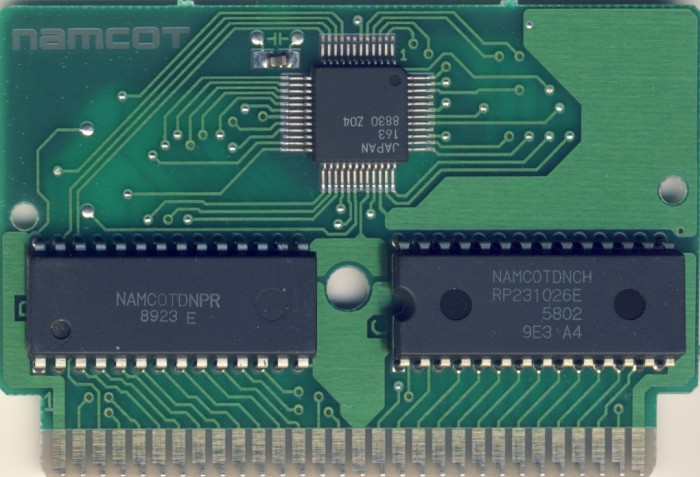

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8923 E | 8923 | |
| C | Ricoh | RP231026E 5802 | Mask ROM 128 KB | DIP-28 | 9E3 A4 | 8920 | |
| Fujitsu | 163 | Namcot 163 | TQFP-48 | 8830 Z04 | 8830 |
