Release Info
| Catalog ID | NES-1D-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | January 1992 |
| Publisher | Sofel |
| Developer | Natsume |
| Players | 1 |
| Peripherals | NES Controller |

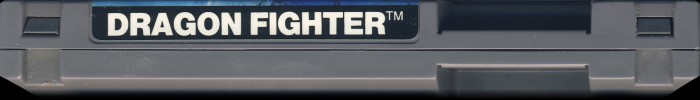

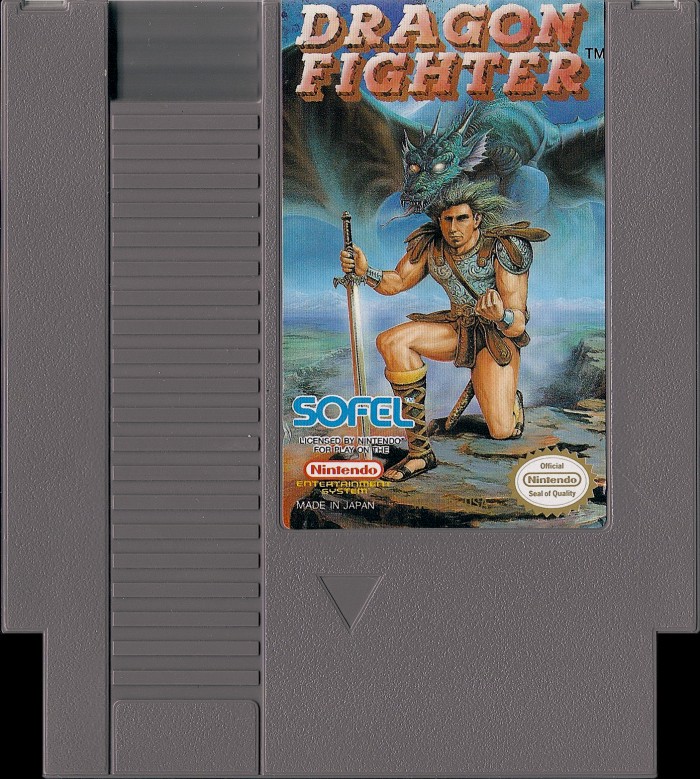

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-1D-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 05 |

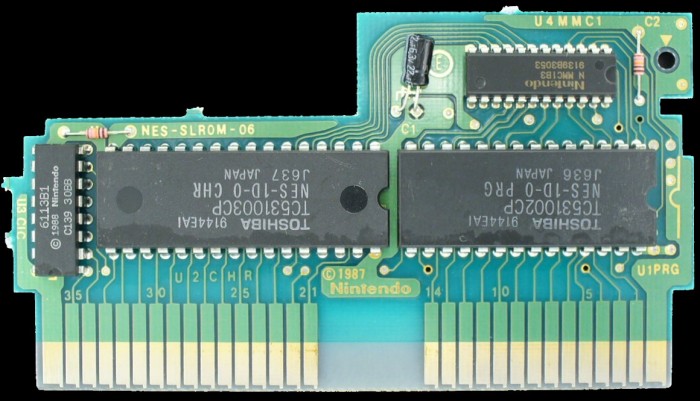

PCB Properties
| Name | NES-SLROM-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9144 |
| Est First Run | November 1991 |
| PCB Class | NES-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-1D-0 PRG | 128 KB | 5F807010 | 1 |
| CHR0 | NES-1D-0 CHR | 128 KB | 326F47F3 | 1 |
| N/A | ROMs Combined | 256 KB | A166548F | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Toshiba | TC531002CP J636 | Mask ROM 128 KB | DIP-28 | 9144 EAI | 9144 | |
| U2 CHR | Toshiba | TC531003CP J637 | Mask ROM 128 KB | DIP-32 | 9144 EAI | 9144 | |
| U3 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 139 C | 9139 | |
| U4 MMC1 | NEC | MMC1B3 | Nintendo MMC1 | DIP-24 | 9139 B3053 | 9139 |
