Release Info
| Catalog ID | NES-DP-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1988 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | NES Controller |

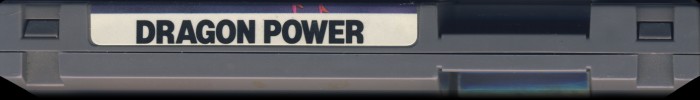

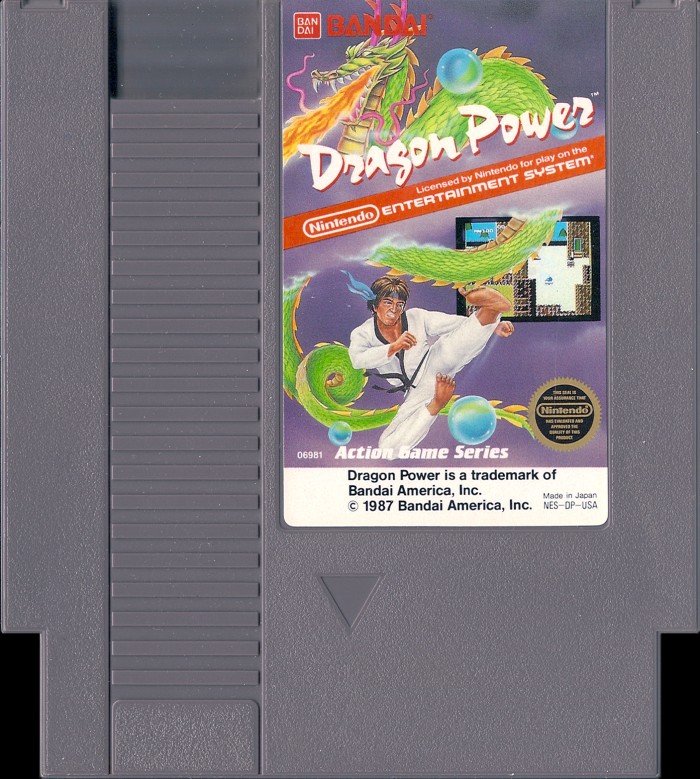

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-DP-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 12 |

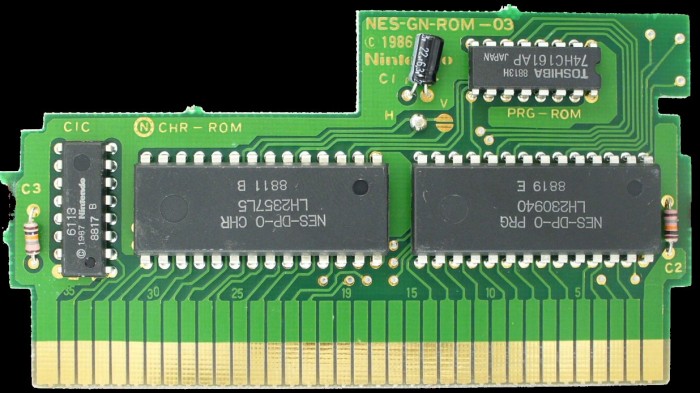

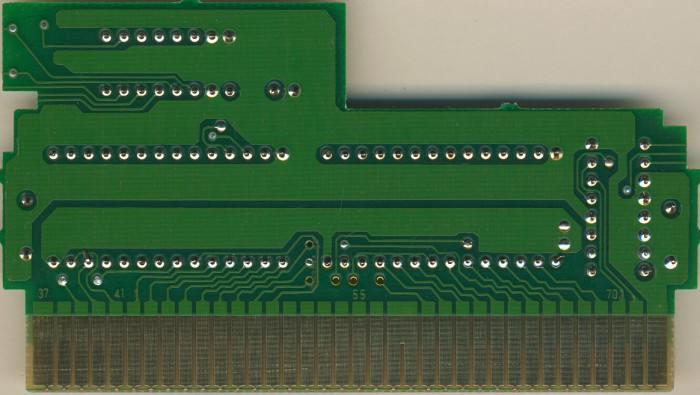

PCB Properties
| Name | NES-GN-ROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8819 |
| Est First Run | May 1988 |
| PCB Class | NES-GNROM |
| iNES Mapper | 66 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-DP-0 PRG | 128 KB | ECE525DD | 1 |
| CHR0 | NES-DP-0 CHR | 32 KB | 59F0FBAA | 1 |
| N/A | ROMs Combined | 160 KB | 811F06D9 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG-ROM | Sharp | LH2309 40 | Mask ROM 128 KB | DIP-28 | 8819 E | 8819 | |
| CHR-ROM | Sharp | LH2357 L5 | Mask ROM 32 KB | DIP-28 | 8811 B | 8811 | |
| CIC | Sharp | 6113 | Nintendo CIC | DIP-16 | 8817 B | 8817 | |
| LS161 | Toshiba | 74HC161AP | 74-161 Series | DIP-16 | 8813 H | 8813 |
