Release Info
| Catalog ID | KON-RC841 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | September 29, 1989 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | Famicom Controller |

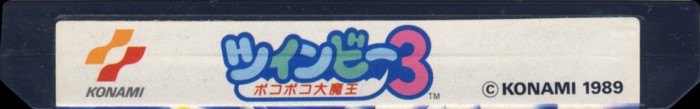

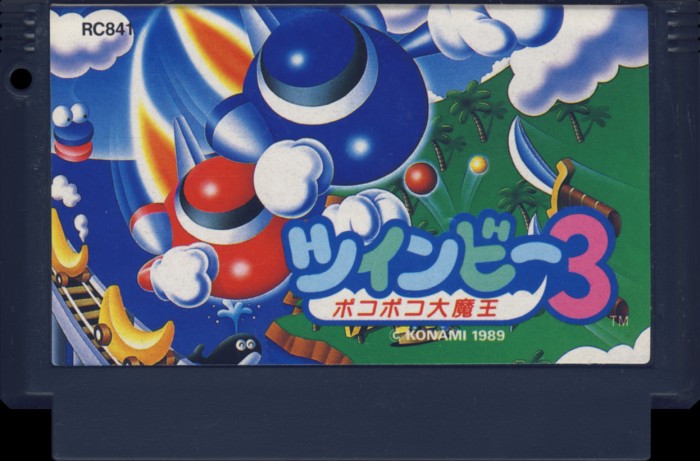

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC841 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

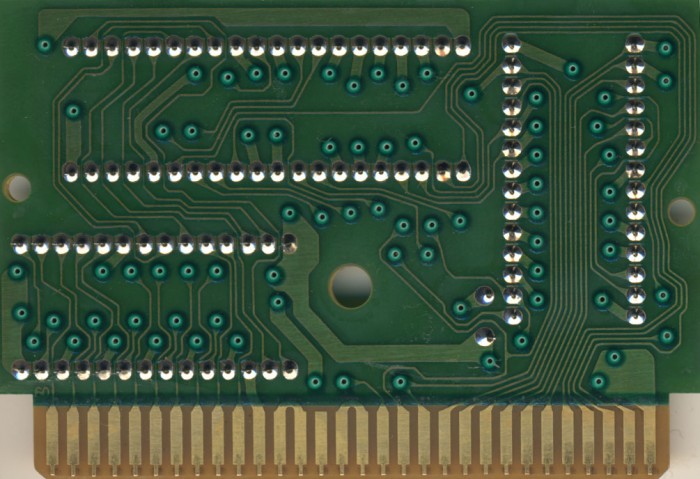

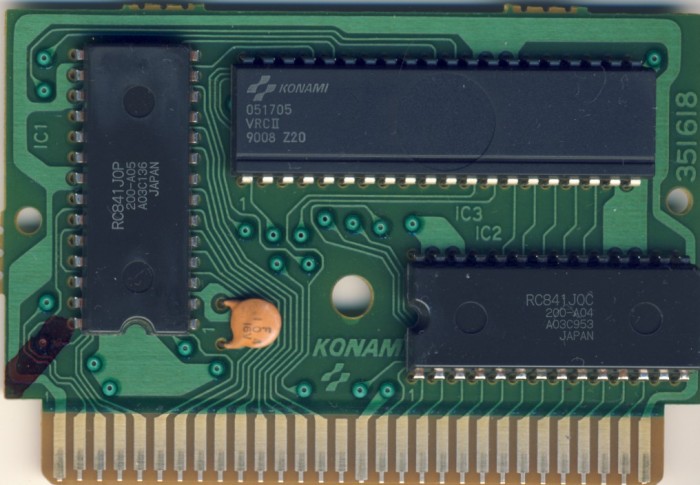

PCB Properties
| Name | 351618 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 9136 |
| Est First Run | September 1991 |
| PCB Class | KONAMI-VRC-2 |
| iNES Mapper | 22 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | VRC2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC841J0P | 128 KB | 7A508DBB | 1 |
| CHR0 | RC841J0C | 128 KB | 51B6F84A | 1 |
| N/A | ROMs Combined | 256 KB | D7FABAC1 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | __Unknown | 200 A05 | Mask ROM 128 KB | DIP-28 | 136 A03C | 9136 | |
| IC2 | __Unknown | 200 A04 | Mask ROM 128 KB | DIP-28 | 953 A03C | 8953 | |
| IC3 | Fujitsu | 051705 VRC II | Konami VRC II | DIP-40 | 9008 Z20 | 9008 |
