Release Info
| Catalog ID | KON-RC807 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | January 4, 1986 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | Famicom Controller |

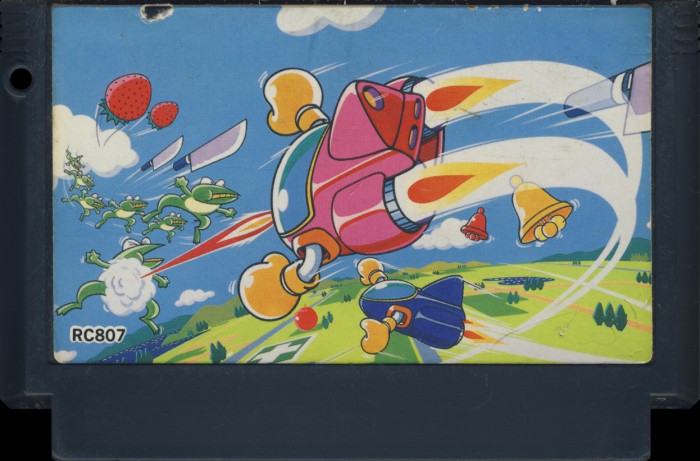

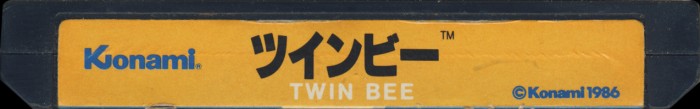

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC807 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

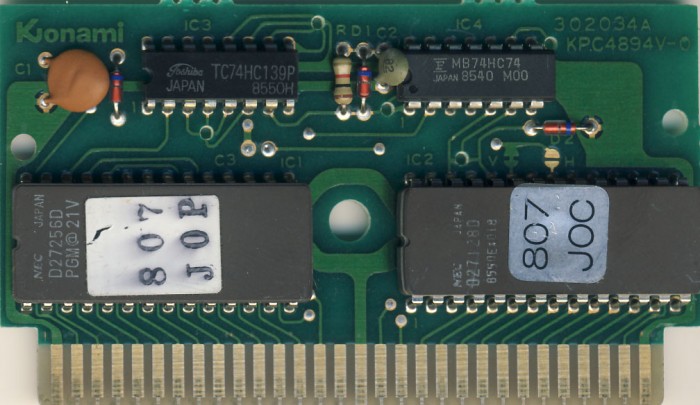

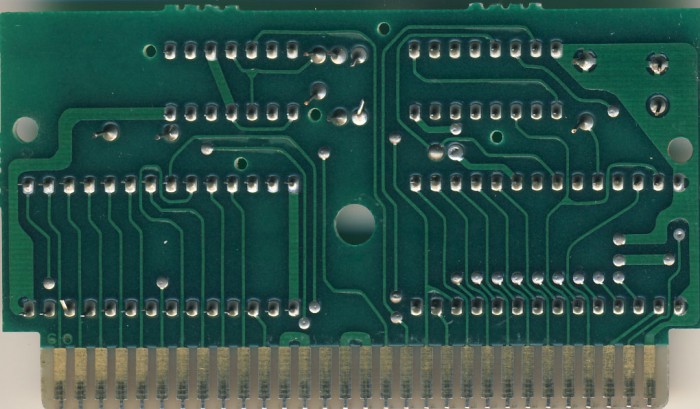

PCB Properties
| Name | 302034A |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8531 - 8550 (4) |
| Est First Run | August 1985 |
| PCB Class | KONAMI-74*139/74 |
| iNES Mapper | 87 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx74 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 807J0P | 32 KB | 932A077A | 4 |
| CHR0 | 807J0C | 16 KB | EBF022EB | 4 |
| N/A | ROMs Combined | 48 KB | 985B1D05 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | NEC | D27256D | UV EPROM 32 KB | DIP-28 | 8549 KD005 | 8549 | |
| IC2 | NEC | D27128D | UV EPROM 16 KB | DIP-28 | 8550 EX018 | 8550 | |
| IC3 | Toshiba | TC74HC139P | 74-139 Series | DIP-16 | 8550 H | 8550 | |
| IC4 | Fujitsu | MB74HC74 | 74-74 Series | DIP-14 | 8540 M00 | 8540 |
