Release Info
| Catalog ID | UNR-UX-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Br?derbund |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | U-Force |

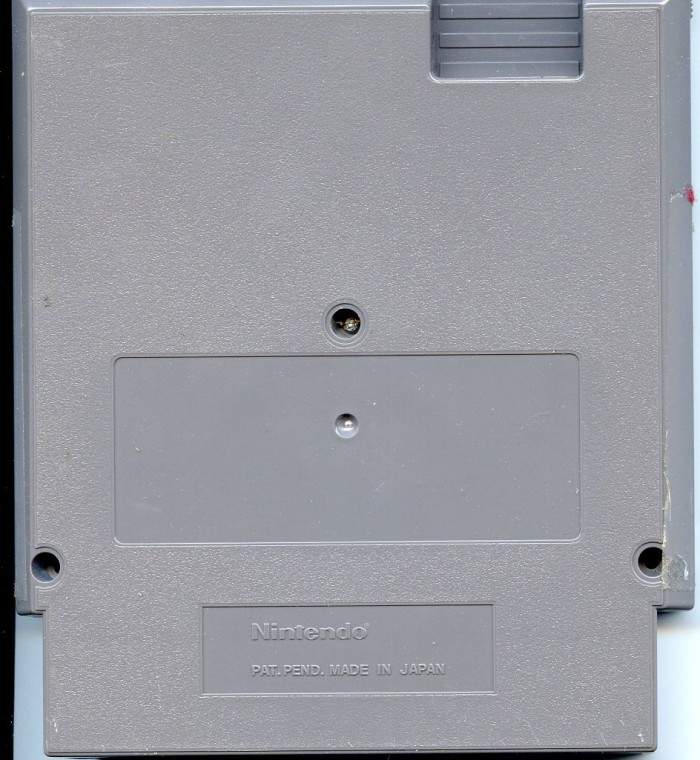

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |

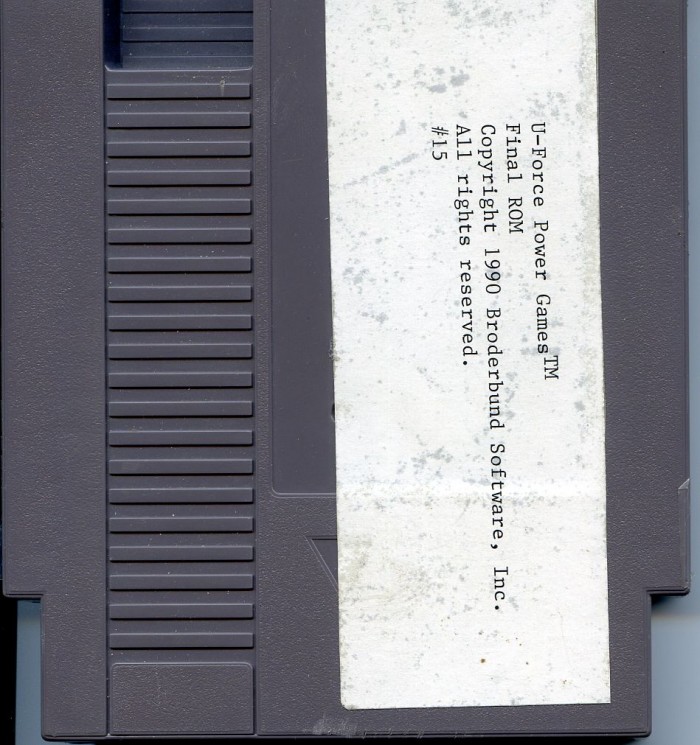

| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

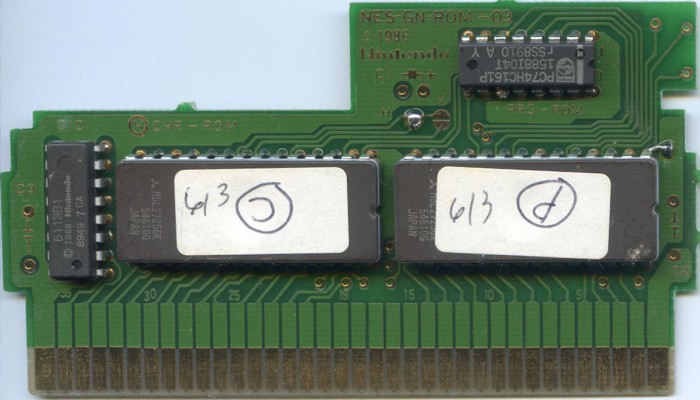

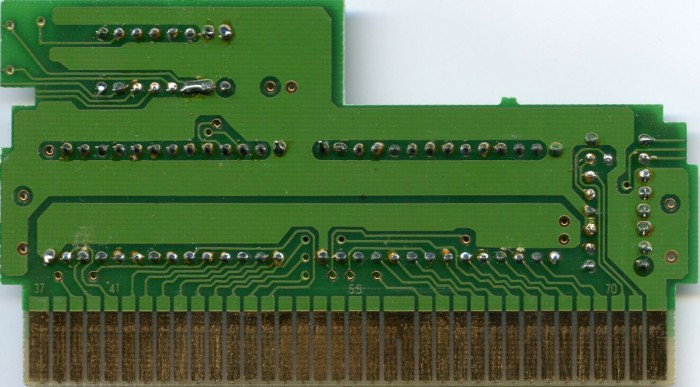

PCB Properties
| Name | NES-GN-ROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-GNROM |
| iNES Mapper | 66 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 6/3 P | 32 KB | 7A039FEC | 1 |
| CHR0 | 6/3 C | 32 KB | 2C8C5C5C | 1 |
| N/A | ROMs Combined | 64 KB | B459EDC4 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG-ROM | Mitsubishi | M5L27256K | UV EPROM 32 KB | DIP-28 | 546 10G | 8546 | |
| CHR-ROM | Mitsubishi | M5L27256K | UV EPROM 32 KB | DIP-28 | 546 10G | 8546 | |
| CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8949 7 CA | 8949 | |
| LS161 | Phillips | PC74HC161P | 74-161 Series | DIP-16 | 8910 rSS | 8910 | 1588I04T |
