Release Info
| Catalog ID | NES-MT-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | August 1987 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

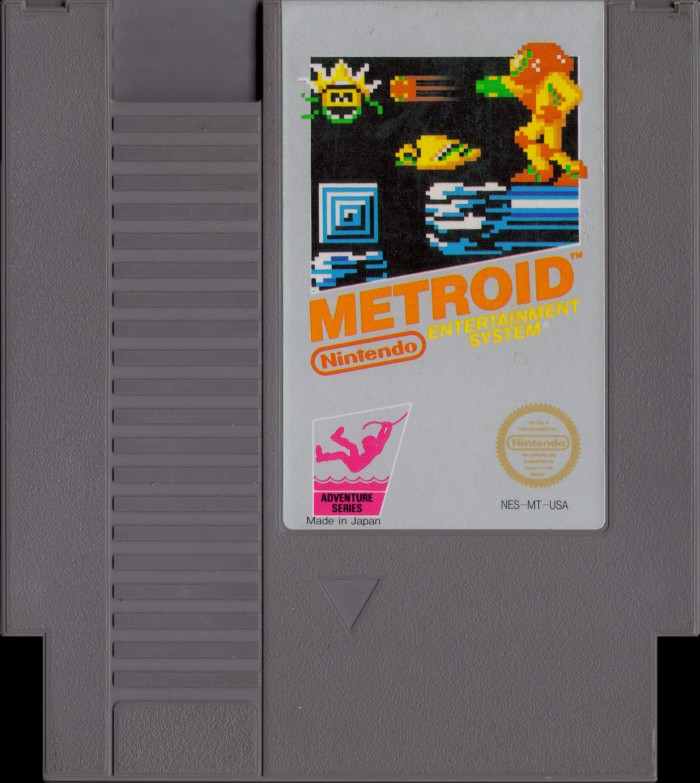

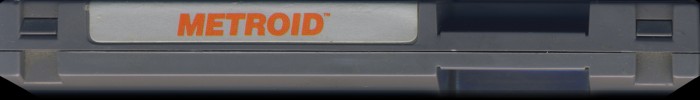

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-MT-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 01 |
PCB Properties
| Name | NES-SNROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8729 - 9232 (5) |
| Est First Run | July 1987 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 6113 |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-MT-0 PRG | 128 KB | 70080810 | 8 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2310 75 | Mask ROM 128 KB | DIP-28 | 8824 D | 8824 | |
| CHR | NEC | 64S20 | SRAM 8 KB | DIP-28 | 8821 B5 | 8821 | |
| Sharp | 6113 | Nintendo CIC | DIP-16 | 8819 B | 8819 | ||
| Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8824 3 A | 8824 | ||
| NEC | 64S20 | SRAM 8 KB | DIP-28 | 8821 B5 | 8821 |
