Release Info
| Catalog ID | NES-MT-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | January 15, 1988 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

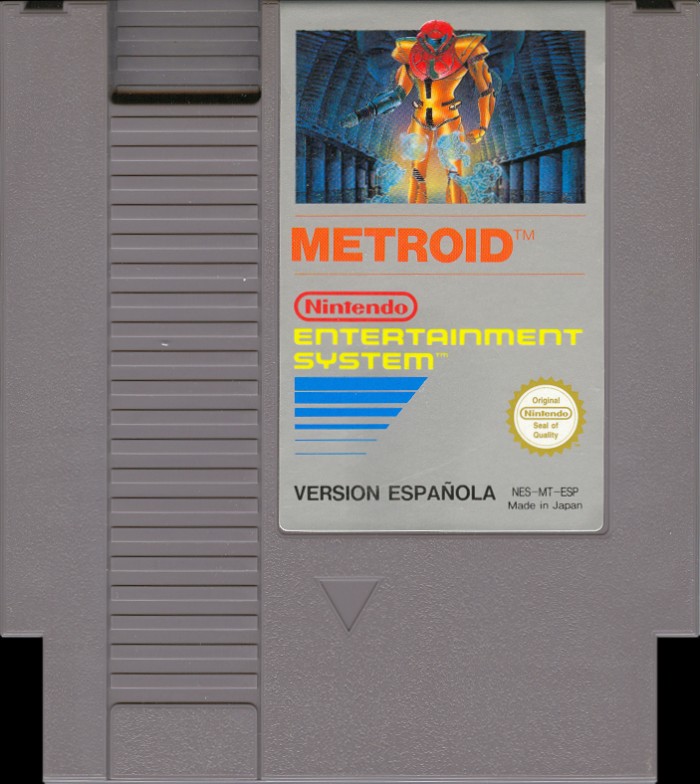

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-MT-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-SNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9037 - 9124 (2) |
| Est First Run | September 1990 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-MT-0 PRG | 128 KB | 7751588D | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 79 | Mask ROM 128 KB | DIP-28 | 9124 E | 9124 | |
| U2 CHR RAM | Phillips | FCB61C65L-70P | SRAM 8 KB | DIP-28 | 9118 ZSH | 9118 | 9E265NB |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | |||
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9124 3 AA | 9124 | |
| U5 W-RAM | Phillips | FCB61C65L-70P | SRAM 8 KB | DIP-28 | 9118 ZSH | 9118 | 9E260NB |
