Release Info
| Catalog ID | NES-MT-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | January 15, 1988 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

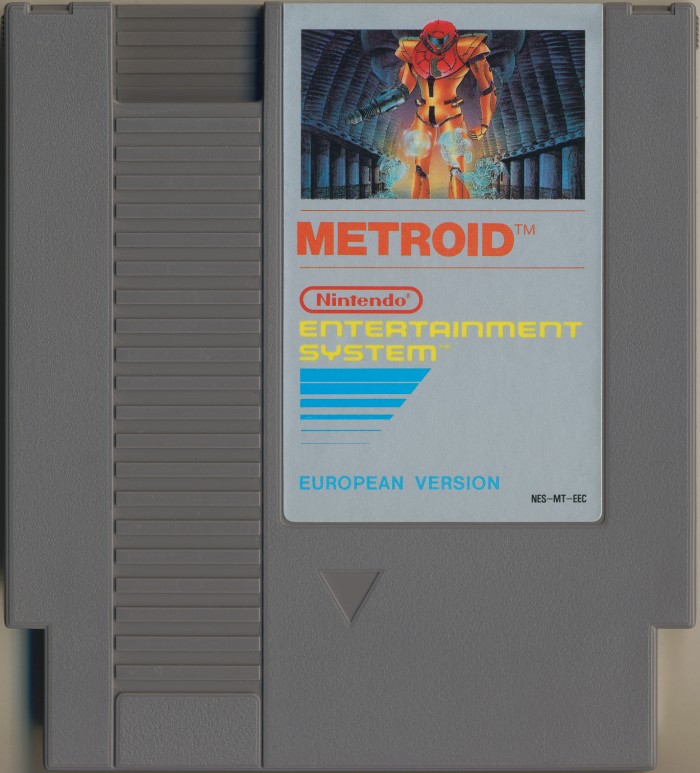

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-MT-EEC |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-SNROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8747 - 8934 (3) |
| Est First Run | November 1987 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-MT-0 PRG | 128 KB | 7751588D | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2310 6B | Mask ROM 128 KB | DIP-28 | 8824 D | 8824 | |
| CHR | Sharp | LH5164D3-L | SRAM 8 KB | DIP-28 | 8821 1 DA | 8821 | |
| Sharp | 3195A | Nintendo CIC | DIP-16 | 8744 A | 8744 | ||
| Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8822 1 A | 8822 | ||
| Sharp | LH5164D3-L | SRAM 8 KB | DIP-28 | 8809 3 D | 8809 |
